Preparing Connection Areas Of The Body For Installing The Windscreen Frame

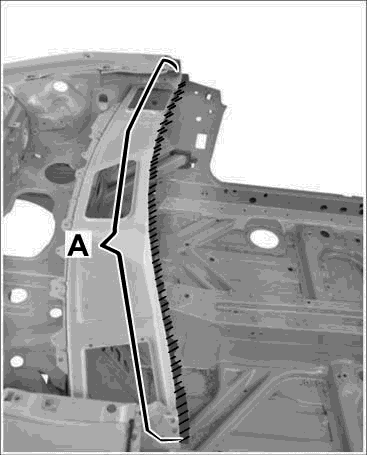

Fig 1: Preparing connection areas of the body for installing the windscreen frame
GP00011293Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked area -A-  using a hot-air gun or rotary brush. Grind the connecting flanges until bare. See Fig 1.

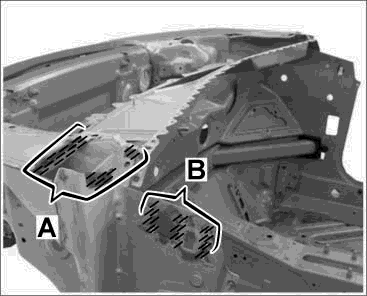

Fig 2: Preparing connection areas of the body for installing the windscreen frame
GP00011294Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Clean undersealing, adhesive residue and paint off the body connecting flanges at the left and right in the marked areas -A-  and -B-  using a hot-air gun or rotary brush. Grind the connecting flanges until bare. See Fig 2.

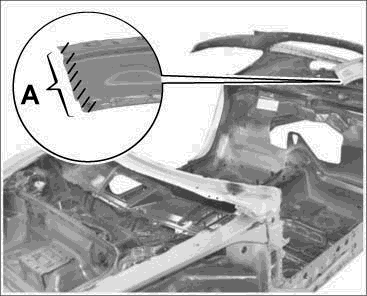

Fig 3: Preparing connection areas of the body for installing the windscreen frame
GP00011312Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Clean undersealing, adhesive residue and paint off the body connecting flanges at the left and right in the marked area -A-  using a hot-air gun or rotary brush. Grind the connecting flanges until bare. See Fig 3.

4. Coating spot-weld flange areas with zinc powder paint

4.1. Coat spot-weld flange areas with zinc powder paint.
