Bottom of rear end

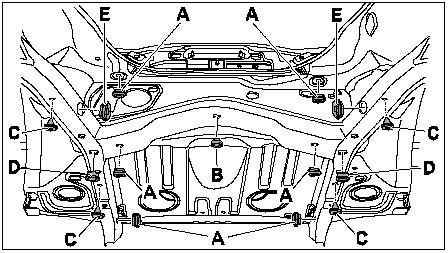

Fig 1: Bottom of rear end

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A - Rubber grommet hole Ø 20 mm

B - Plug hole Ø 10 mm

C - Plug hole Ø 15 mm

D - Plug hole Ø 20 mm

E - Cap hole Ø 30 mm
