Gap dimensions, body rear

NOTE:

Set gap dimensions on the lids, doors and covers, or accessories in accordance with the gap specifications.
Given a clearance in the opening that is too great or too small, the movable body or the accessories must be centerd accordingly.
Ensure that the gaps do not taper or do not narrow at local points.
The given values are guidelines which should be observed as far as possible.
The guidelines apply to repair and assembly work.
Use star gauges to measure the gap dimensions, Star gauges for body gap dimensions NR.127-1

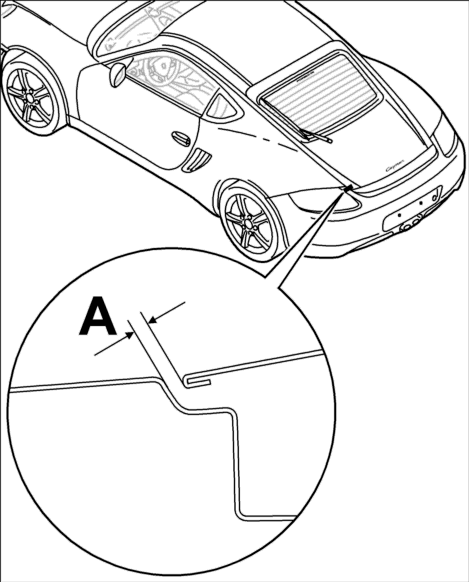

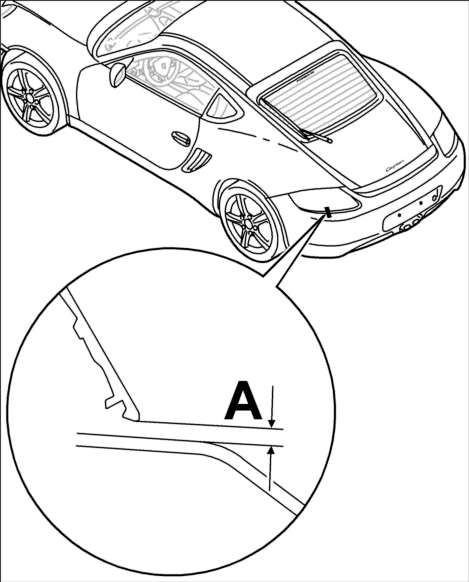

Fig 1: Tail light to outer side panel

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Tail light to outer side panel	Tail light only recessed	gap dimension A	4 mm	+/-1.5 mm
Tail light to outer side panel		gap dimension B	1 mm

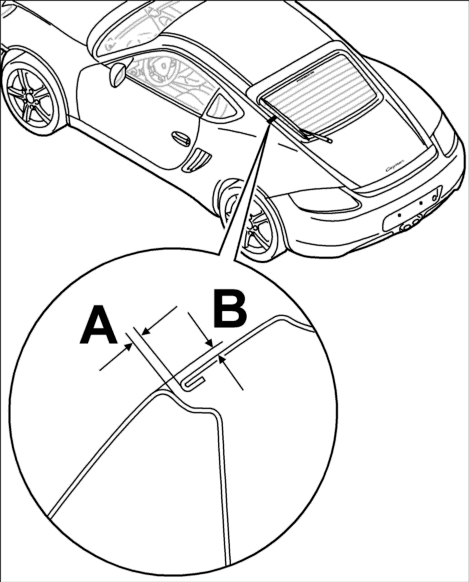

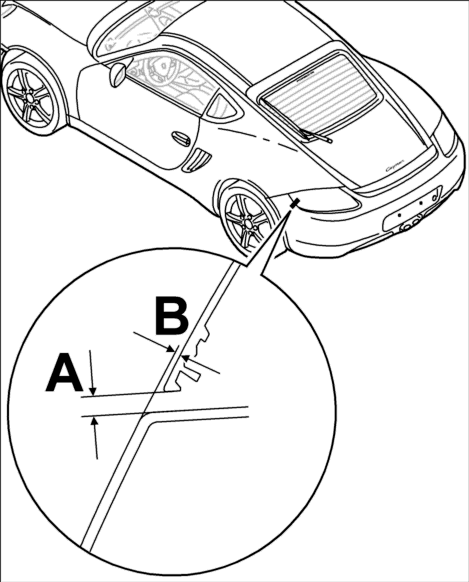

Fig 2: Tail light to center side panel

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Tail light to center side panel		gap dimension A	3 mm	+/-0.8 mm
Tail light to center side panel	Tail light only recessed	gap dimension B	0.5 mm

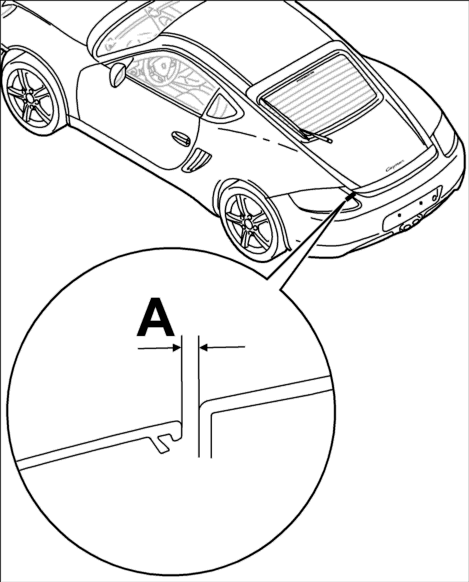

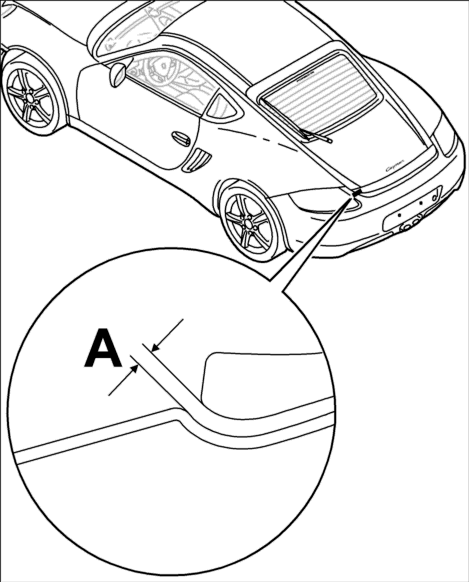

Fig 3: Tail light to rear apron

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Tail light to rear apron		gap dimension A	4 mm	+/-1.5 mm

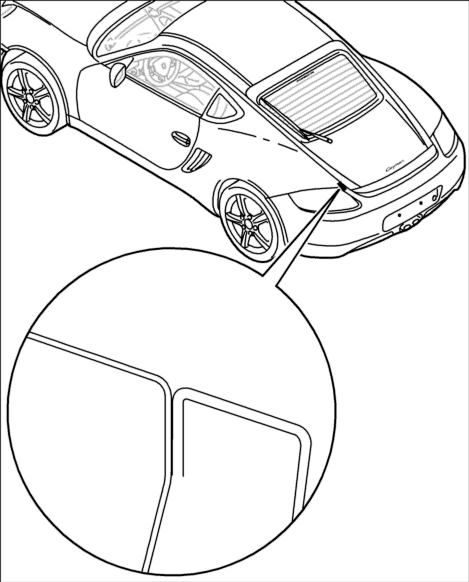

Fig 4: Tail light to inner rear apron

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Tail light to inner rear apron	center gap	gap dimension A	4 mm	+/-1.5 mm

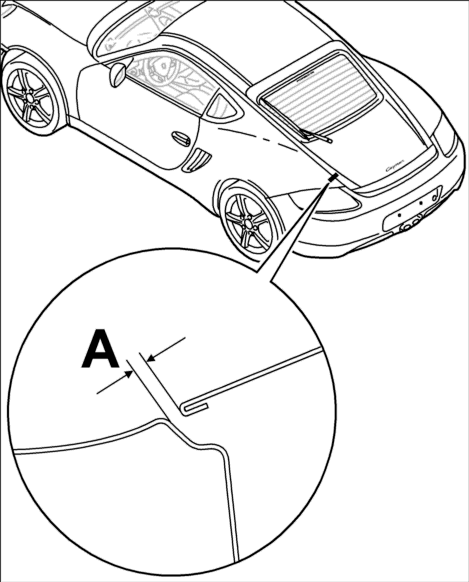

Fig 5: Rear spoiler to rear apron

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Rear spoiler to rear apron		gap dimension A	5 mm	+/-1 mm

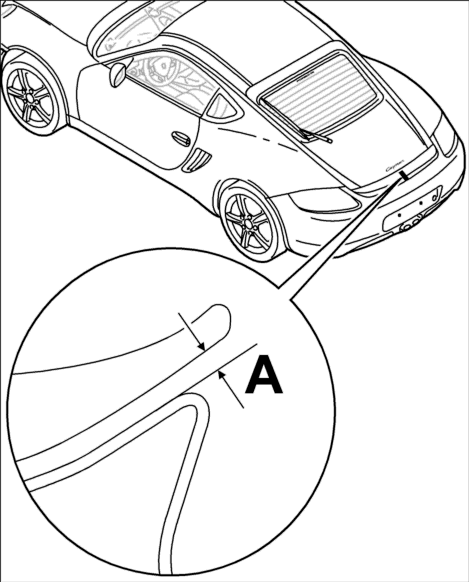

Fig 6: Rear spoiler to rear lid

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Rear spoiler to rear lid		gap dimension A	6 mm	+/-1 mm

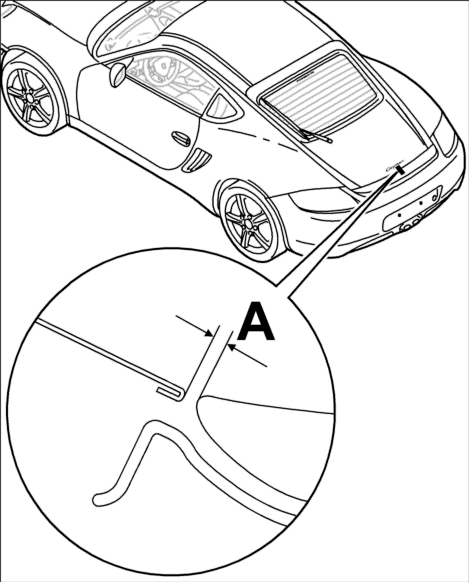

Fig 7: Inner rear apron to side panel

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Inner rear apron to side panel	Flush	gap dimension

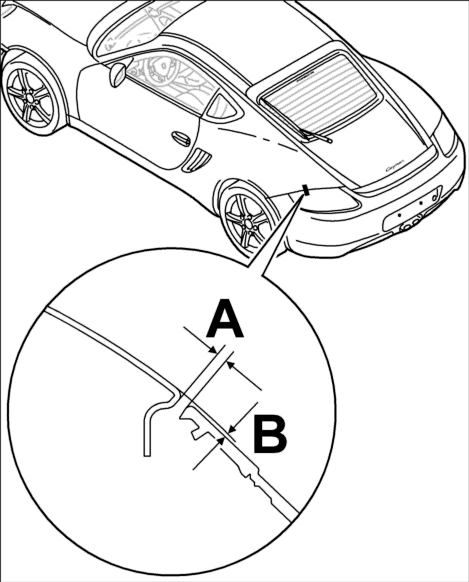

Fig 8: Outer rear spoiler to rear apron

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Outer rear spoiler to rear apron		gap dimension A	4.5 mm	+/-1 mm

Fig 9: Rear lid to rear apron

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Rear lid to rear apron	Flush	gap dimension A	4 mm	+/-0.7 mm

Fig 10: Rear lid to side panel

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Rear lid to side panel	Flush	gap dimension A	4 mm	+/-0.5 mm

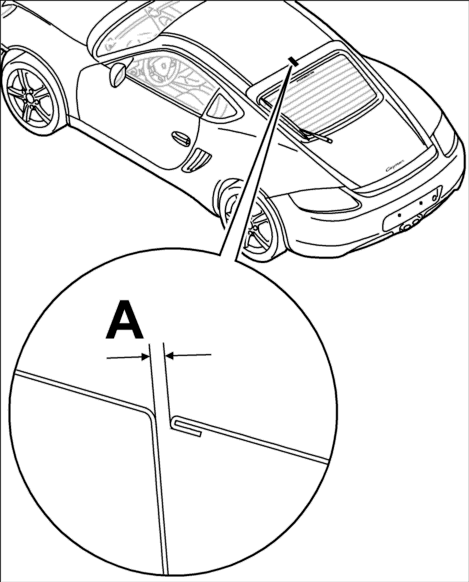

Fig 11: Rear lid to outer roof panel

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Rear lid to outer roof panel	Flush	gap dimension A	4 mm	+/-0.5 mm

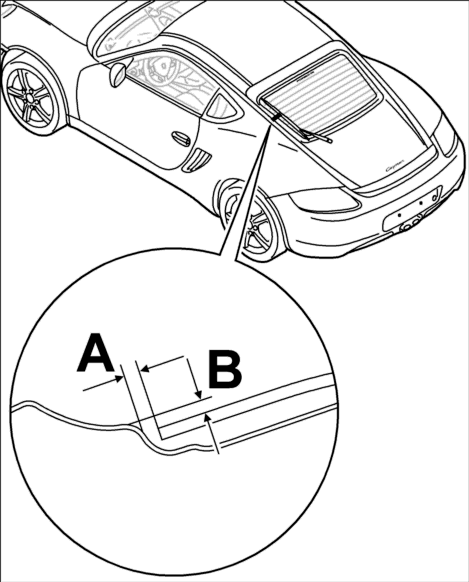

Fig 12: Rear lid to side panel

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 13: Rear lid to rear window

Courtesy of PORSCHE OF NORTH AMERICA, INC.
