Fastening top of wing

Installation Location:

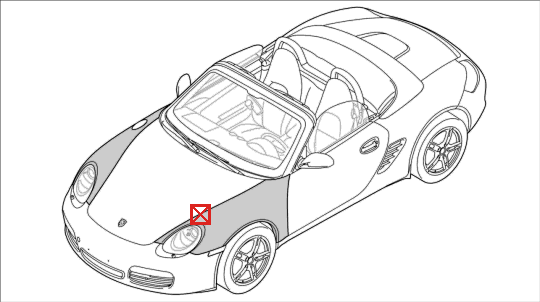

Fig 1: Installation location of wing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

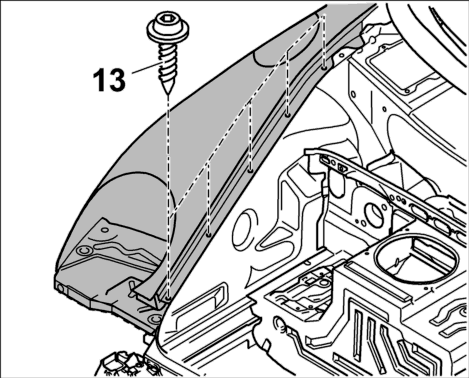

Fig 2: Fastening top of wing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Screw in fastening screws -13-  on top flange and tighten lightly. See Fig 2.

2. Adjust the contour and gap dimensions relative to the front door and front lid. → 5000IN Diagram - body gap dimensions

3. Tighten fastening screws -13-  with specified tightening torque → Tightening torque: 4.5 (3.5 ftlb.) Nm  . See Fig 2.

4. Tighten fastening screws M6 -18-  with tightening torque → Tightening torque: 9.7 (7.0 ftlb.) Nm  . See Fig 2.
