Installing the charge air cooler

Fig 1: Installation position for V8 Turbo charge air cooler

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

Always replace all seals and sealing rings!

Fig 2: Fastening screws on the charge air cooler

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Move the charge air cooler sideways into installation position and insert the three fastening screws -arrows- by hand. See Fig 2.

Fig 3: Charge-air cooler air guide

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Press air line into air cleaner housing. This must engage audibly.

Fig 4: Mount for pressure pipe

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Push the pressure pipe with the new sealing ring into the flange of the charge air cooler and place two hexagon socket head bolts on the air pipe -arrow- . Tighten the screws. → Tightening torque: 7.5 ftlb. See Fig 4.

4. Tighten the three fastening screws of the charge air cooler. → Tightening torque: 6 ftlb.

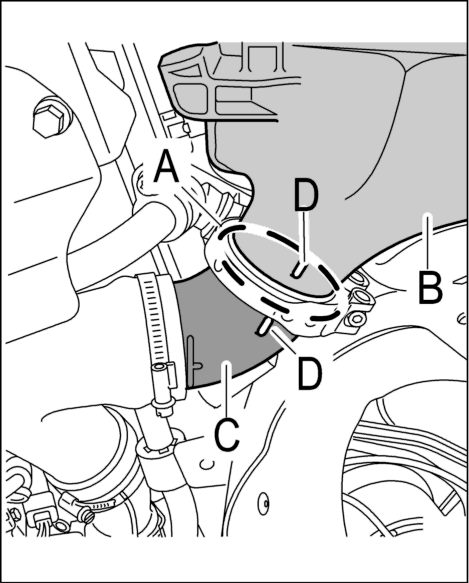

Fig 5: Positioning the sealing ring between charge air cooler and pressure pipe

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Special Turbo "Kit" and Turbo "S": When assembling, also make sure that the assembly markings -D- and the sealing rings -A- are in the correct position. Fit the V-band clamp correctly on the connecting points. See Fig 5.

Fig 6: Lower pressure pipe

Courtesy of PORSCHE OF NORTH AMERICA, INC.

6. Insert lower pressure pipe. Wire clip must engage audibly -1- . See Fig 6.

Fig 7: Air guide

Courtesy of PORSCHE OF NORTH AMERICA, INC.

7. Push in air guide laterally in front of charge air cooler.

Fig 8: Cable for airbag sensor

Courtesy of PORSCHE OF NORTH AMERICA, INC.

8. Place airbag sensor cable into the sheetmetal clip.
