Installing turbocharger, cylinder row 1 - 4

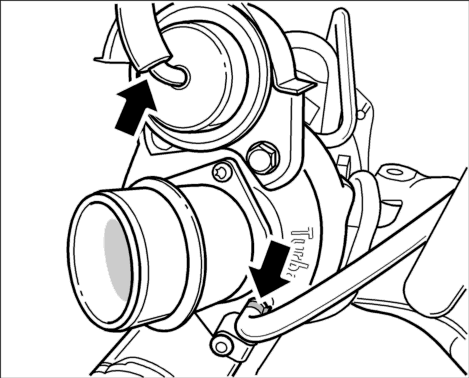

Fig 1: Control line

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

If the hose line of the vacuum unit is difficult to fit, moisten it with water.

1. Attach control line to the turbocharger. Secure the line with a new sheetmetal clip. Subsequently attach the control line to the vacuum unit.

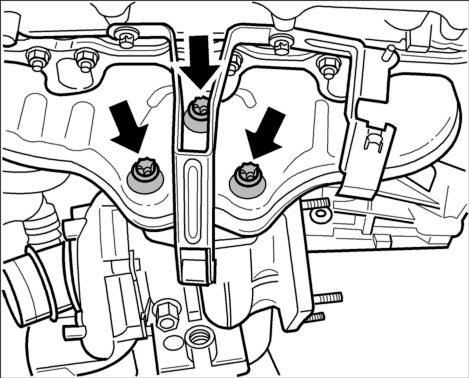

Fig 2: Turbocharger fastening screws

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

The 3 fastening screws of the turbocharger may only be greased on the thread, but not below the head.

2. Screw turbocharger onto the elbow. Grease the 3 fastening screws (M8 x 75) on the thread with the mounting paste: Microgleit LP 475 / 999.917.812.00. Tighten the screws (in two stages) with the specified torque. → Initial tightening: 17 ftlb. → Final tightening: 22 ftlb.

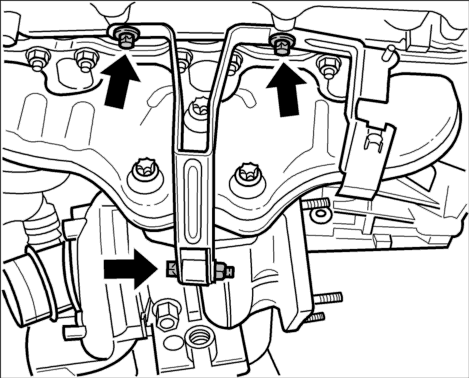

Fig 3: Turbocharger support

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Install turbocharger support. For this, tighten the 2 upper fastening screws (M8 x 20) on the camshaft housing to the specified torque. → Tightening torque: 17 ftlb. Then insert the lower fastening screw from the front, replace nut and tighten with the specified torque. → Tightening torque: 22 ftlb.

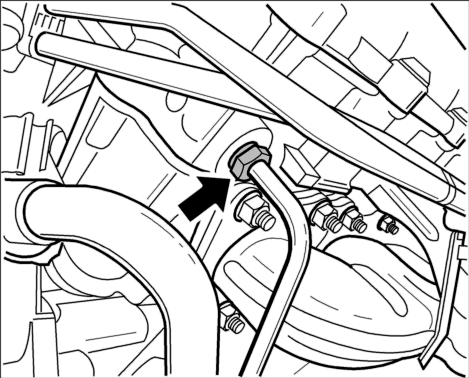

Fig 4: Oil return line

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Screw oil return line on the oil-filter console and tighten to the specified torque. → Tightening torque: 26 ftlb.

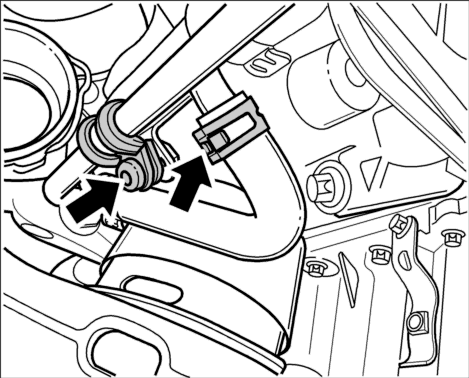

Fig 5: Coolant line

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Fit coolant line on the generator. Push on rubber hose and then fit the spring band clamp. Then position the clamp and tighten the fastening screw to the specified torque. → Tightening torque: 7.5 ftlb.

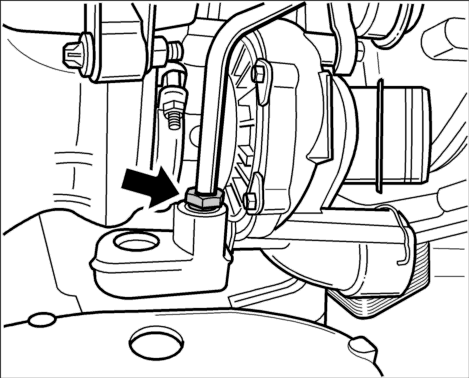

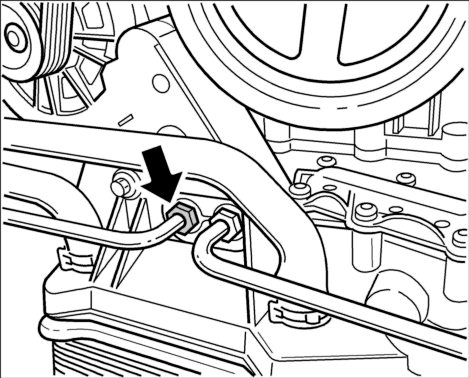

Fig 6: Oil supply line

Courtesy of PORSCHE OF NORTH AMERICA, INC.

6. Screw in the oil supply line on the camshaft housing and tighten to the specified torque. → Tightening torque: 26 ftlb. Then position the holding clamp and tighten the fastening screw to the specified torque. → Tightening torque: 7.5 ftlb.

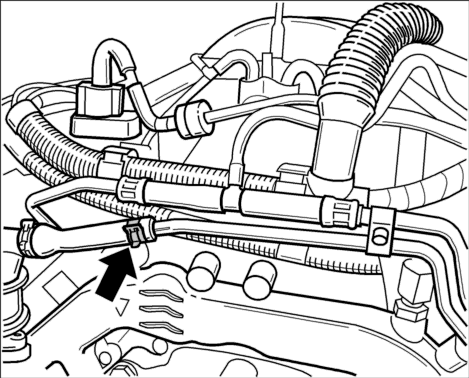

Fig 7: Vent line

Courtesy of PORSCHE OF NORTH AMERICA, INC.

7. Screw the vent line back in the oil collection container and tighten to the specified torque. → Tightening torque: 26 ftlb.

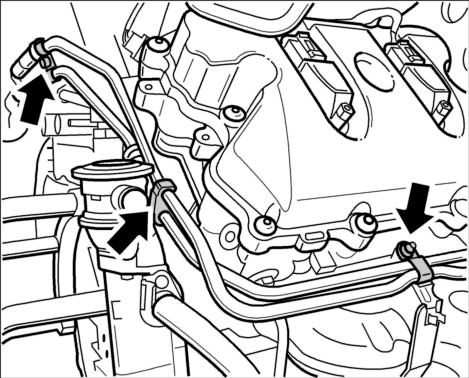

Fig 8: Lines

Courtesy of PORSCHE OF NORTH AMERICA, INC.

8. Fit the sheetmetal clip above the elbow and tighten the fastening nut (M6) to the specified torque. → Tightening torque: 7.5 ftlb. Then fit the line mounts to the marked positions.

Fig 9: Coolant supply line

Courtesy of PORSCHE OF NORTH AMERICA, INC.

9. Fit coolant supply line. Push on the rubber hose and fit the spring band clamp.
