Pedal for foot-operated parking brake (FPB)
The foot-operated parking brake is abbreviated to FPB in the table below.

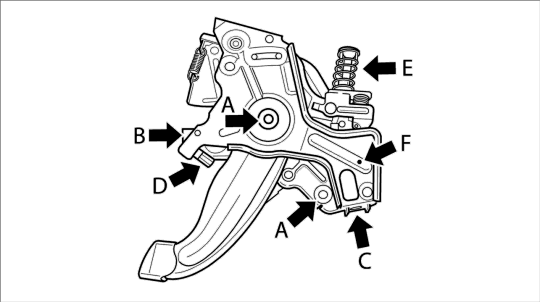

| No. | Designation | Qty. | Removal | Fitting |
|---|---|---|---|---|
| -A- . See Fig 1. | Mounting points for FPB pedal | 2 | Replace micro-encapsulated screw. M8 tightening torque = 17 ftlb. | |
| -B- . See Fig 1. | Cable receiver for bowden cable for releasing the FPB | 1 | Take off side cover (dashboard) to facilitate removal. | Pay attention to routing of bowden cable. |
| -C- . See Fig 1. | Cable receiver for front brake cable | 1 | Take care not to damage cable retainer during removal. Not available as individual part. | The cable retainer engages automatically during installation. |
| -D- . See Fig 1. | Contact switch | 1 | Check function of contact switch following installation (signal light in instrument cluster). | |
| -E- . See Fig 1. | Adjustment device (automatic cable adjustment) | 1 | Automatically set when actuated for first time. | |
| -F- . See Fig 1. | Assembly bore | 1 | Only for installation (makes brake cable assembly easier). |
