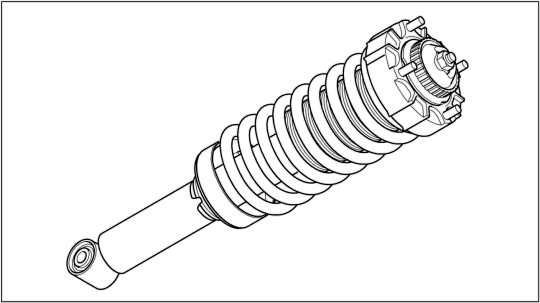

Component overview
The steel springs do not apply for the Cayenne Turbo.
Standard Cayenne Turbo equipment: Air springs with level regulation and vertical adjustment.
| No. | Designation | Qty. | Removal | Fitting |
|---|---|---|---|---|

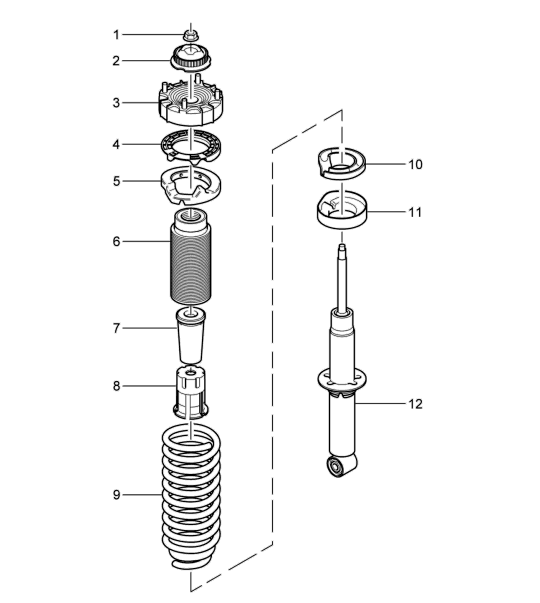

| -1- See Fig 2. | Hexagon nut M12 x 1.5 | 1 | Before loosening the lock nut, tension coil spring using spring clamp for spring struts. When loosening the nut, counter it at the piston rod using an arm bracket 9630. | Use new lock nut. Tighten to 60 Nm (44 ftlb). ± 5 Nm (3.5 ftlb.). First position spring-strut mount 2. |
| -2- See Fig 2. | Supporting mount | 1 | Remove complete assembly (mount no. 2., with mount plate no. 3, top support no. 4 and top concave washer no. 5). | |
| -3- See Fig 2. | Concave support | 1 | ||
| -4- See Fig 2. | Top support | 1 | Place in correct position with spring retainer no. 5. | |
| -5- See Fig 2. | Concave washer, top | 1 | ||
| -6- See Fig 2. | Protective sleeve | 1 | ||
| -7- See Fig 2. | Rubber stop | 1 | ||
| -8- See Fig 2. | Cap | 1 | Fit to shock absorber. | |
| -9- See Fig 2. | Coil spring | 1 | Observe allocation as per Spare Parts Catalogue. | |
| -10- See Fig 2. | Concave washer, bottom | 1 | ||
| -11- See Fig 2. | Bottom support | 1 | Observe color allocation. Only coil springs and the bottom shim should be installed together with color coding (depending on tolerance class of springs). Fit in correct position with spring plate no. 10. | |
| -12- See Fig 2. | Vibration damper | 1 | Observe allocation as per Spare Parts Catalogue. The vibration dampers for the right and left sides are identical parts. |
