Removing auxiliary brake light

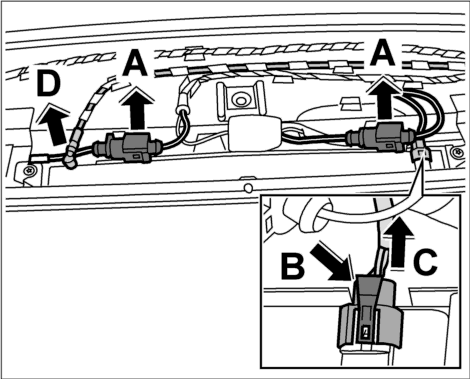

Fig 1: Unclipping and disconnecting plug connections

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Unclip the two plug connections -arrows A- . See Fig 1.

2. Release the connector -arrow B- and disconnect it from the brake light -arrow C- . See Fig 1.

3. Pull the washer fluid hose line off the spray nozzle -arrow D- . See Fig 1.

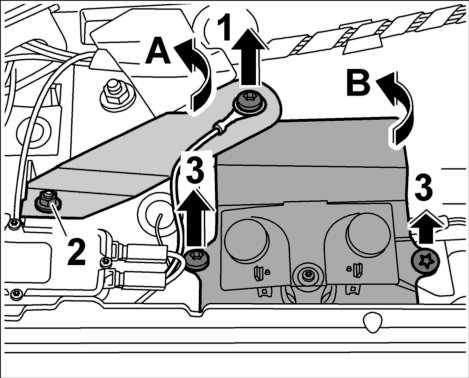

Fig 2: Removing telephone antenna

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

4. Unscrew the fastening screw -arrow 1- . See Fig 2.

5. Loosen the fastening nut -2- and turn the ground strap away to the left -arrow A- . See Fig 2.

6. Unscrew the fastening screws -arrows 3- and lay the telephone antenna aside -arrow B- . See Fig 2.

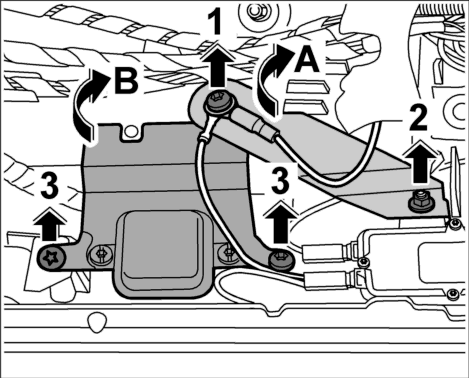

Fig 3: Removing GPS antenna

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

7. Unscrew the fastening screw -arrow 1- . See Fig 3.

8. Loosen the fastening nut -arrow 2- and turn the ground strap away to the right -arrow A- . See Fig 3.

9. Unscrew the fastening screws -arrows 3- and lay the GPS antenna aside -arrow B- . See Fig 3.

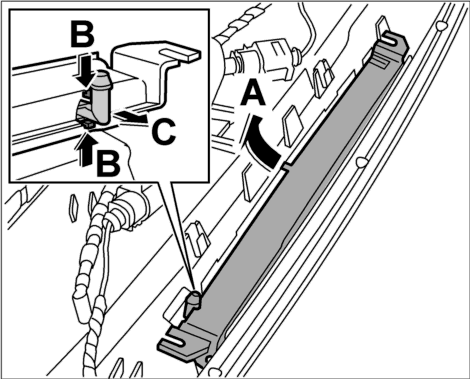

Fig 4: Removing brake light

Courtesy of PORSCHE OF NORTH AMERICA, INC.

10. Press out brake light to the inside -arrow A- . See Fig 4.

11. Release the spray nozzle -arrows B- and pull it out -arrow C- . See Fig 4.
