Installing auxiliary brake light

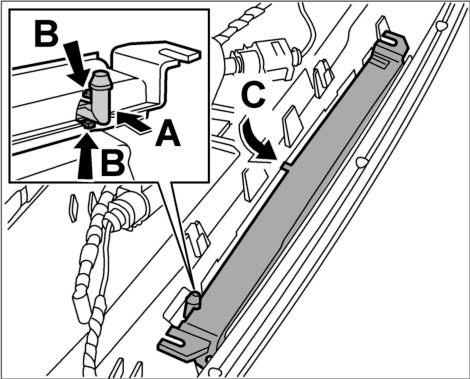

Fig 1: Installing brake light

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Insert the spray nozzle into the additional brake light -arrow A- until the locking tabs -arrows B- click into place. See Fig 1.

2. Position the brake light in installation position from the inside -arrow C- . See Fig 1.

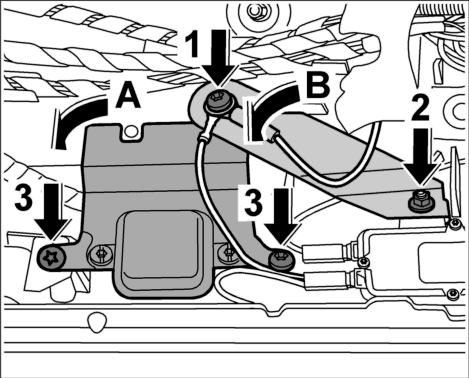

Fig 2: Installing GPS antenna

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

Only for vehicles with PCM

3. Position the GPS antenna in installation position -arrow A- and screw in the fastening screws -arrows 3- , but do not tighten. See Fig 2.

4. Move the ground strap into installation position -arrow B- and secure the ground leads with the fastening screw -arrow 1- . Then tighten the fastening nut -arrow 2- and fastening screws -arrows 3- . See Fig 2.

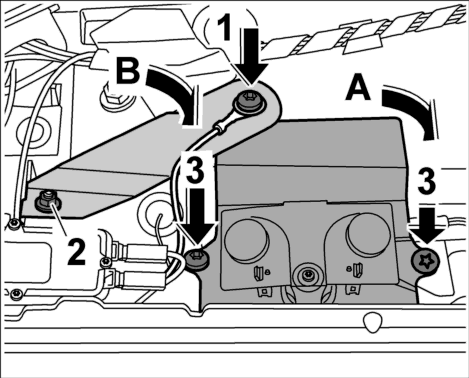

Fig 3: Installing telephone antenna

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

Only for vehicles with telephone

5. Place the telephone antenna in installation position -arrow A- and screw in the fastening screws -arrows 3- , but do not tighten. See Fig 3.

6. Move the ground strap into installation position -arrow B- and secure the ground leads with the fastening screw -arrow 1- . Then tighten the fastening nut -2- and fastening screws -arrows 3- . See Fig 3.

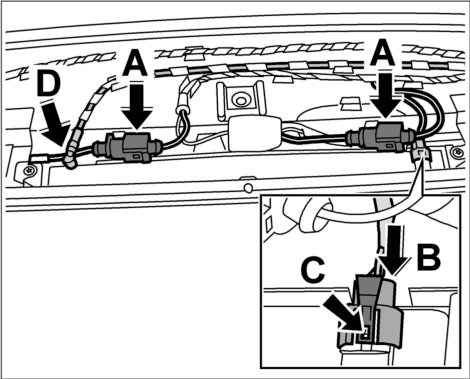

Fig 4: Inserting and clipping in plug connections

Courtesy of PORSCHE OF NORTH AMERICA, INC.

7. Clip in the plug connections -arrows A- . See Fig 4.

8. Insert the connector -arrow B- until the locking tab -arrow C- clicks into place. See Fig 4.

9. Connect the water line -arrow D- . See Fig 4.
