Installing gas discharge lamp

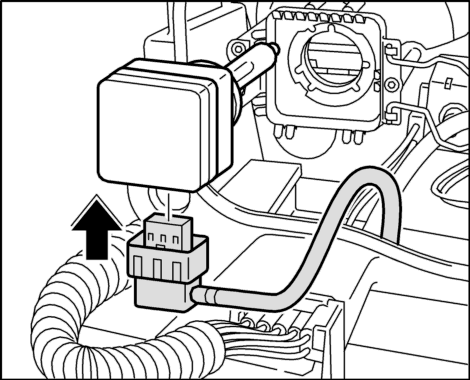

Fig 1: Connecting the plug connection

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Plug in the electric plug connection.

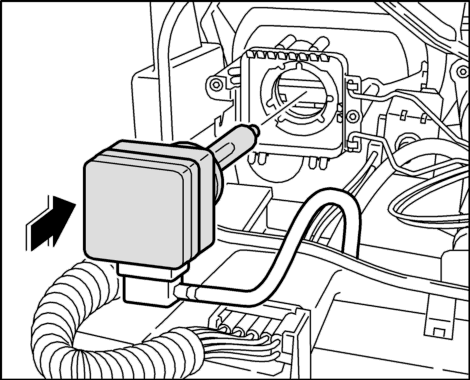

Fig 2: Inserting lamp into housing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Carefully insert the lamp into the headlight housing.

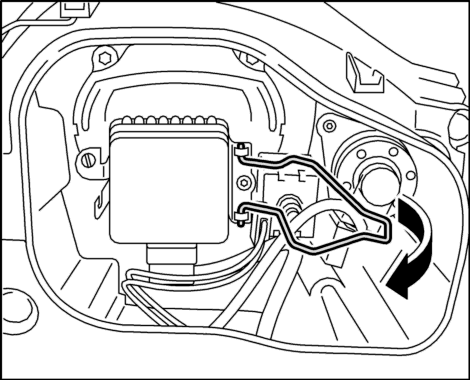

Fig 3: Engaging locking bar

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Close and engage the locking bar.

Fig 4: Installing cap

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Place cap -2-  in position, press it down and close locking bar -1-  . See Fig 4.
