Disassembling steering column switch

Installation Location:

Fig 1: Overview of disassembling and assembling steering column switch

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A - Direction indicator switch

B - GRA switch

C - Contact unit for airbag

D - Switch for wiper and washer system

E - Electronic unit

Fig 2: Removing airbag contact unit

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 3: Steering column switch designations

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

Ensure that the arrow -A- of the rotor is positioned between the markings -B- of the arrows -C- of the airbag contact unit and that the locking element -D- is engaged. See Fig 3.

1. Lift up the three retaining tabs carefully and remove airbag contact unit -C- . See Fig 3.

Fig 4: Unscrewing fastening screws

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Unscrew the six fastening screws.

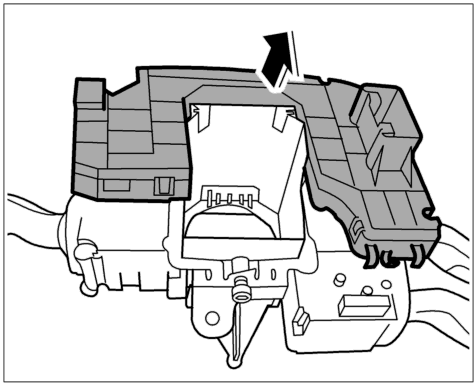

Fig 5: Removing electronic unit

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Turn the steering column switch round and remove the electronic unit -E- . See Fig 3.

Fig 6: Removing GRA switch

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Pull the GRA switch -B- downward and disengage. See Fig 3.

Fig 7: Removing switch for wiper and washer system

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Pull switch for wiper and washer system -D- up and out of the mount. See Fig 3.
