Assembling steering column switch

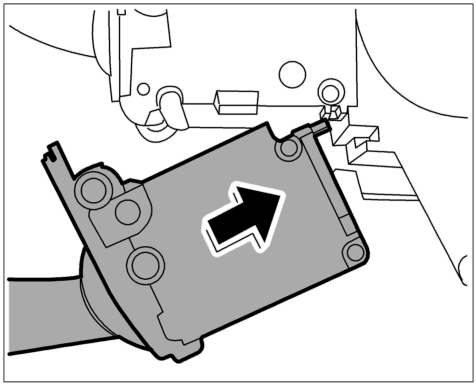

Fig 1: Inserting switch for wiper and washer system

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Insert switch for wiper and washer system into the mount.

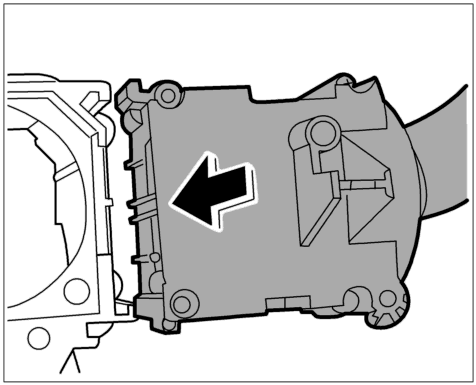

Fig 2: Installing GRA switch

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Engage the GRA switch and fold it upwards.

3. Turn the steering column switch and position the electronic unit.

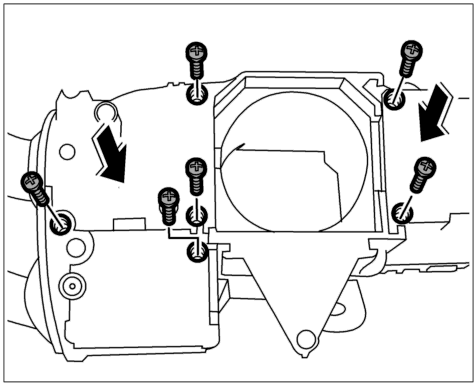

Fig 3: Screwing in fastening screws

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Turn the steering column switch round again and screw in the six fastening screws.

Fig 4: Installing airbag contact unit

Courtesy of PORSCHE OF NORTH AMERICA, INC.

WARNING: Risk of damage to airbag contact unit!

If the contact unit has been adjusted, proceed in accordance with the following work instruction:

→ To position the airbag contact unit in the central position, press the locking element and turn the rotor carefully to the left as far as it will go.

→ Then turn the rotor carefully to the right, approx. 3.5 to 3.75 revolutions, until the locking element engages. The rotor arrow marking must be positioned between the arrow markings of the contact unit

5. Position airbag contact unit and press on the steering column switch until the three tabs engage -arrows- . See Fig 4.
