Installing main headlight

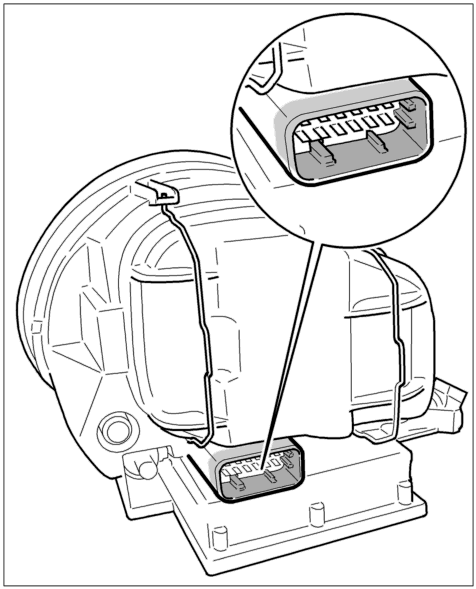

Fig 1: Greasing the headlight plug mount

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: Before the headlights can be installed, the headlight plug mount for the central headlight plug must be greased with lubricant.

Greasing the plug mount makes it easier for the plug to slide into the mount and thus guarantees an optimal connection.

Use lubricant part no. 000.043.206.16. Since the part number or index is subject to change, the part number must additionally be checked in the PET.

1. Insert headlight into guide rails and push fully home into wing.

Fig 2: Locking the headlight

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Press the headlight to the rear, while at the same time turning the socket wrench -5- in the direction of the arrow -arrow A- or -arrow B- . In the process, the headlight lock must engage with an audible and perceptible click. See Fig 2.

A - Direction of rotation for left headlight

B - Direction of rotation for right headlight

2 - Cover

3 - Headlight release

4 - Wing

3. Check that headlight is securely seated, e. g. by pulling gently near the auxiliary high beam headlight.

Fig 3: Installing cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Insert cover -1- and fold over. See Fig 3.
