Removing pulse sender (crankshaft reference mark sender)

NOTE: The installation position and cable routing for the crankshaft pulse sender is identical for both manual and automatic transmissions.

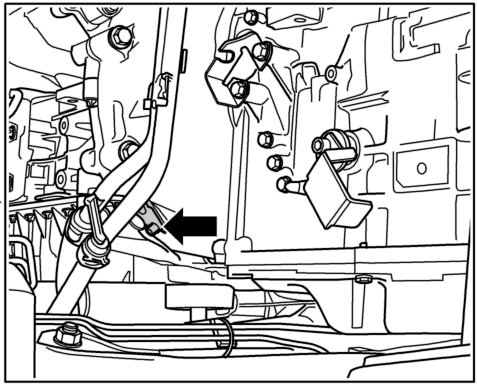

1. Loosen cable for crankshaft pulse sender out of the clips and release cable. Use a long screwdriver to do this if necessary.

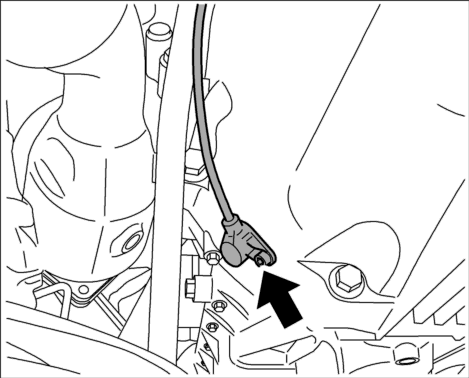

Fig 1: Reference mark sender on manual transmission
GP00009476Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Remove fastening screw on crankshaft pulse sender and pull crankshaft pulse sender out carefully. → Reference mark sender on manual transmission  → Reference mark sender on Tiptronic transmission  . See Fig 1, Fig 2.

Fig 2: Reference mark sender on Tiptronic transmission
GP00009695Courtesy of PORSCHE OF NORTH AMERICA, INC.
