Subsequent work

1. Fit the right and the rear covers. Refer to 70 02 19 Removing and installing front cover (engine compartment) - as of MY 2003 (All Models) . and the cowl panel. Refer to 66 44 19 Removing and installing cowl panel cover - as of MY 2003 (All Models) .

2. Install both wiper arms. Refer to 92 25 19 Removing and installing wiper arm - as of MY 2003 (All Models) .

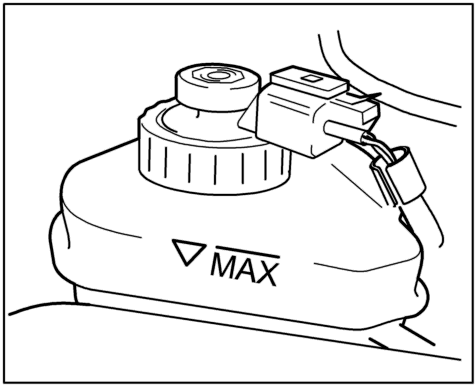

Fig 1: Brake fluid reservoir
GP00010576Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Bleed the vehicle → 470107 Bleeding the brake system - chapter on "bleeding" . After the bleeding operation, do not top up the brake fluid level above -MAX-  . See Fig 1.

4. Calibrate the pressure sensor with the Porsche System Tester.
