Installing auxiliary brake light

1. Connect electric connector to the auxiliary brake light until the connector is felt to engage.

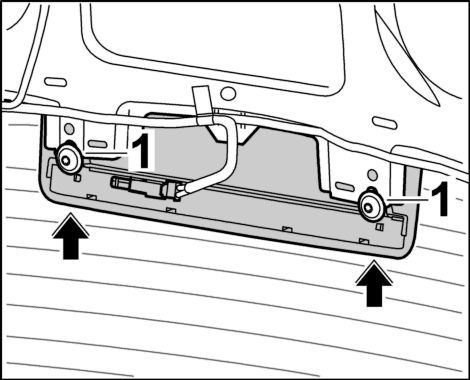

Fig 1: Screwing down the auxiliary brake light

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Position auxiliary brake light in rear lid and screw down with the two fastening screws -1-  . → Tightening torque: 1.5 (1 ftlb.) Nm  See Fig 1.

3. Check operation of auxiliary brake light.
