46 05 19 Removing and installing brake pedal - as of MY 2005 (All Models): Information: Information

The brake pedal can only be removed when the clutch pedal has been removed.

The description (removing and installing brake pedal) also covers the procedure for removing and installing the clutch pedal.

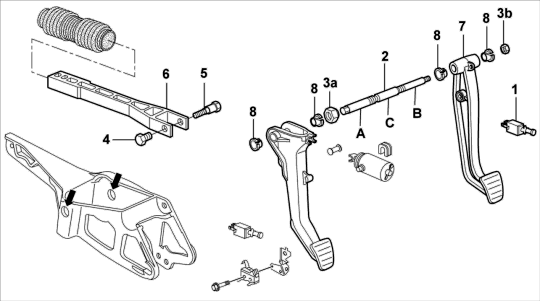

Fig 1: Overview of brake pedal

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1  - Brake light switch

2  - Pedal axle

4  - Threaded bushing

5  - Bolt

6  - Brake pushrod

7  - Brake pedal
