Removing Gas Discharge Lamp

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

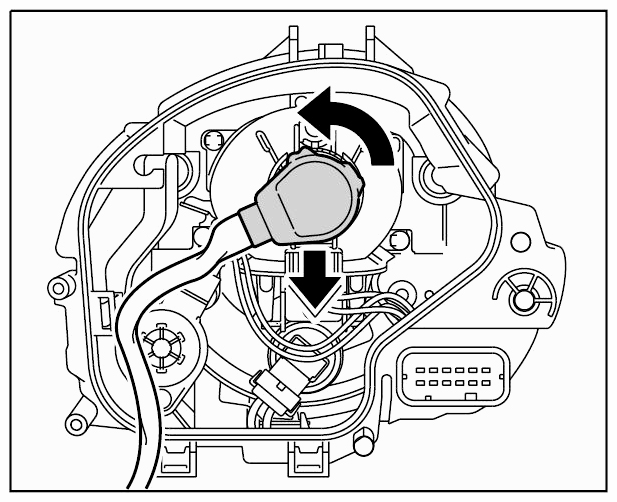

Turn connector to the left (bayonet lock) and pull it off.

Fig 1: Releasing Electric Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

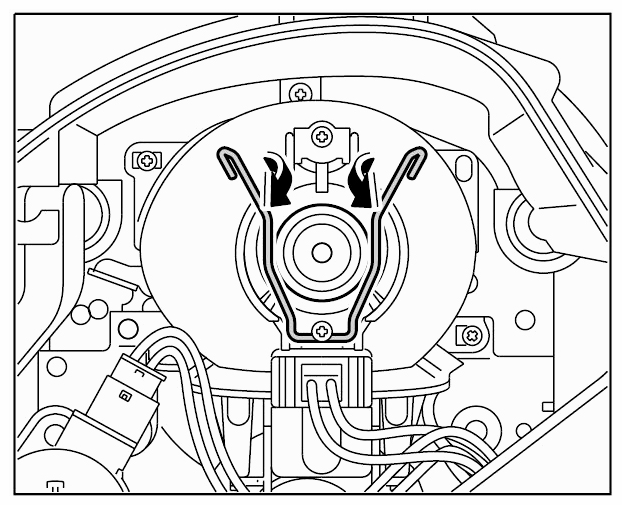

Disengage both retaining bows and pull out lamp.

Fig 2: Disengaging Retaining Bows
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
