Installing Tail Light
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.
- Examine the tail light seal.
Information
If the tail light is only removed and installed again, the seal for the tail light can be re-used.
If the seal for the tail light is damaged, this seal must be replaced.
If the seal is removed from the light, this seal must be replaced.
- If necessary: Pull off the seal and carefully clean the sealing face with a knife.

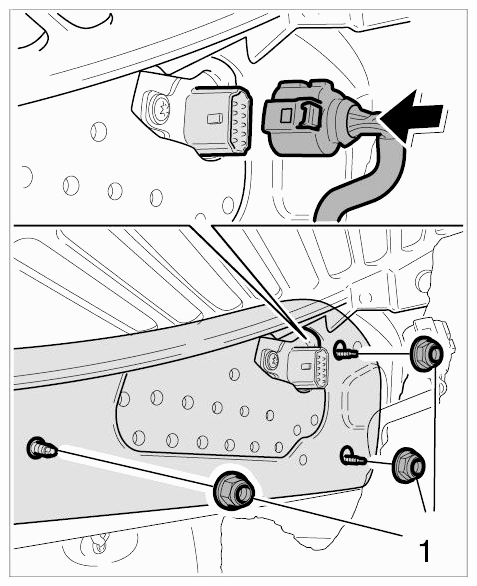

- Position the tail light in the mounting in the wing and secure with the three fastening nuts --1- -.
- Push on the central connector on the tail light until the connector clicks into place.
