Removing Headlight Mount

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Information

The main headlights are fitted into the body at the factory.

A new adjustment may only be made in the case of accident repairs or replacement of the main headlights.

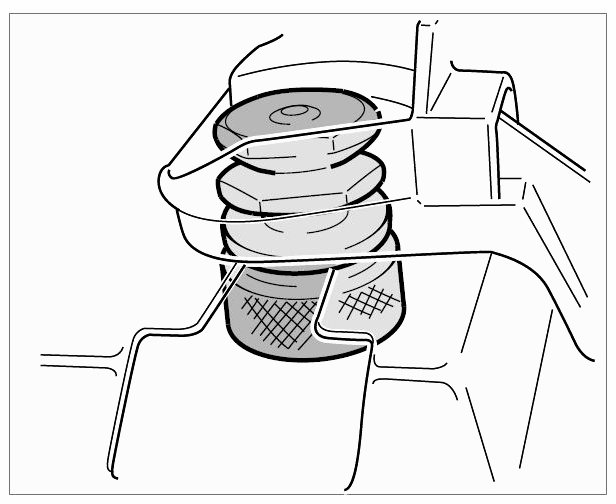

Fig 1: Identifying Adjusting Element

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The headlight mount is secured to the body by 3 knurled nuts.

Unscrew the 3 knurled nuts from the adjusting elements.
Pull mount forwards out of the body.

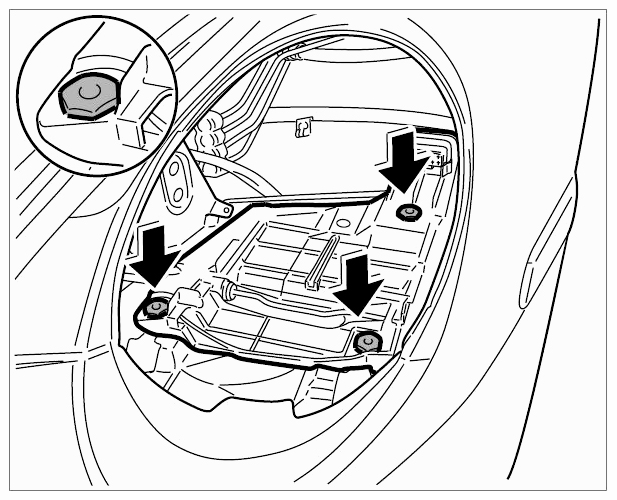

Fig 2: Locating Knurled Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
