Preliminary Work For Removing Spring Strut

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.
  1. Find an access point to where the upper spring strut is attached to the body (three M8 lock nuts).

    On the Boxster  , this involves moving the convertible top to service position → 6101IN CONVERTIBLE-TOP SERVICE POSITION .

    Procedure on the Cayman:  Remove trim panel for spring strut mount → REMOVING TRIM PANEL FOR SPRING STRUT MOUNT . This includes: trim panel for rear → REMOVING REAR COVER and C-pillar → REMOVING C-PILLAR TRIM PANEL .

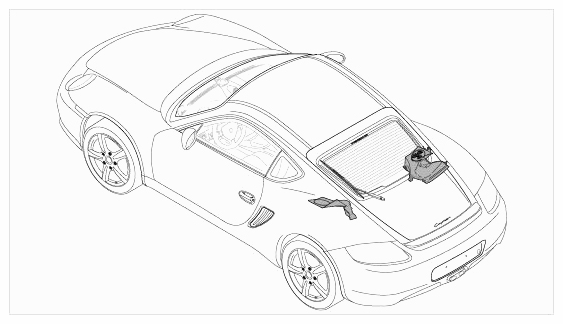

    Fig 1: Identifying Upper Spring Strut Position
    G09587627Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Raise the vehicle → WM 4X00IN LIFTING THE VEHICLE (ALL MODELS)
  3. Remove rear wall cover → REMOVING REAR WALL COVER .

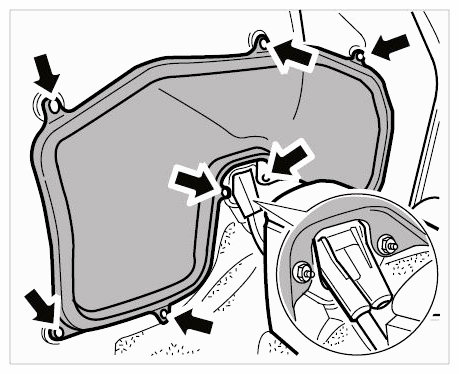

    Fig 2: Locating Rear Wheel Cover Grommet Mounting Bolt
    G09587628Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove rear wheel → REMOVING WHEEL .
