Installing oil-level sender

1. Insert oil-level sender together with a new sealing ring and tighten. → Tightening torque: 15 ftlb.  .

2. Position flange of secondary air line -3-  together with a new seal. See Fig 1.

3. Insert and tighten two Torx screws (M6 x 20) -2-  . → Tightening torque: 7.5 ftlb.  . See Fig 1.

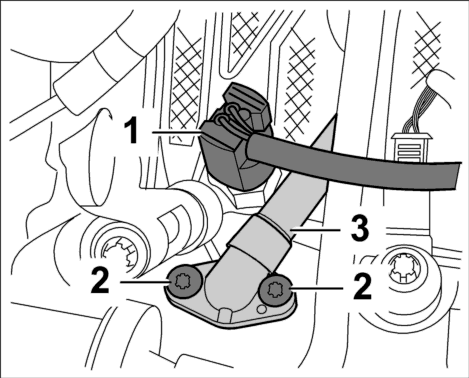

Fig 1: View of oil-level sender

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Push on cable plug -1-  . See Fig 1.
