Installing turbocharger, cylinder row 5 - 8

Fig 1: Turbocharger fastening screws

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

The 3 fastening screws of the turbocharger may only be greased on the thread, but not below the head.

1. Screw turbocharger onto the elbow. Grease the 3 fastening screws (M8 x 75) on the thread with the mounting paste: Microgleit LP 475 / 999.917.812.00. Tighten the screws (in two stages) to the specified torque. → Initial tightening: 17 ftlb. → Final tightening: 22 ftlb.

Fig 2: Turbocharger support

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Install turbocharger support. For this, tighten the 2 upper fastening screws (on the camshaft housing to the specified torque. → Tightening torque: 17 ftlb. Then insert the lower fastening screw from the front, replace nut and tighten with the specified torque. → Tightening torque: 22 ftlb.

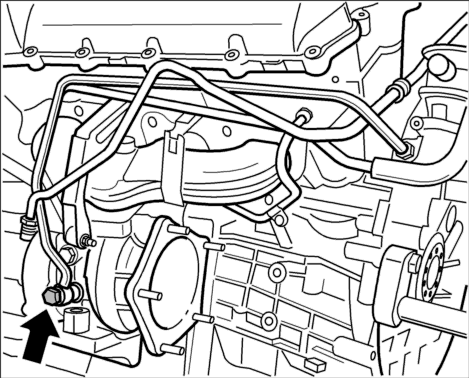

Fig 3: Oil return line on oil-filter console

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Screw oil return line on the oil-filter console and tighten to the specified torque. → Tightening torque: 26 ftlb.

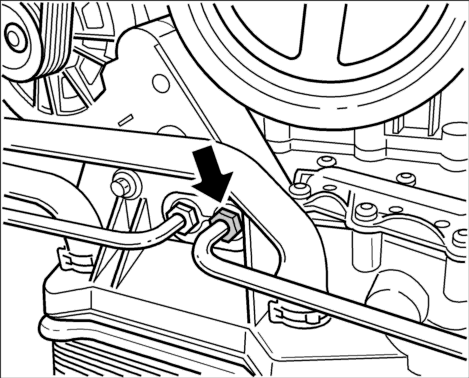

Fig 4: Oil supply line

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Screw in the oil supply line on the camshaft housing and tighten to the specified torque. → Tightening torque: 26 ftlb. Then position the holding clamp and tighten the fastening screw to the specified torque. → Tightening torque: 7.5 ftlb.

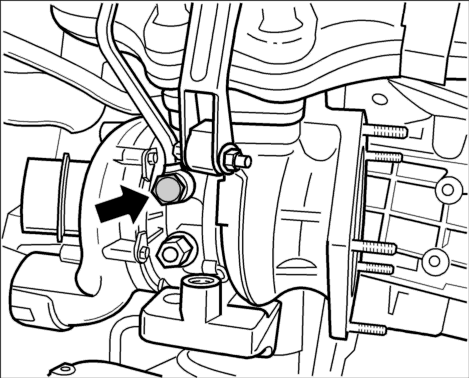

Fig 5: Upper coolant line on turbocharger

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Fit upper coolant line on turbocharger. Fit a new aluminum seal both above and below the line. Tighten line to the specified torque. → Tightening torque: 30 ftlb.

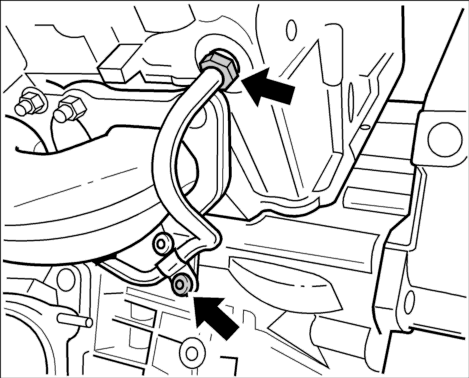

Fig 6: Lower coolant line

Courtesy of PORSCHE OF NORTH AMERICA, INC.

6. Fit coolant line between the turbocharger and coolant distribution pipe. Tighten screw union on camshaft housing by hand. Then fit the line on the turbocharger. Fit a new aluminum seal both above and below the line on the coolant connection. Tighten the line on the turbocharger and on the camshaft housing to the specified torque. → Tightening torque: 30 ftlb.

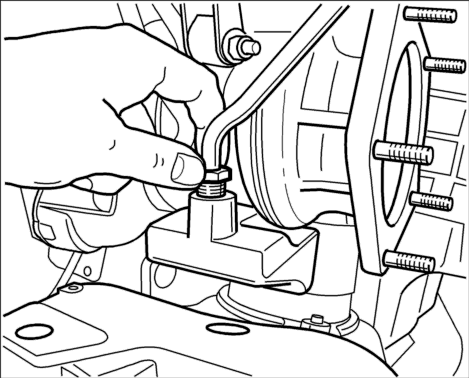

Fig 7: Oil line on turbocharger

Courtesy of PORSCHE OF NORTH AMERICA, INC.

7. Tighten oil line on the turbocharger tank by hand to the specified torque. → Tightening torque: 26 ftlb.

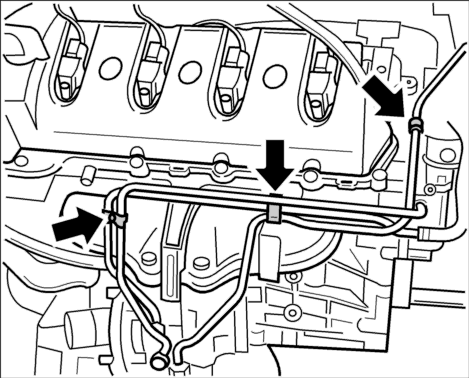

Fig 8: Line mounts

Courtesy of PORSCHE OF NORTH AMERICA, INC.

8. Fit the 3 line mounts at the marked locations and tighten to the specified torque. → Tightening torque: 7.5 ftlb.

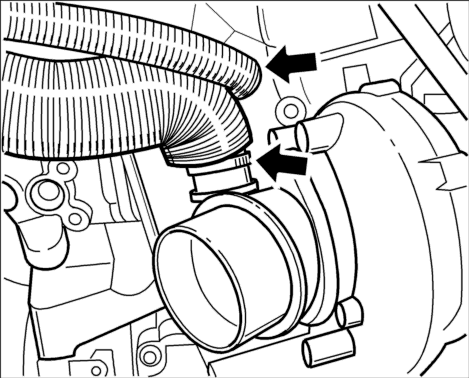

Fig 9: Hoses to the vacuum unit

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

If the hose line of the vacuum unit is difficult to fit, moisten it with water.

9. Push hoses on for the vacuum unit and the ambient air valve.
