Removing turbocharger, cylinder row 1 - 4

Fig 1: Connections
GP00008817Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Remove hose line from the vacuum unit of the bypass valve → Connections  . Where hose is tight, carefully lever off with a screwdriver. Then pull off the control pressure line from the turbocharger. To do so, carefully insert a small screwdriver in the metal ring so as to open it → Diagram shows opening of the circlip  . See Fig 1 and Fig 2.

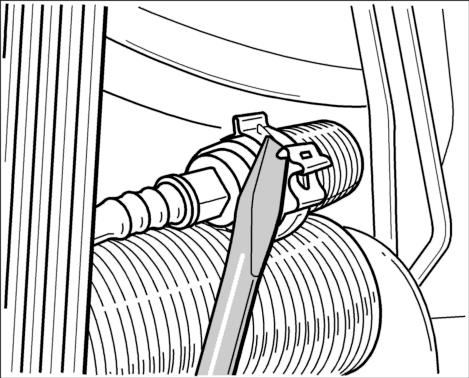

Fig 2: Diagram shows opening of the circlip
GP00008334Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fig 3: Coolant supply line
GP00008823Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Remove coolant supply line. For this, open the spring band clamp on the coolant line above the coolant distribution pipe and remove it.

Fig 4: Felt-tipped pen markings
GP00008805Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. The position of all clamps should be marked by means of a felt tip pen prior to any further assembly.

Fig 5: Clamps
GP00008813Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Release the 4 clamps on the coolant supply line.

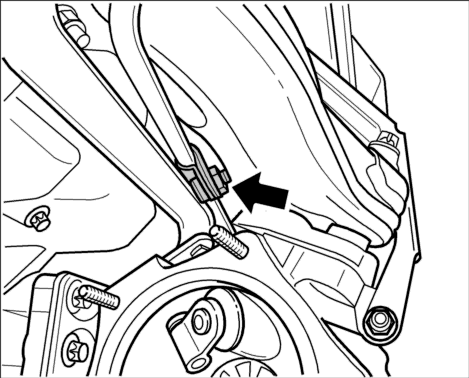

Fig 6: Sheetmetal holder on oil supply line
GP00008821Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Release the sheetmetal holder on oil supply line. To do this, loosen the fastening nut (M6).

Fig 7: Oil supply line
GP00008815Courtesy of PORSCHE OF NORTH AMERICA, INC.

6. Release the oil supply line on the camshaft housing.

Fig 8: Vent line to oil collection container
GP00008814Courtesy of PORSCHE OF NORTH AMERICA, INC.

7. Release vent line on the oil collection container and place this on one side.

Fig 9: Coolant return line
GP00008816Courtesy of PORSCHE OF NORTH AMERICA, INC.

8. Separate the coolant return line next to the generator. To do this, remove the spring band clamp and pull off the rubber line. Then release the fastening screw on the holding clamp.

Fig 10: Oil return line
GP00008819Courtesy of PORSCHE OF NORTH AMERICA, INC.

9. Release the oil return line on the oil-filter console.

Fig 11: Turbocharger mount
GP00008822Courtesy of PORSCHE OF NORTH AMERICA, INC.

10. Remove turbocharger mount. To do this, loosen two upper fastening screws. Then unscrew the lower screw and remove the support.

Fig 12: Turbocharger fastening screws
GP00008824Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
  • When removing the turbocharger note the connection points of the lines.
  • If the two lines that are screwed on the turbocharger need to be released, their position must be marked prior to these being released. During installation, the lines must be stress-free and must not be bent.

11. Remove the turbocharger. To do so, undo the 3 fastening screws and remove the turbocharger.
