Removing crankshaft pulse sender

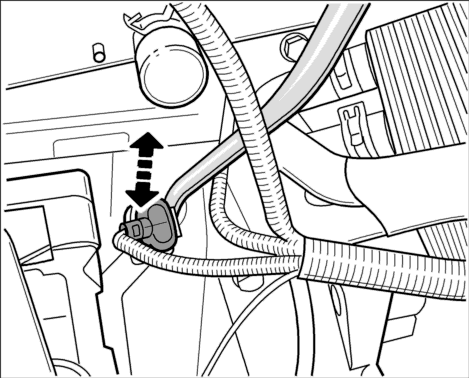

Fig 1: Fastening nuts

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Remove two fastening nuts for the hose holder and press the holder aside -arrows- . See Fig 1.

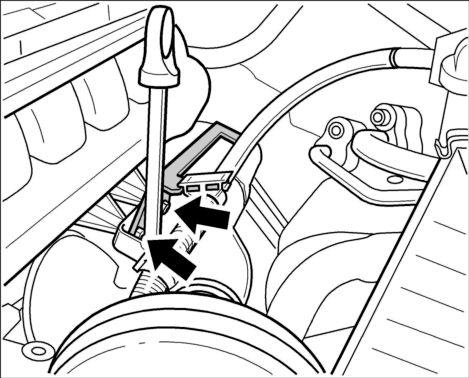

Fig 2: Cable plug of crankshaft pulse sender

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

The cable plug for the crankshaft pulse sender is secured in a difficult-to-reach position at the guide tube for the oil dip stick.

2. Press the cable plug for the crankshaft pulse sender at the guide tube for the oil dip stick towards the cylinder block (only pushed in) -arrow- . Then disconnect the cable plug. See Fig 2.

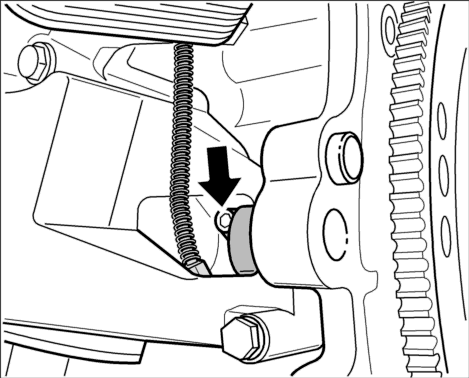

Fig 3: Crankshaft pulse sender

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

The cable for the crankshaft pulse sender is installed between the cylinder block and the oil filter housing/engine support arm.

3. Remove crankshaft pulse sender by loosening the fastening screw -arrow- . Pull the crankshaft pulse sender out of the cylinder block. Carefully pull out the cable. See Fig 3.

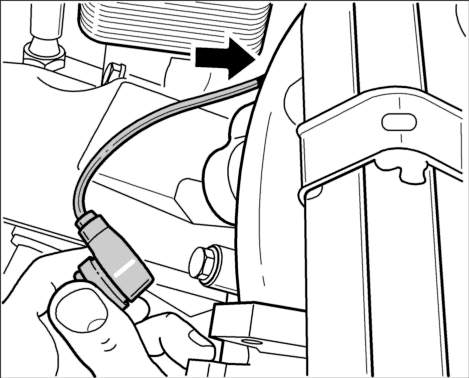

Fig 4: Cable guide between cylinder block and oil/water heat exchanger

Courtesy of PORSCHE OF NORTH AMERICA, INC.
