Adjusting headlight mounting

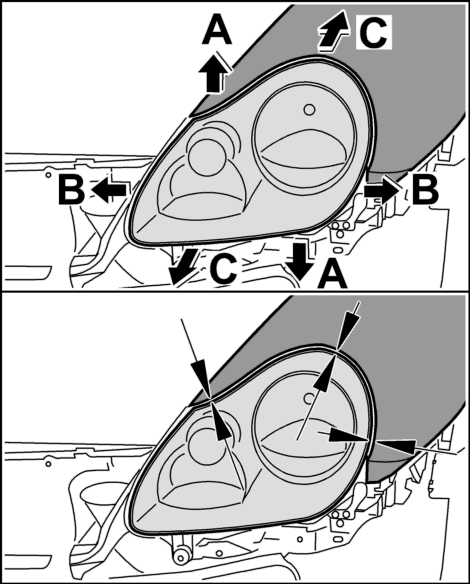

Fig 1: Setting gap dimension

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Move the headlight arrows -Arrows A, B, C-  to align it to the contour of the wing -Arrows-  . Gap dimension: 3 mm. See Fig 1.

Fig 2: Tightening fastening screws

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Tighten the two front screws first -Arrow 2-  , then the two rear screws -Arrow 1-  and check the gap dimension. Loosen and re-adjust the headlight mounting if necessary. → Tightening torque: 7 ftlb.  See Fig 2.

3. Remove and install the headlight at least 3 times, then check the gap dimension again. Re-adjust the mounting if necessary.
