Removing main light switch

Switch off ignition and remove ignition key.

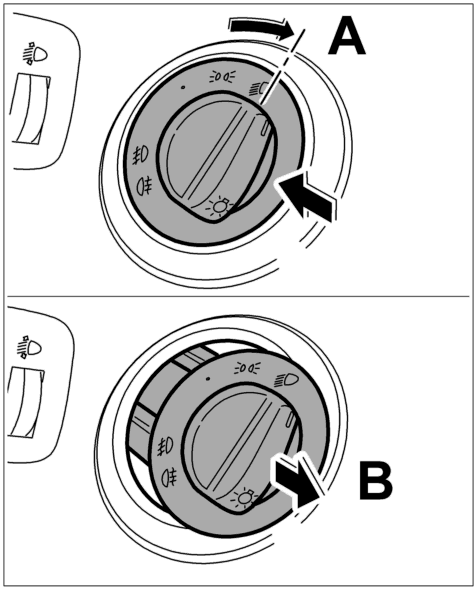

Fig 1: Light switch

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. -A-  Press in rotary knob on the light switch (but not to the limit) and turn the switch clockwise. See Fig 1.

2. -B-  Pull the light switch out. See Fig 1.

Fig 2: Release the electrical plug

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Release -A-  and remove -B-  electrical connector. See Fig 2.
