Removing fog lights

CAUTION: Risk of short circuit!

→ Before removing the headlight, remove ignition key and switch off light switch.

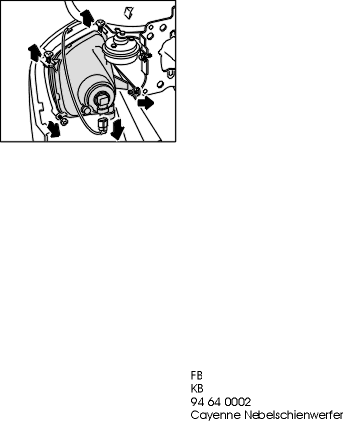

Fig 1: Pulling off connector
GP00006523Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Pull off electric connector.

2. Loosen and unscrew the four fastening screws and remove the headlight.
