Installing rear wheel housing liner

Installation Location:

Fig 1: Installation position of rear wheel housing liner
G00462210Courtesy of PORSCHE OF NORTH AMERICA, INC.

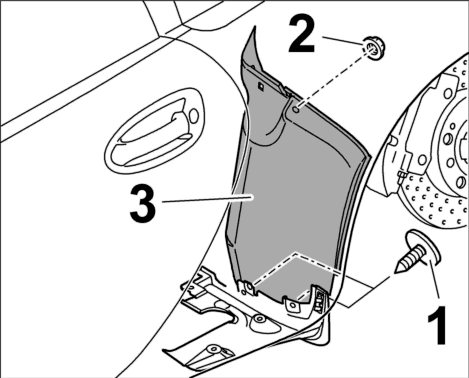

Fig 2: Installing rear wheel housing liner
GP00012035Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Insert wheel housing liner -3-  . See Fig 2.

2. Screw in fastening screws -1-  and tighten to the specified tightening torque→ Final tightening: 1.5 ftlb.  . See Fig 2.

3. Screw on fastening nuts -2-  and tighten to the specified tightening torque→ Final tightening: 1 ftlb.  . See Fig 2.
