Preparing connection areas of the body for installing the rear inner side section

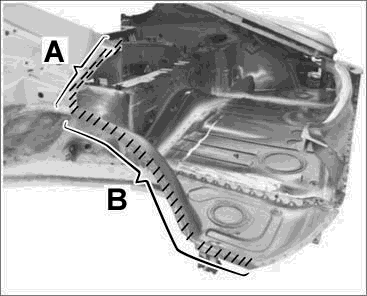

Fig 1: Cleaning the welding areas
GP00011927Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked areas -A-  and -B-  using a hot-air gun or rotary brush. Grind the connecting flanges until bare. See Fig 1.

2. Coating spot-weld flange areas with zinc powder paint

2.1. Coat spot-weld flange areas with zinc powder paint.
