Installing rear inner side section

1. Fitting rear inner side section to the body

1.1. Fit the rear inner side section to the body and fix in place with tensioning clamps.

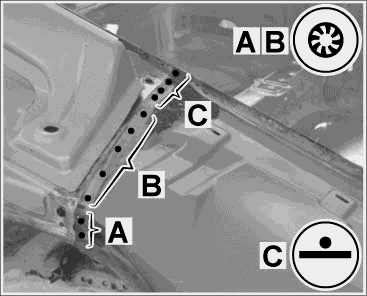

Fig 1: Welding in rear inner side section

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Welding in rear inner side section

2.1. Plug-weld the rear inner side section in areas -A- and -B- using inert gas. See Fig 1.

2.2. Resistance spot-weld the rear inner side section in area -C- . See Fig 1.

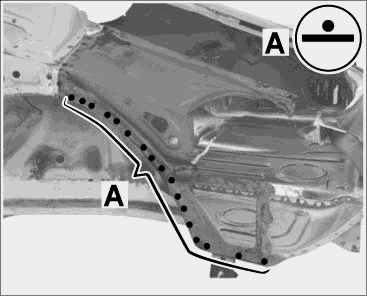

Fig 2: Welding in rear inner side section

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Welding in rear inner side section

3.1. Resistance spot-weld the rear inner side section in area -A- . See Fig 2.
