Preparing connection areas of body for installing the closing cross member

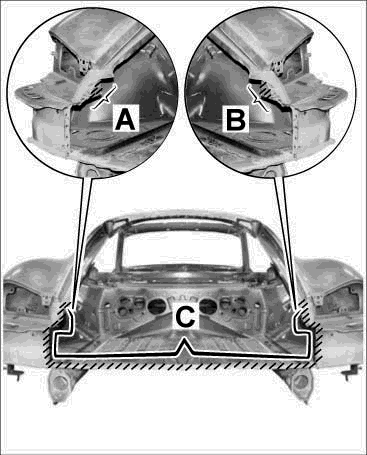

Fig 1: Preparing connection areas of body for installing the closing cross member
GP00011643Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked areas -A, B, C-  using a hot-air gun or rotary brush. Grind the connecting flanges until bare. See Fig 1.

2. Coating spot-weld flange areas with zinc powder paint

2.1. Coat spot-weld flange areas with zinc powder paint.
