Ambient Temperature Sensor / Switch HVAC: Service and Repair

Removing And Installing Outside Temperature Sensor

Removing outside temperature sensor







1. Switch off ignition and remove ignition key.

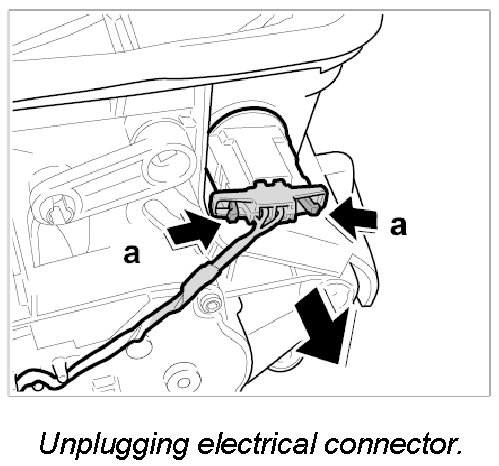

2. Release electrical connector to the temperature sensor -a- and unplug it.

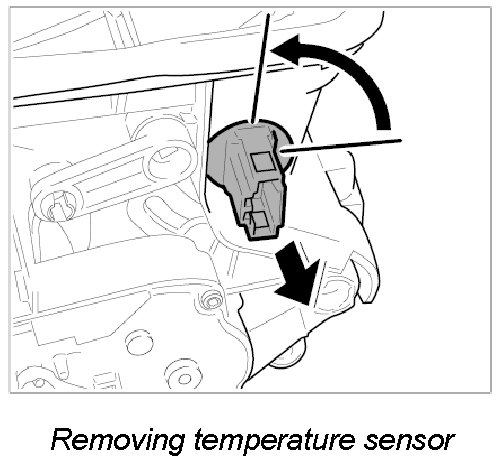

3. Turn temperature sensor through 90 degrees and pull it out of the heating/fresh-air unit.

Installing outside temperature sensor
1. Switch off ignition and remove ignition key.

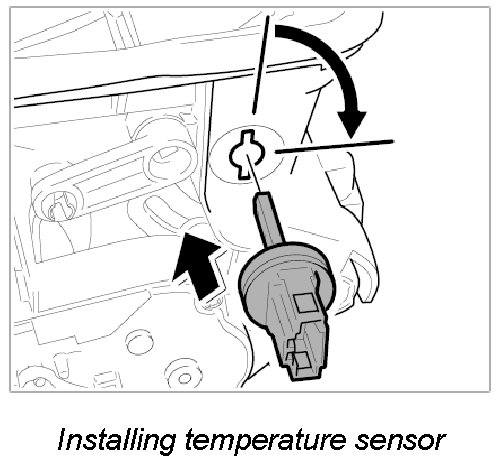

2 Insert temperature sensor into the heating/fresh air unit and turn through 90 degrees.

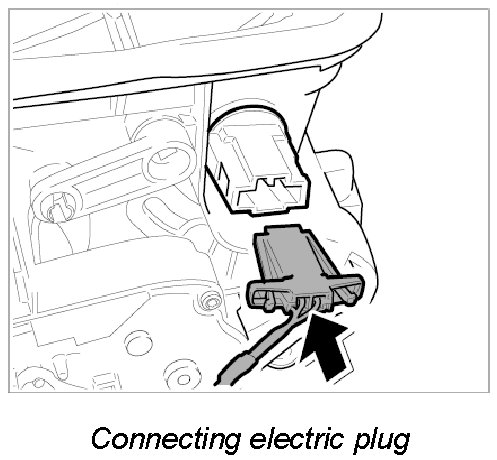

3. Push electrical connector into temperature sensor until it clicks into place.
