Removal and Replacement

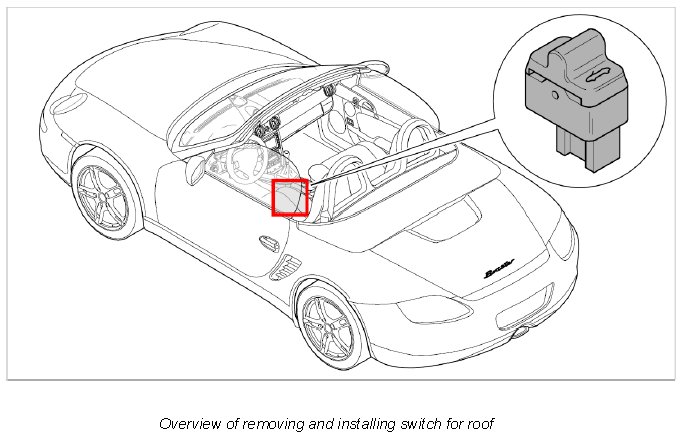

Removing And Installing Switch For Roof

Preliminary work

Remove centre console. Refer to Removing and installing centre console.

Removing switch for roof







1. Turn over centre console.
2. Release connector -1- and remove it -arrow a-.
3. Press locking lugs on switch for roof outwards -2- (-arrows b-) and push switch for roof up and out of the centre console.







Installing switch for roof

1. Insert switch for roof -1- into the centre console from above -2- until the locking lugs are felt to engage.







2. Turn over centre console.
3. Push connector -1- onto switch for roof -2- until it is felt to engage.







Subsequent work

Install centre console. Refer to Removing and installing centre console.
