Procedures

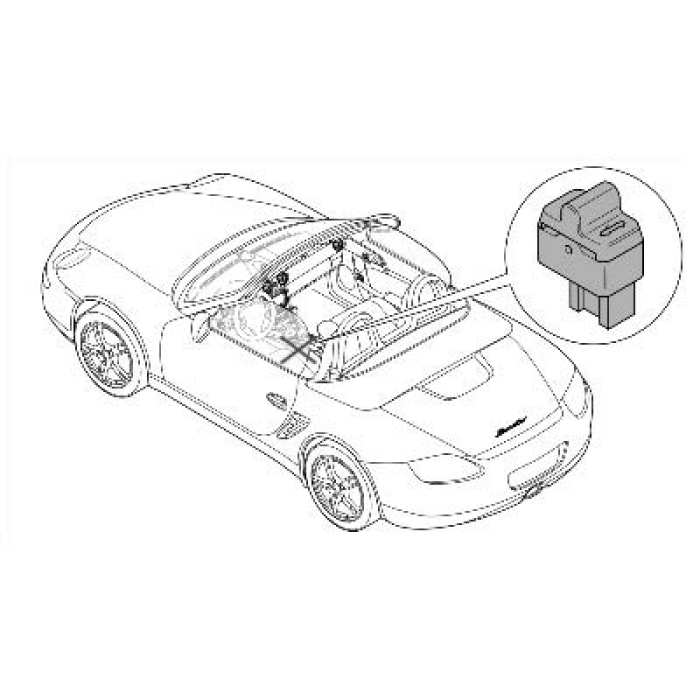

616019 Removing And Installing Switch For Roof

Preliminary work
Remove centre console.

Removing switch for roof

Overview Of Removing And Installing Switch For Roof:

1. Turn over centre console.
2. Release connector -1- and remove it -arrow a-.
3. Press locking lugs on switch for roof outwards -2- (-arrows b-) and push switch for roof up and out of the centre console.

Installing switch for roof
1. Insert switch for roof -1- into the centre console from above -2- until the locking lugs are felt to engage.

Installing Switch For Roof:

2. Turn over centre console.

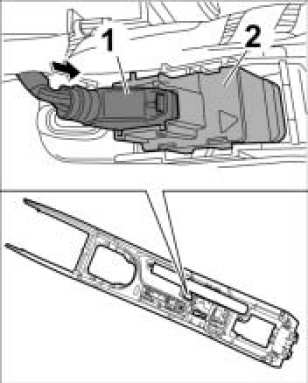

3. Push connector -1- onto switch for roof -2- until it is felt to engage.

Pushing Connector Onto Switch For Roof:

Subsequent work
Install centre console.
