Headlamp Switch: Service and Repair

Removing And Installing Main Light Switch

Removing main light switch







Switch off ignition and remove ignition key.

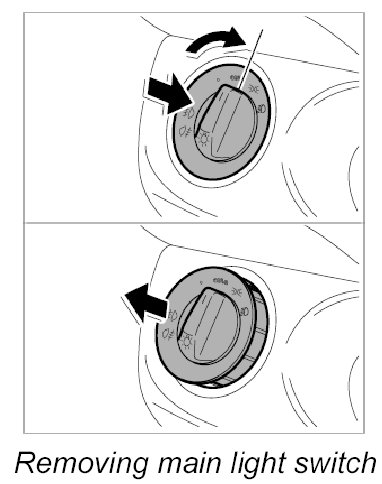

1. Press in rotary knob on the light switch (but not to the limit) and turn the switch to the right.
2. Pull the light switch out.

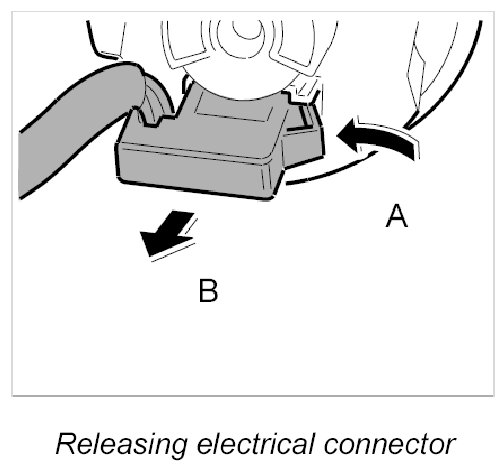

3. Release -A- and remove -B- electrical connector.

Installing main light switch

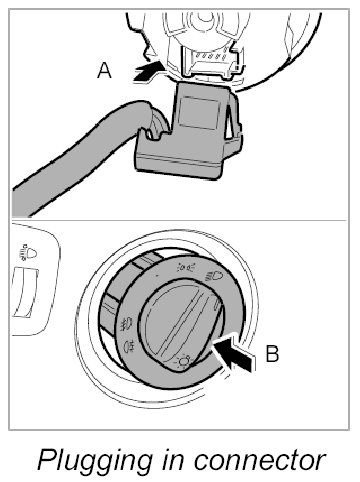

1. -A- Insert the light switch connector until it is felt to engage.
2. -B- Push in the light switch to its limit and turn the rotary knob anti-clockwise.
