Backup Lamp Switch: Service and Repair

Removing And Installing Switch For Reversing Light

Technical values







Preliminary work
Remove rear underbody cover.

Removing switch for reversing light

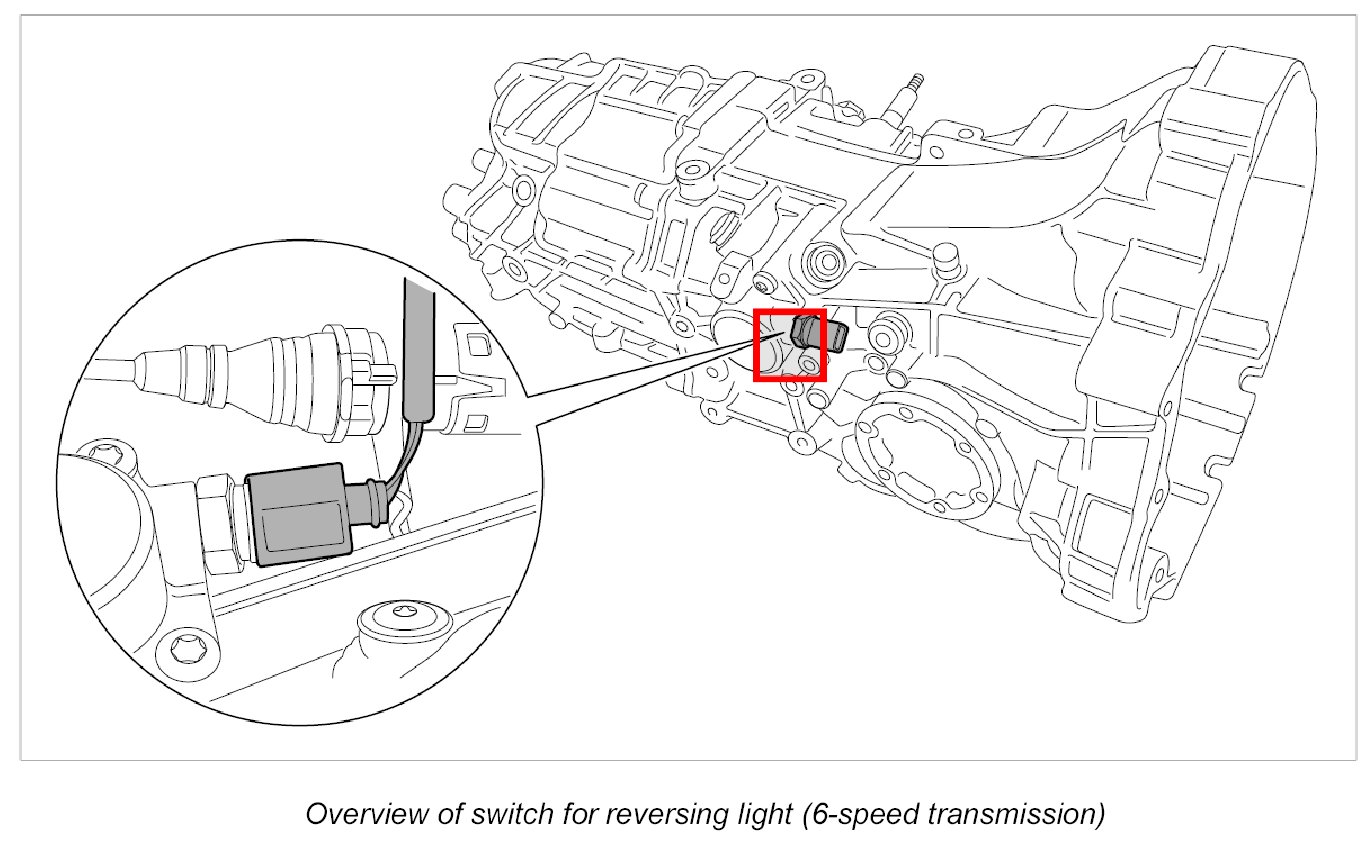

Removing switch for reversing light (6-speed transmission)

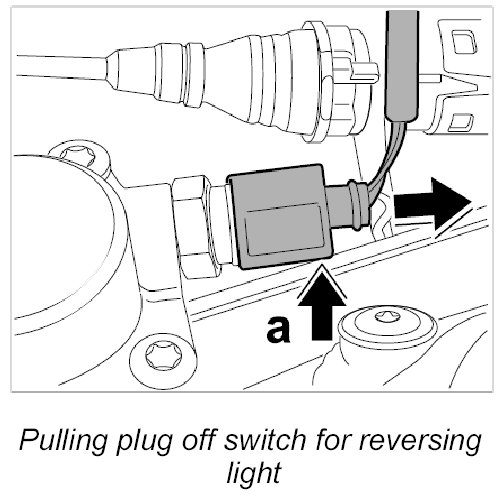

1. Release connector on switch for reversing light -Arrow a- and pull it off.

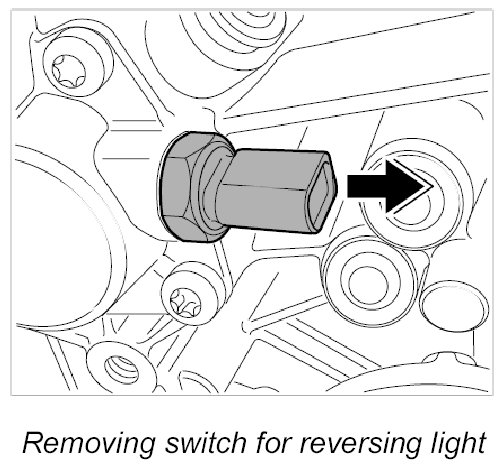

2. Unscrew and remove switch for reversing light.

Installing switch for reversing light

Installing switch for reversing light (6-speed transmission)







1. Install switch for reversing light. - Tightening torque: 15 ft. lbs.

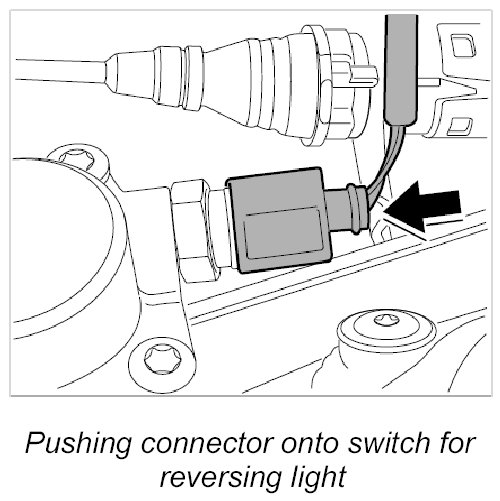

2. Push connector onto switch for reversing light until it is felt to engage.
3. Check operation of switch for reversing light.

Subsequent work
Install rear underbody cover.
