Radio CDR 24 - Sheet 20A



Radio CDR 24 - Sheet 20A

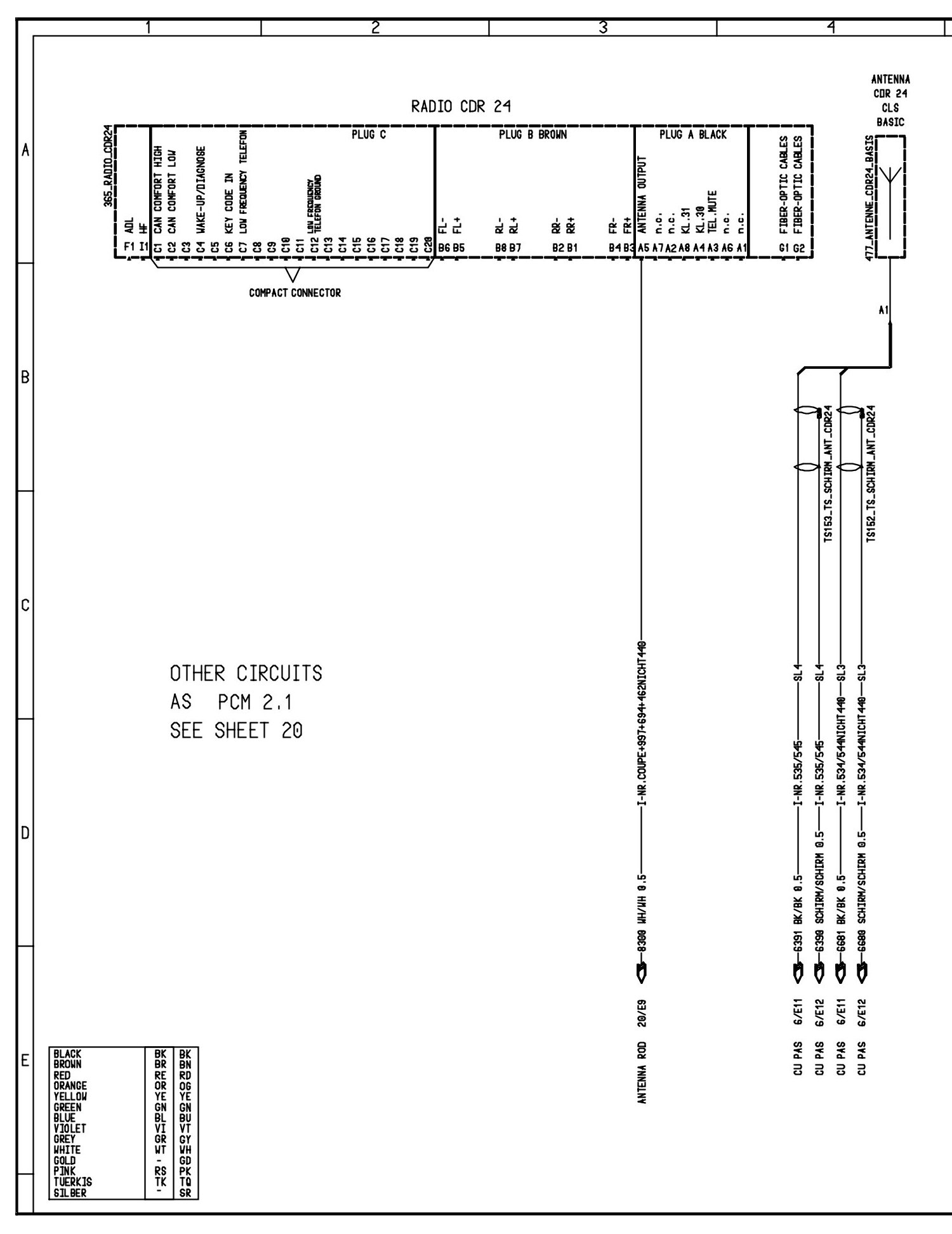

Radio CDR 24 - Sheet 20A (Part 1):

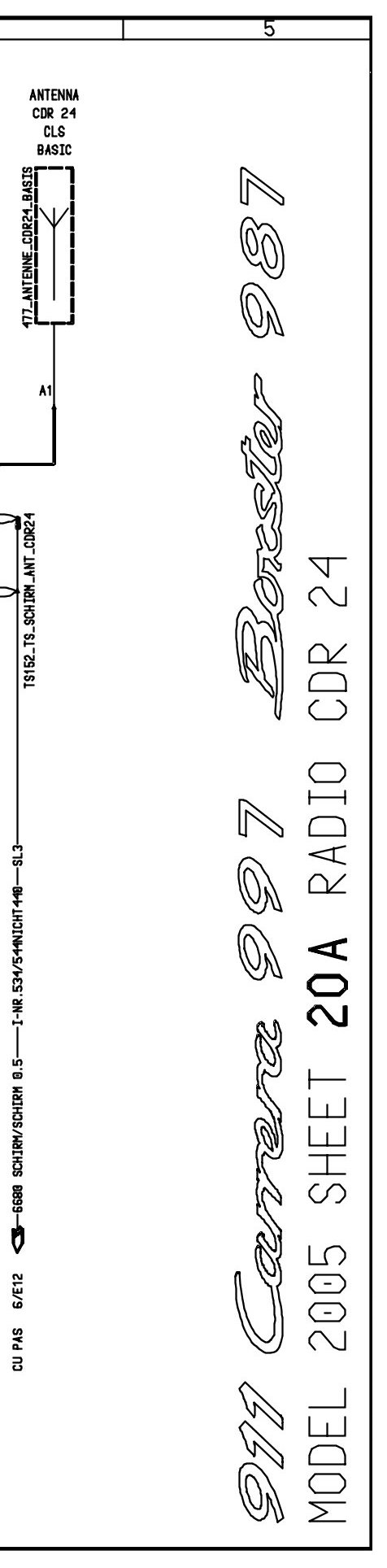

Radio CDR 24 - Sheet 20A (Part 2):






Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
