Audio Option Pack Bose C2 - Sheet 21C

Audio Option Pack Bose C2 - Sheet 21C

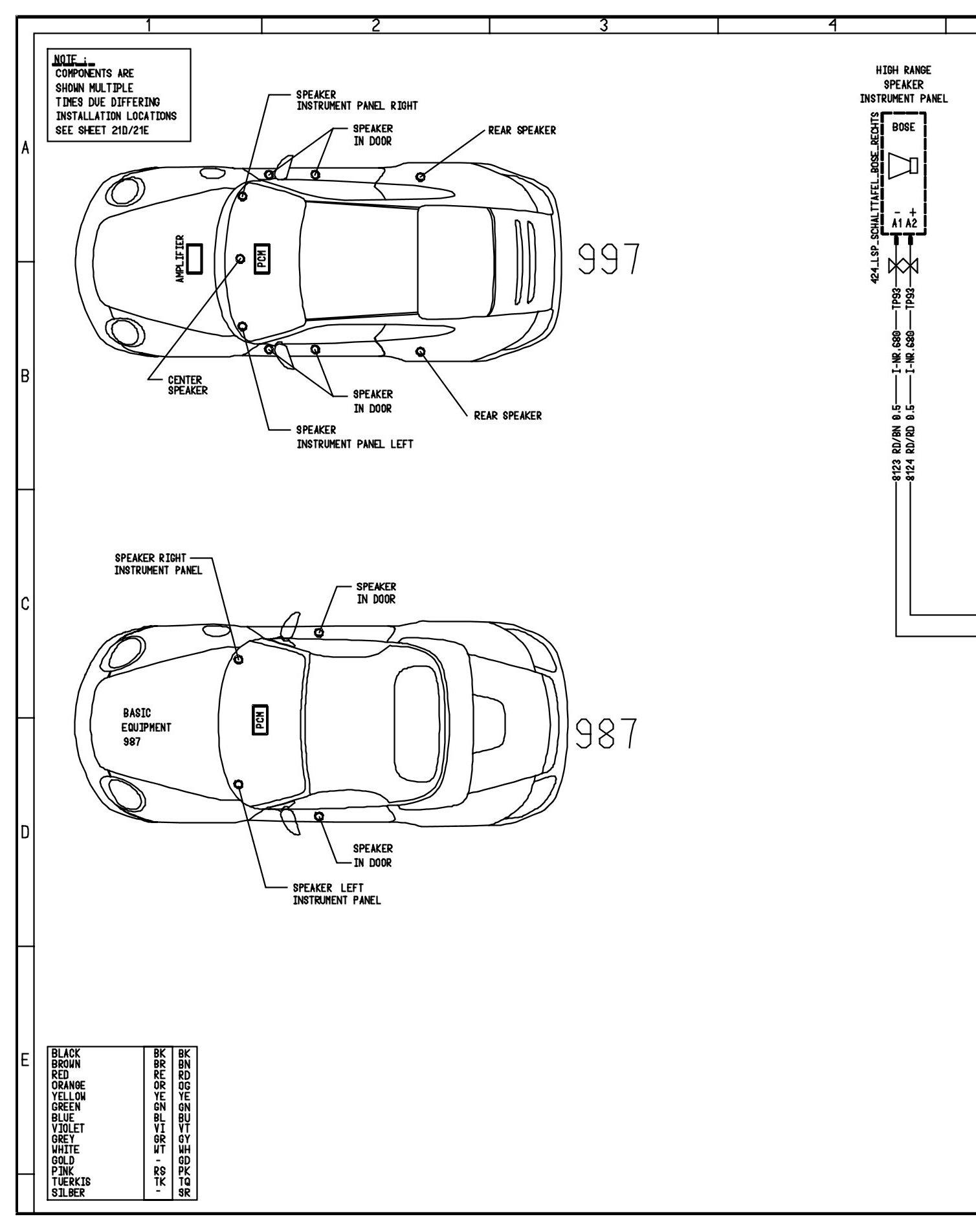

Audio Option Pack Bose C2 - Sheet 21C (Part 1):

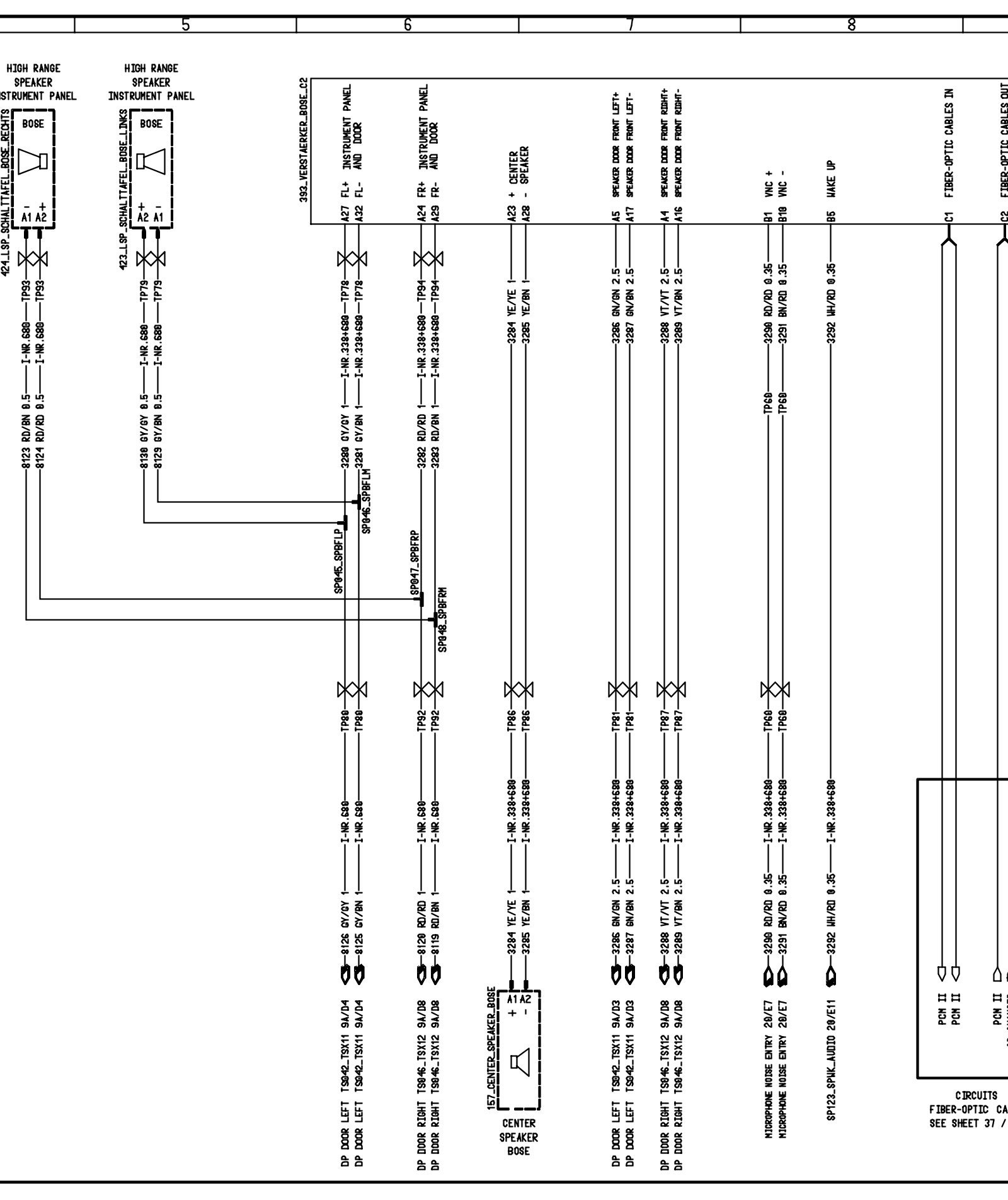

Audio Option Pack Bose C2 - Sheet 21C (Part 2):

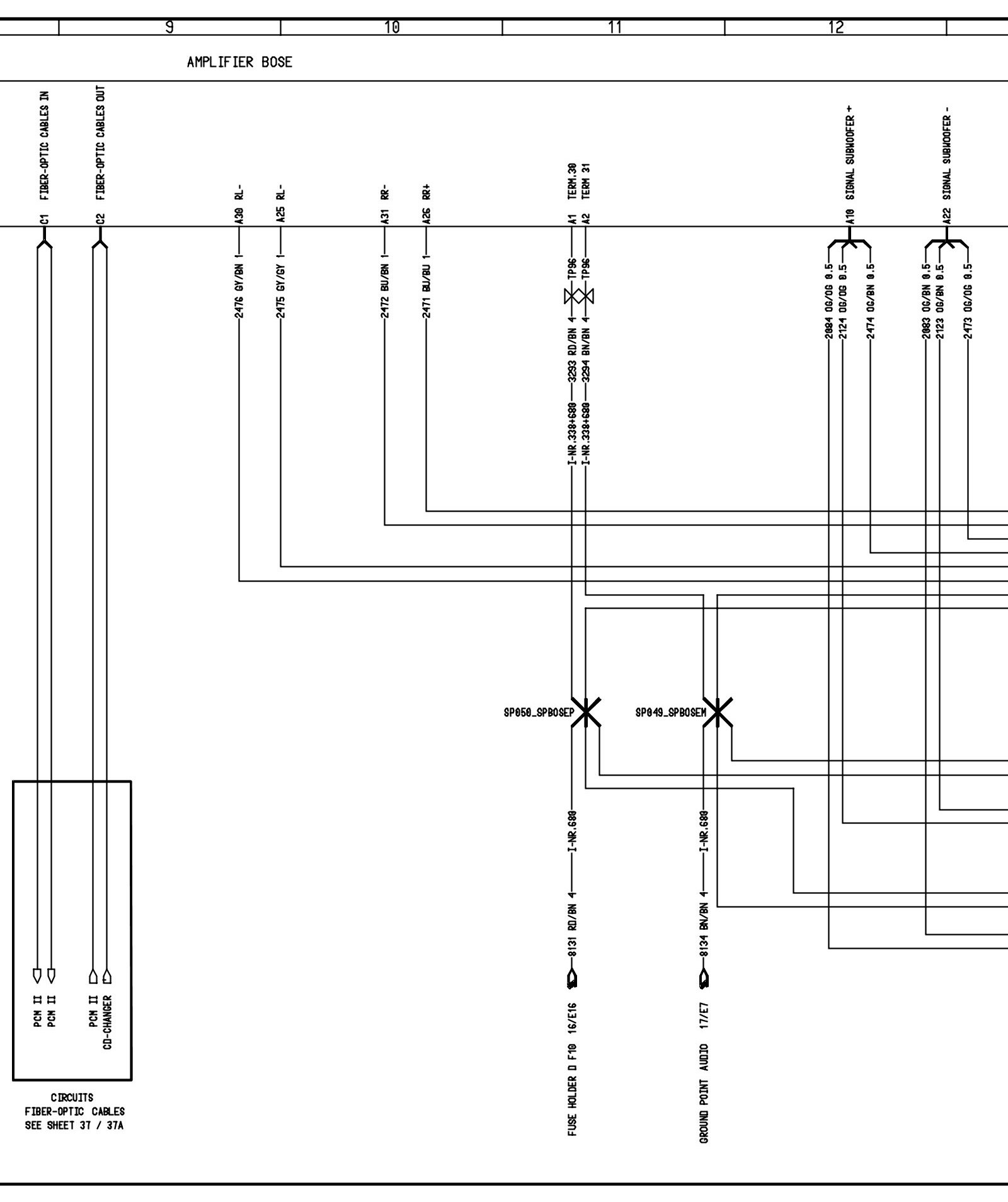

Audio Option Pack Bose C2 - Sheet 21C (Part 3):

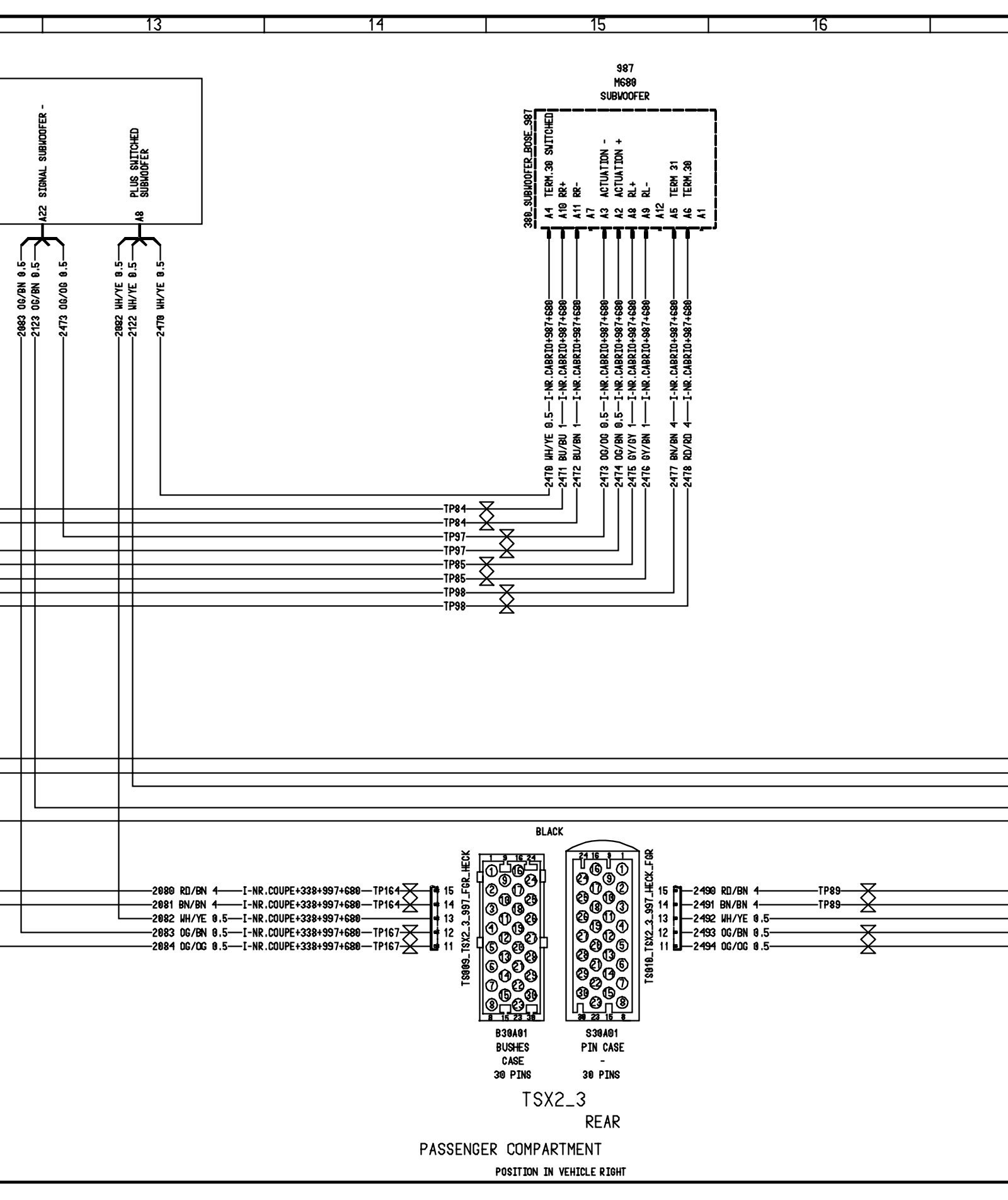

Audio Option Pack Bose C2 - Sheet 21C (Part 4):

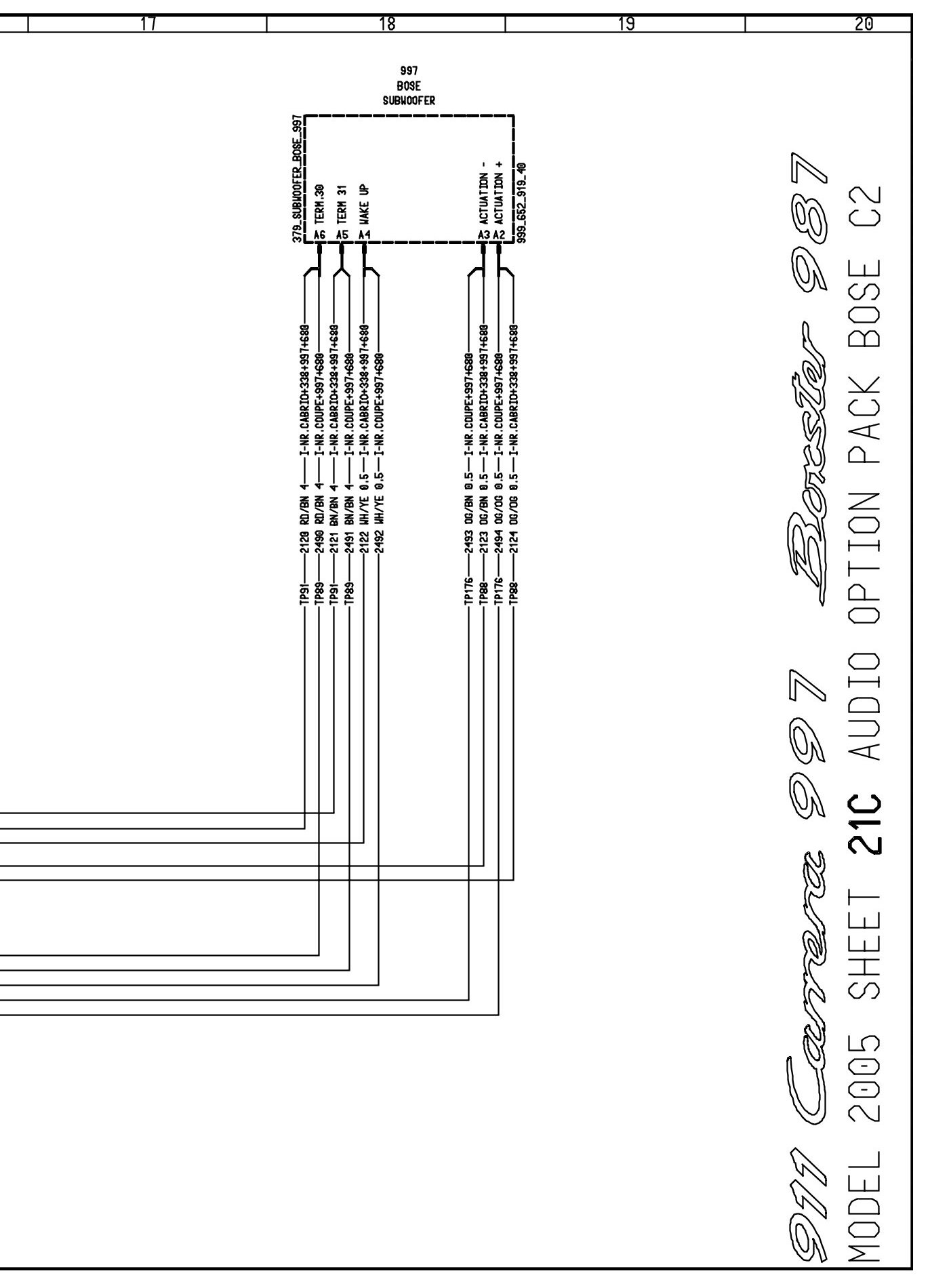

Audio Option Pack Bose C2 - Sheet 21C (Part 5):

Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
