Wiring Loom Centre Console - Sheet 40

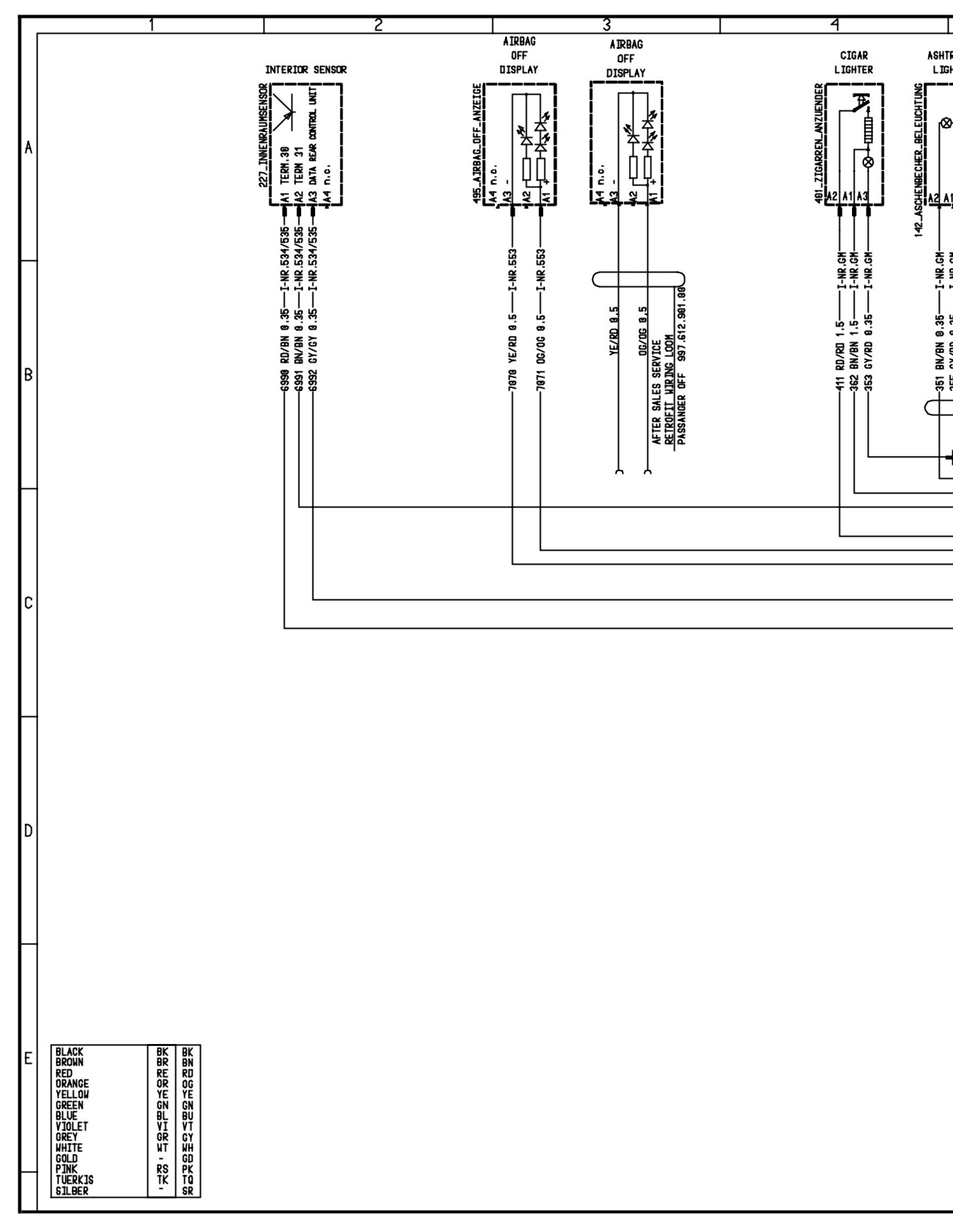

Wiring Loom Centre Console - Sheet 40 (Part 1):

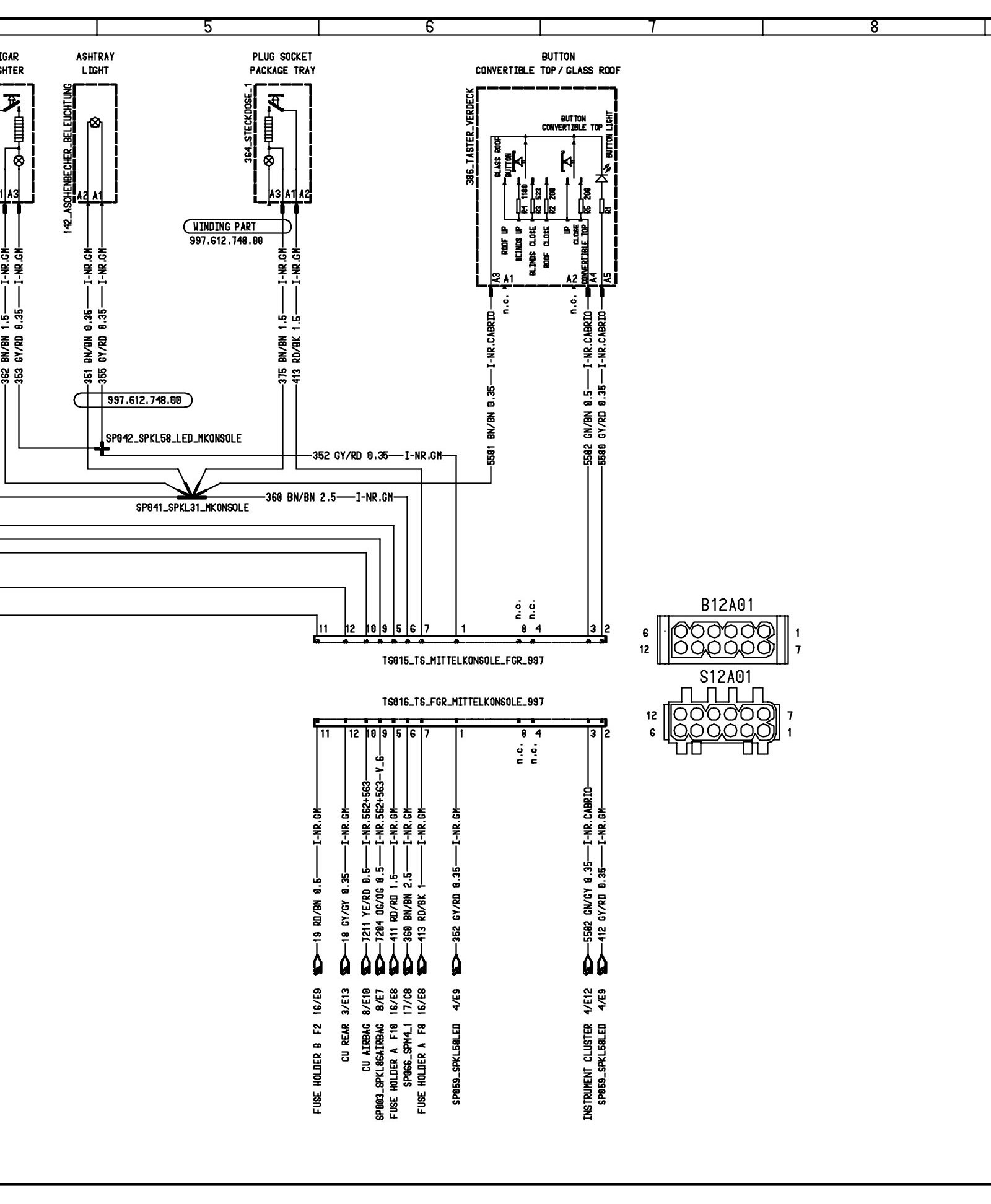

Wiring Loom Centre Console - Sheet 40 (Part 2):



Wiring Loom Centre Console - Sheet 40 (Part 3):
