Tiptronic 987 - Sheet 11A
Tiptronic 987 - Sheet 11A

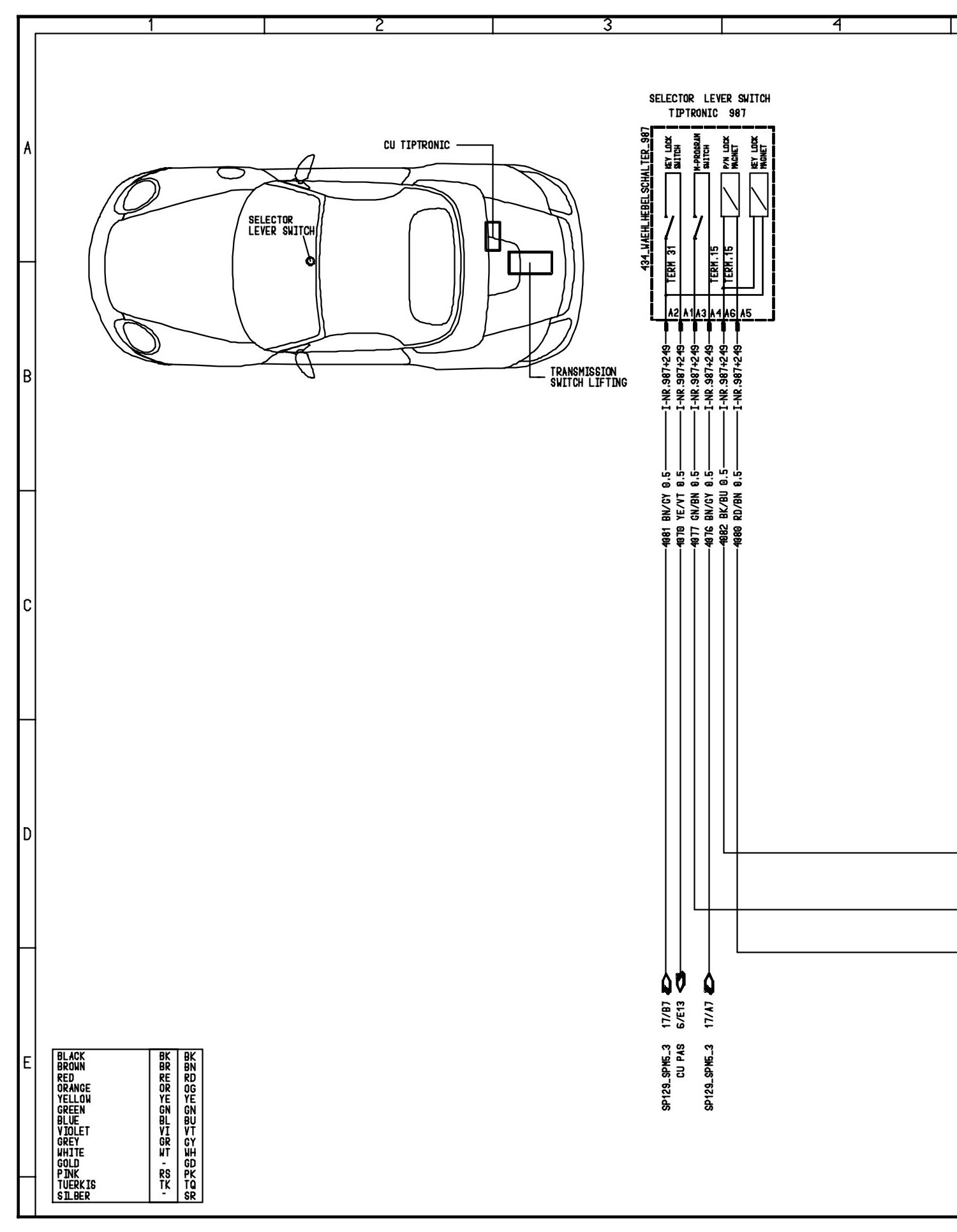

Tiptronic 987 - Sheet 11A (Part 1):

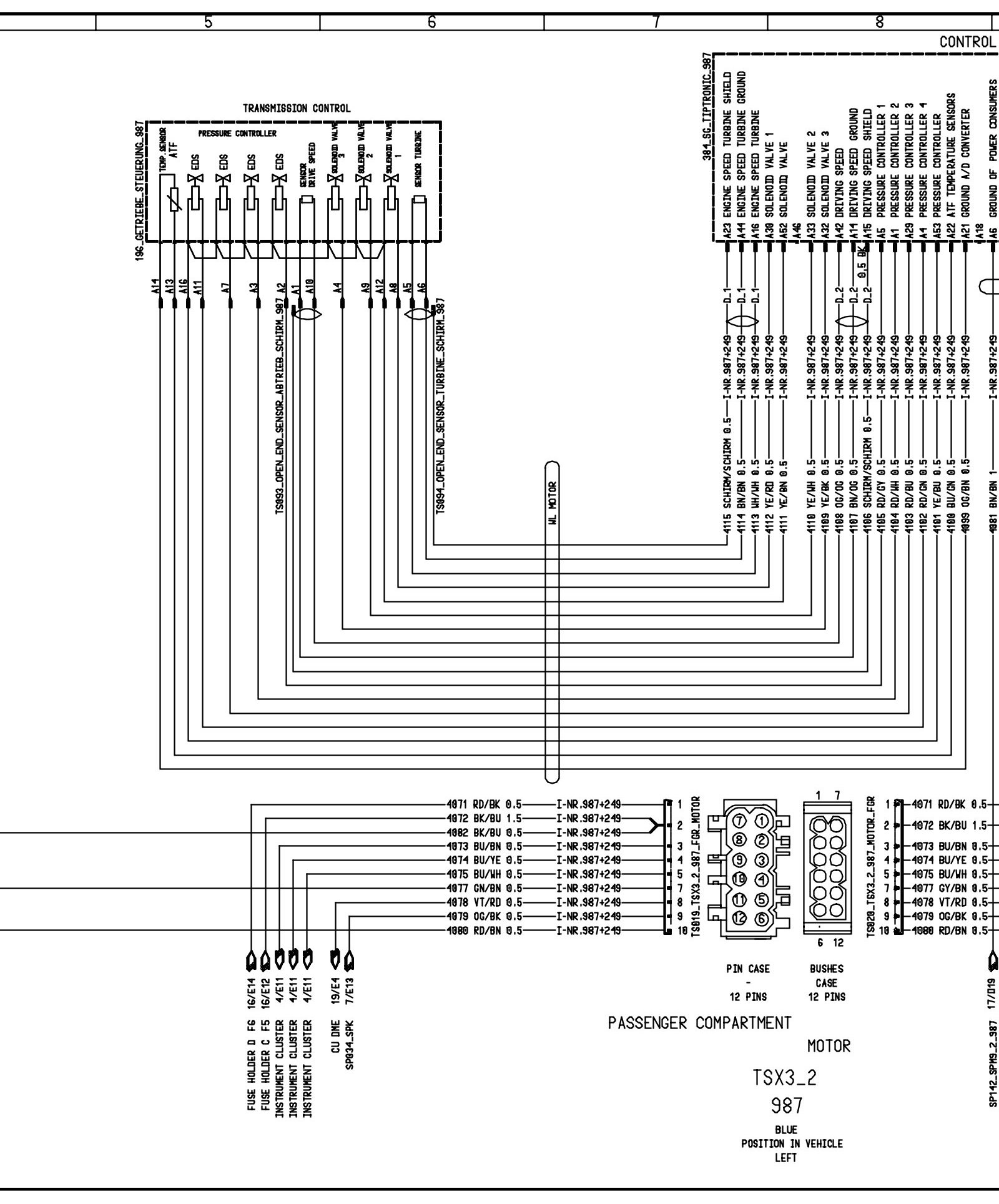

Tiptronic 987 - Sheet 11A (Part 2):

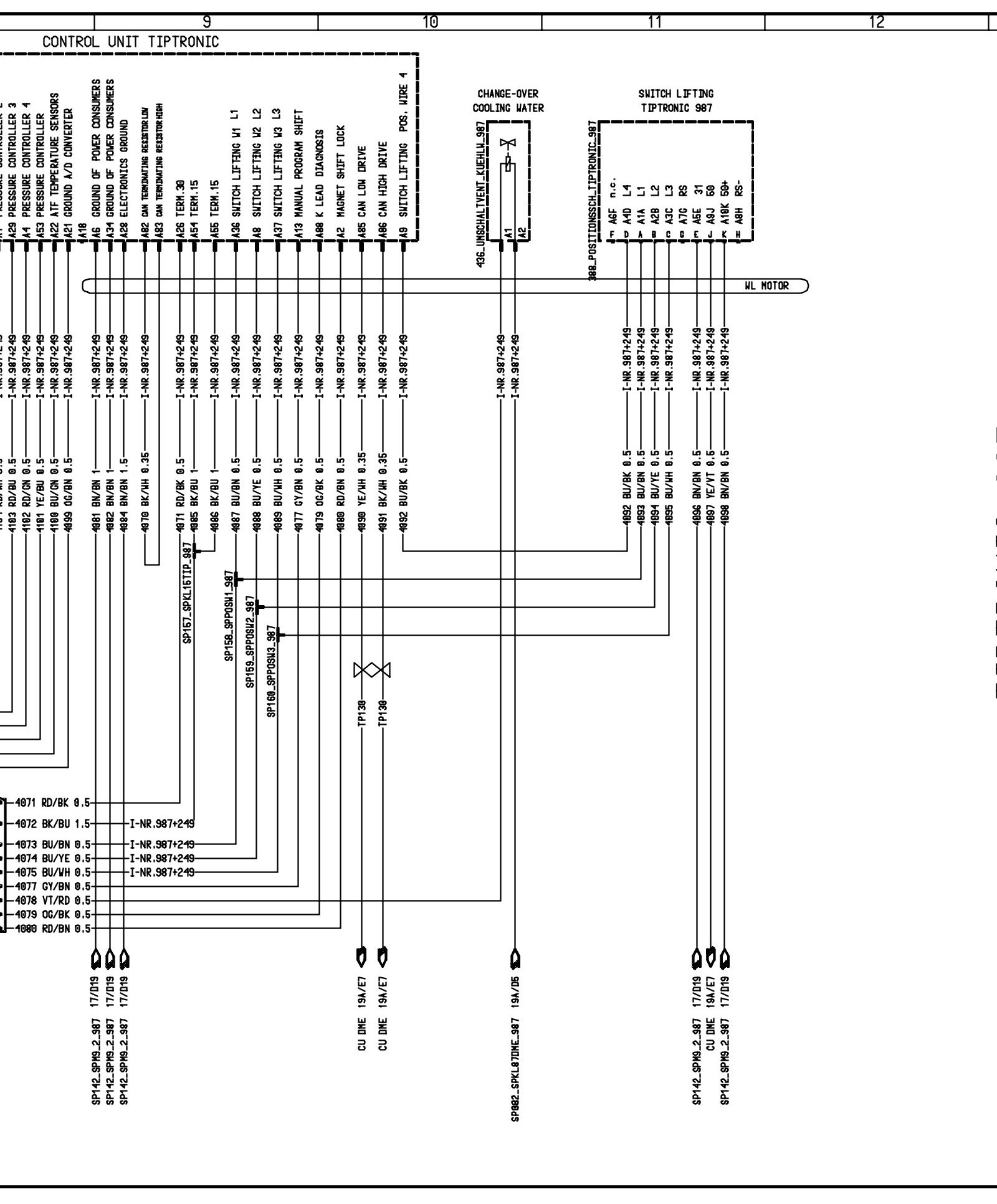

Tiptronic 987 - Sheet 11A (Part 3):

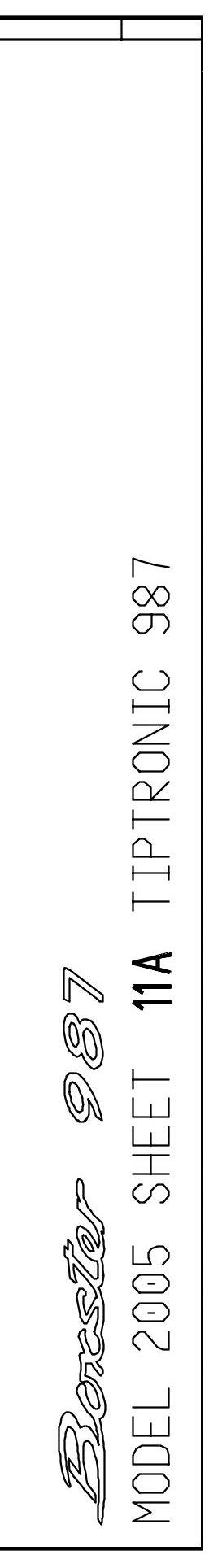

Tiptronic 987 - Sheet 11A (Part 4):
