Telephone Telematik - Sheet 22

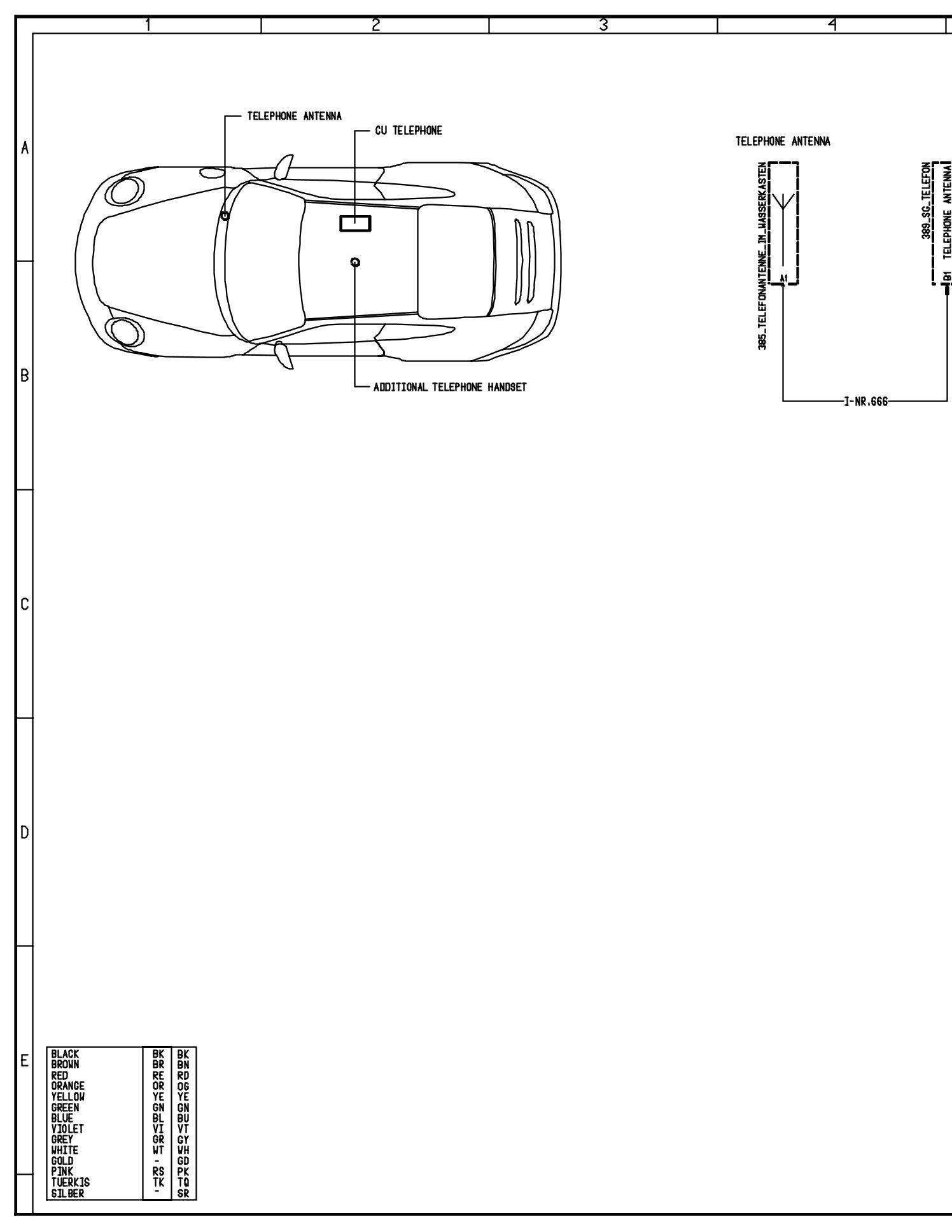

Telephone Telematik - Sheet 22 (Part 1):

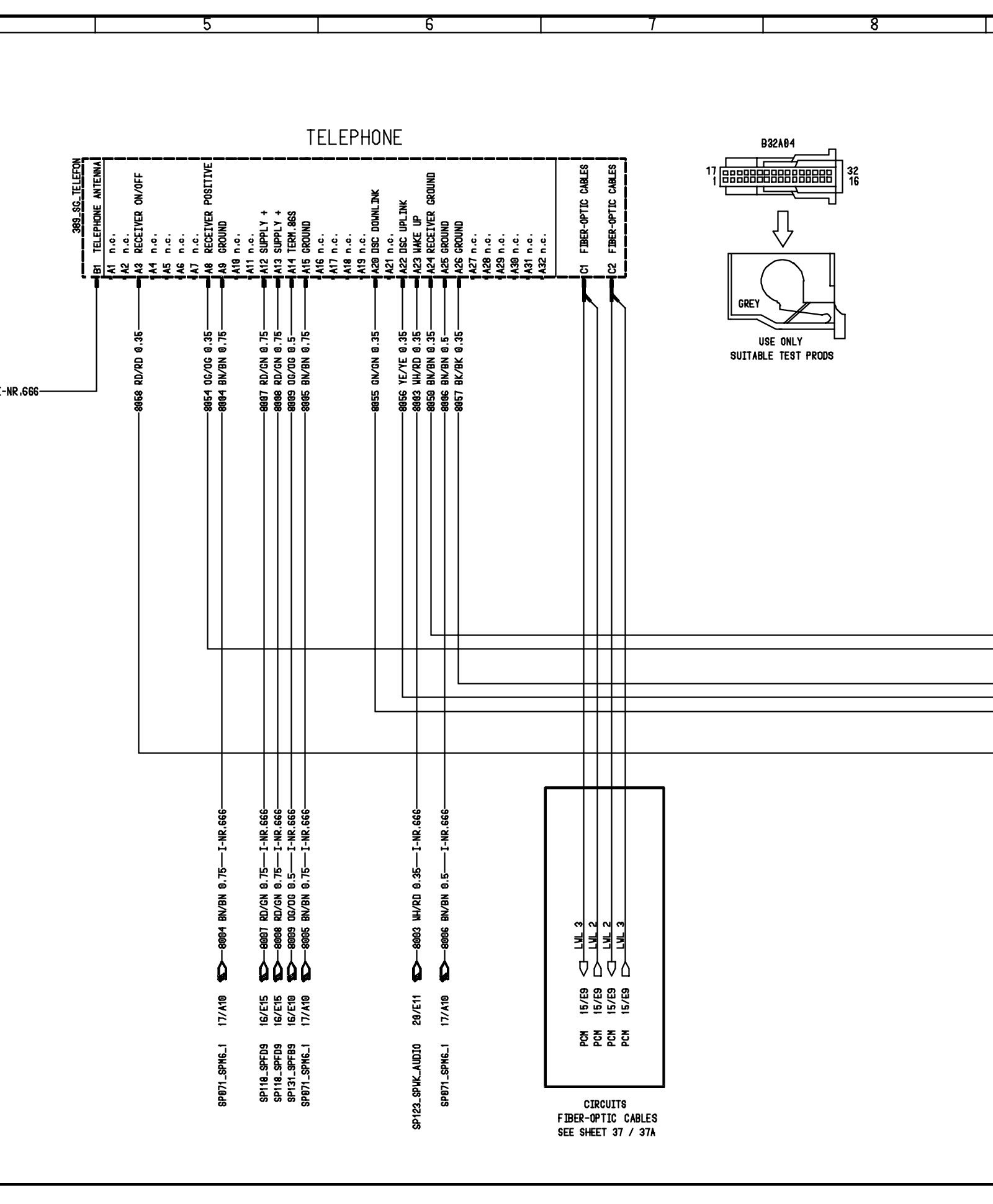

Telephone Telematik - Sheet 22 (Part 2):

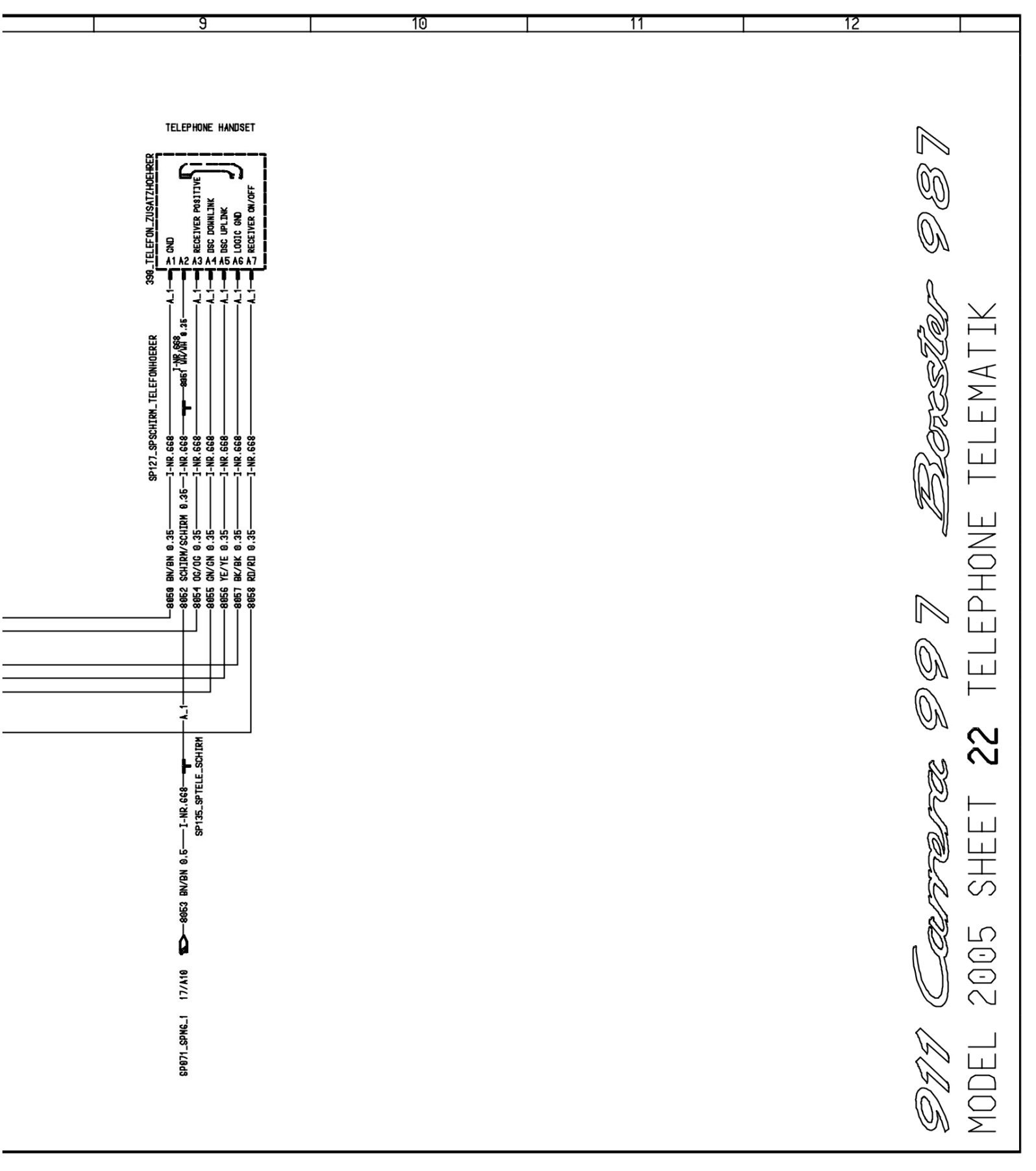

Telephone Telematik - Sheet 22 (Part 3):
