Tailgate - Sheet 3B
Tailgate - Sheet 3B

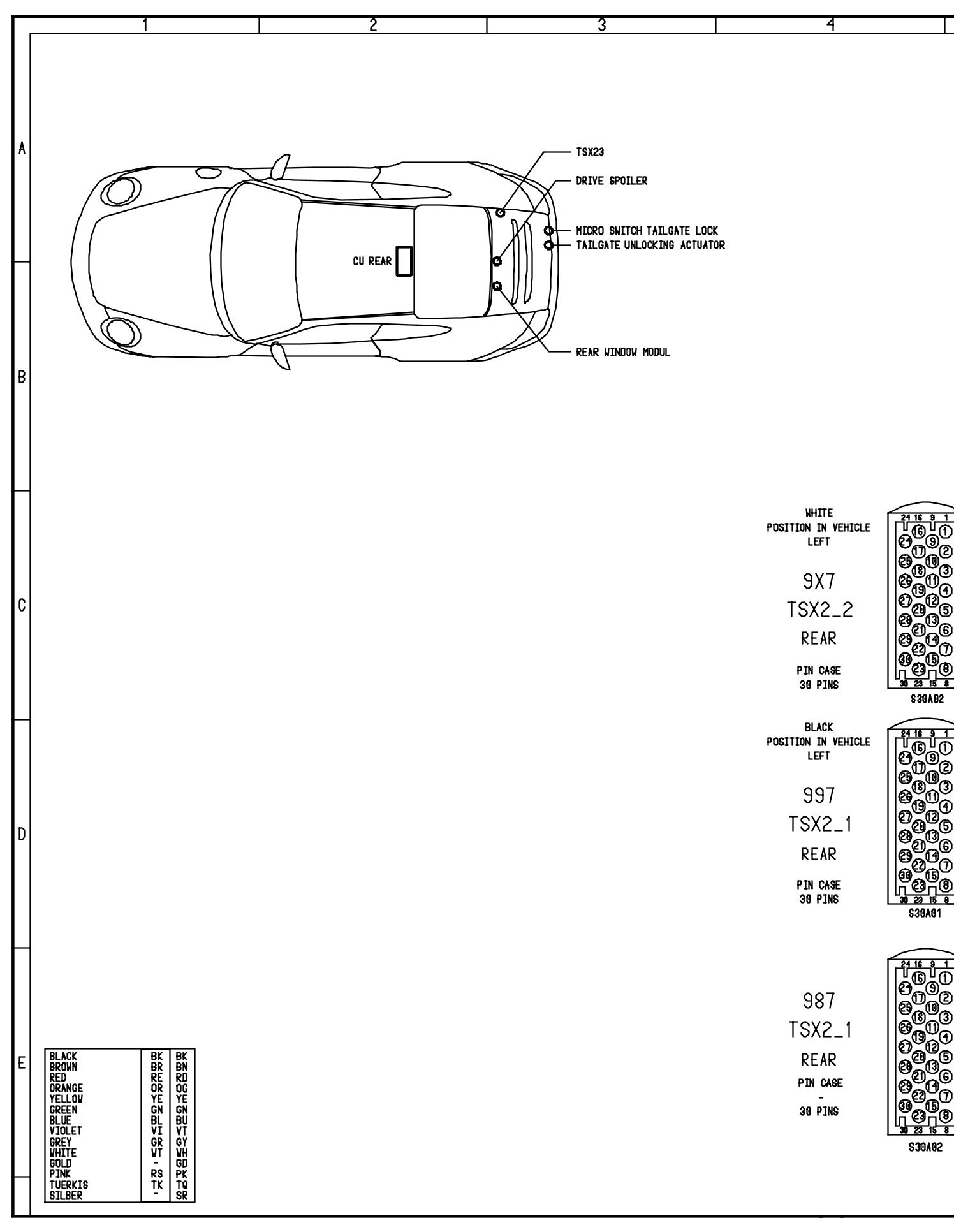

Tailgate - Sheet 3B (Part 1):

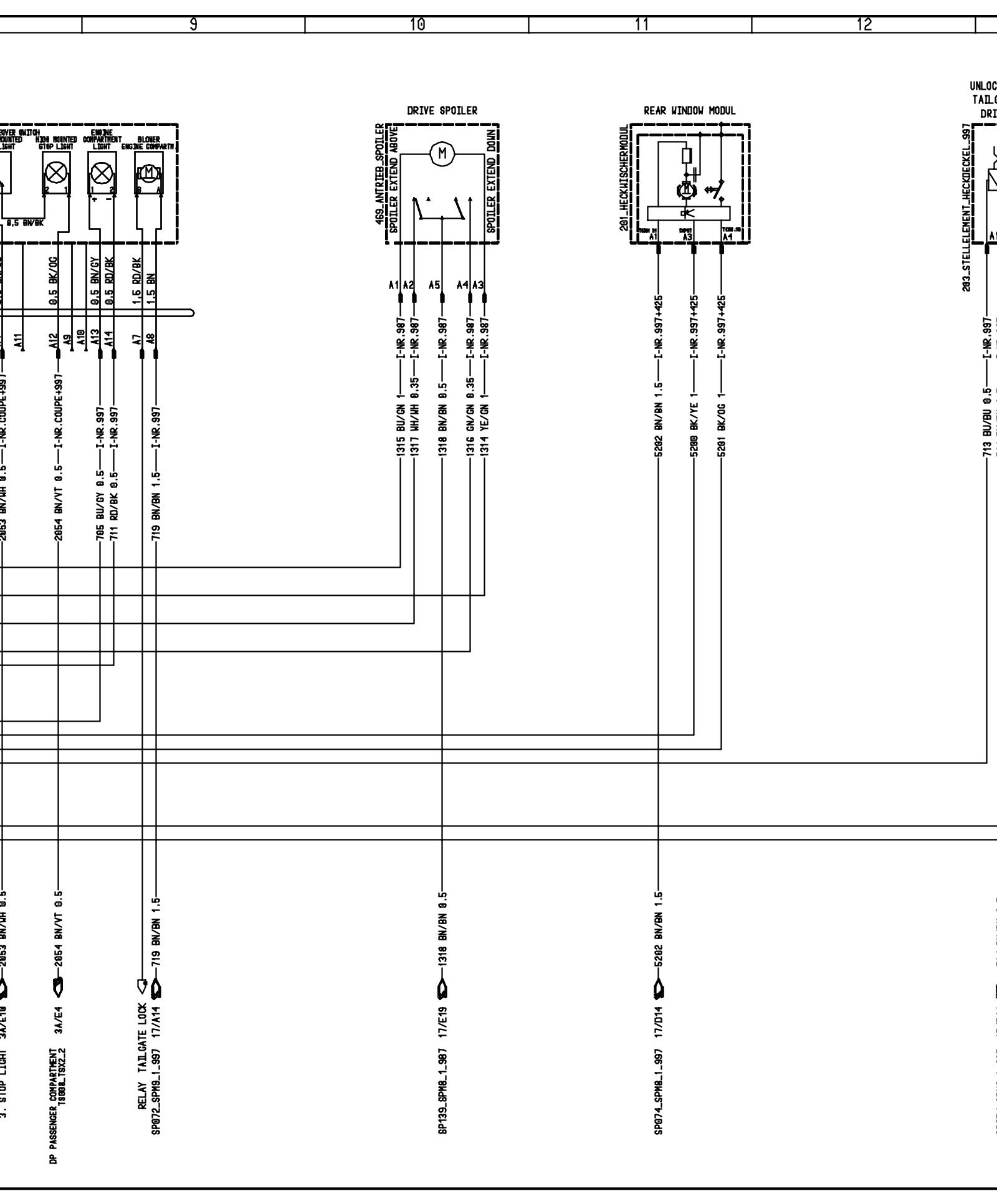

Tailgate - Sheet 3B (Part 2):

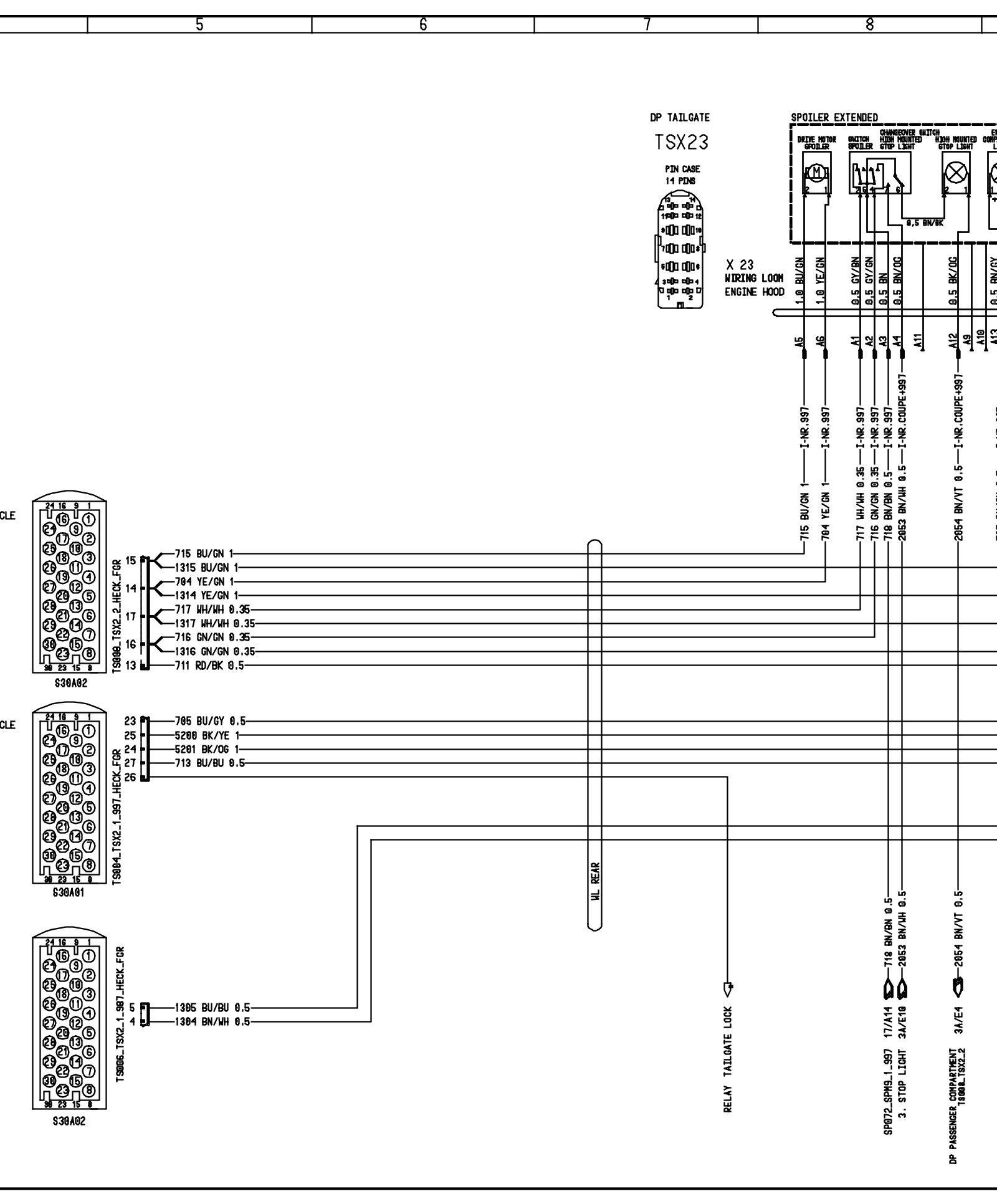

Tailgate - Sheet 3B (Part 3):

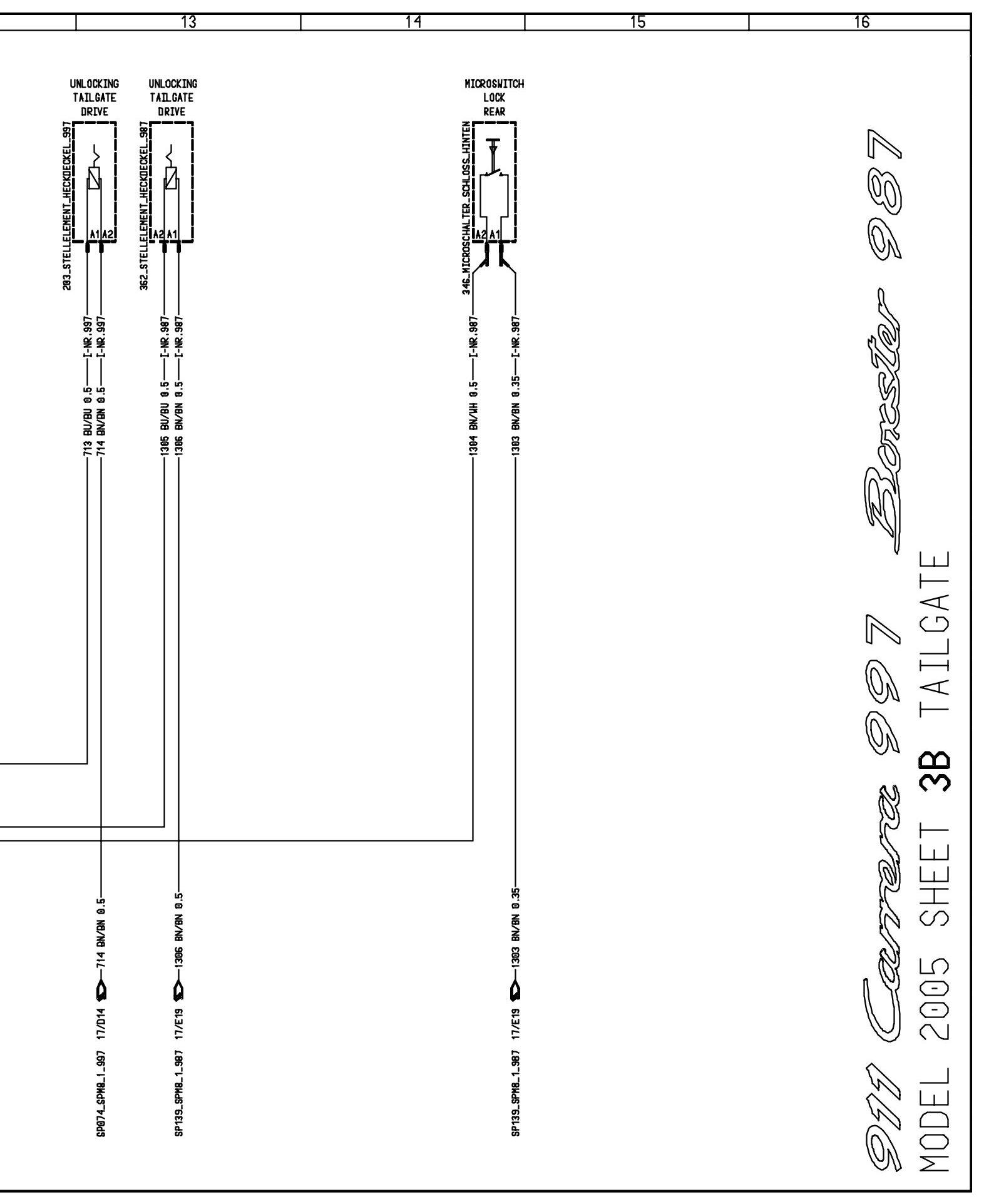

Tailgate - Sheet 3B (Part 4):
