Seat Basic Comfort - Sheet 10
Seat Basic Comfort - Sheet 10

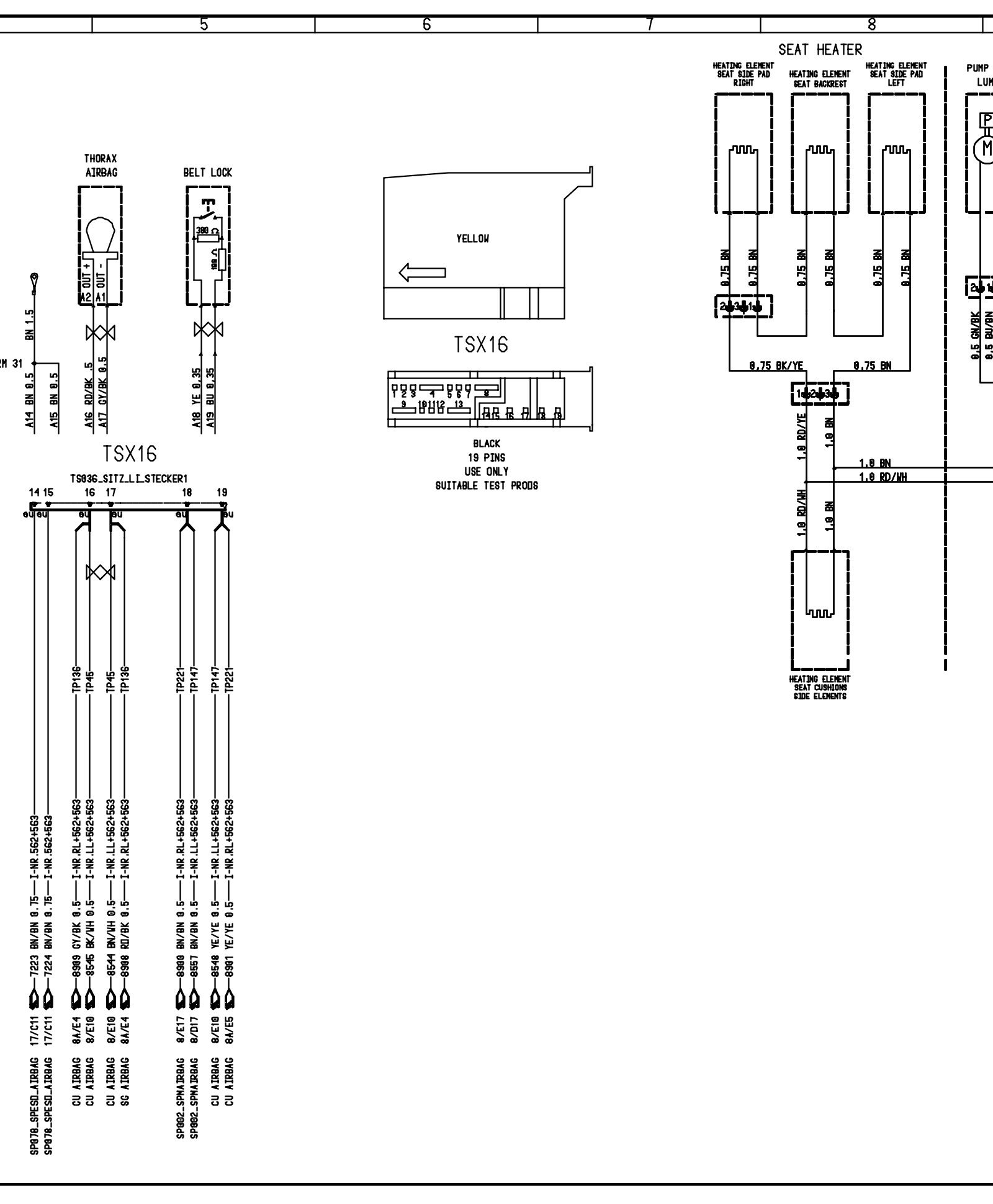

Seat Basic Comfort - Sheet 10 (Part 1):

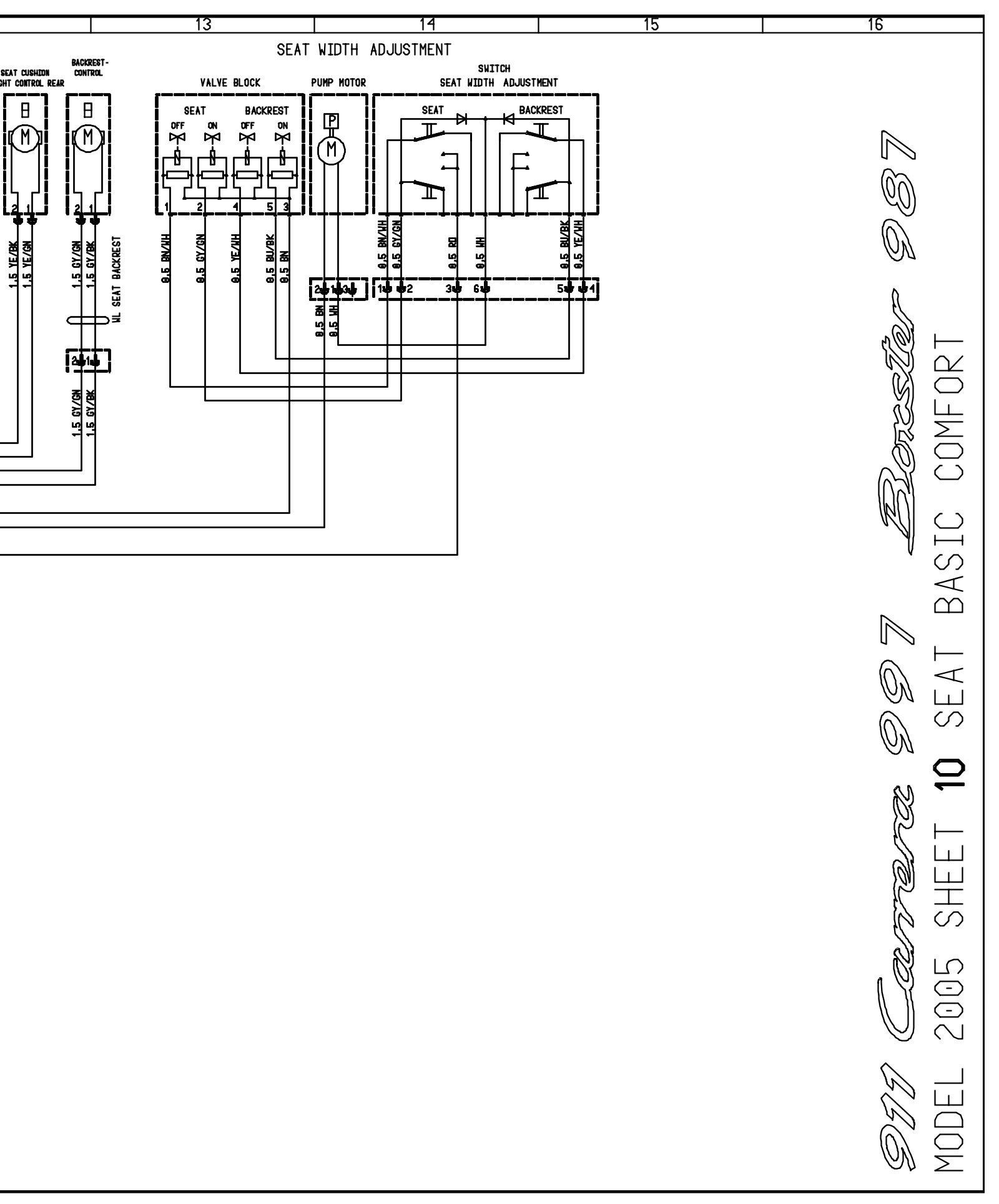

Seat Basic Comfort - Sheet 10 (Part 2):

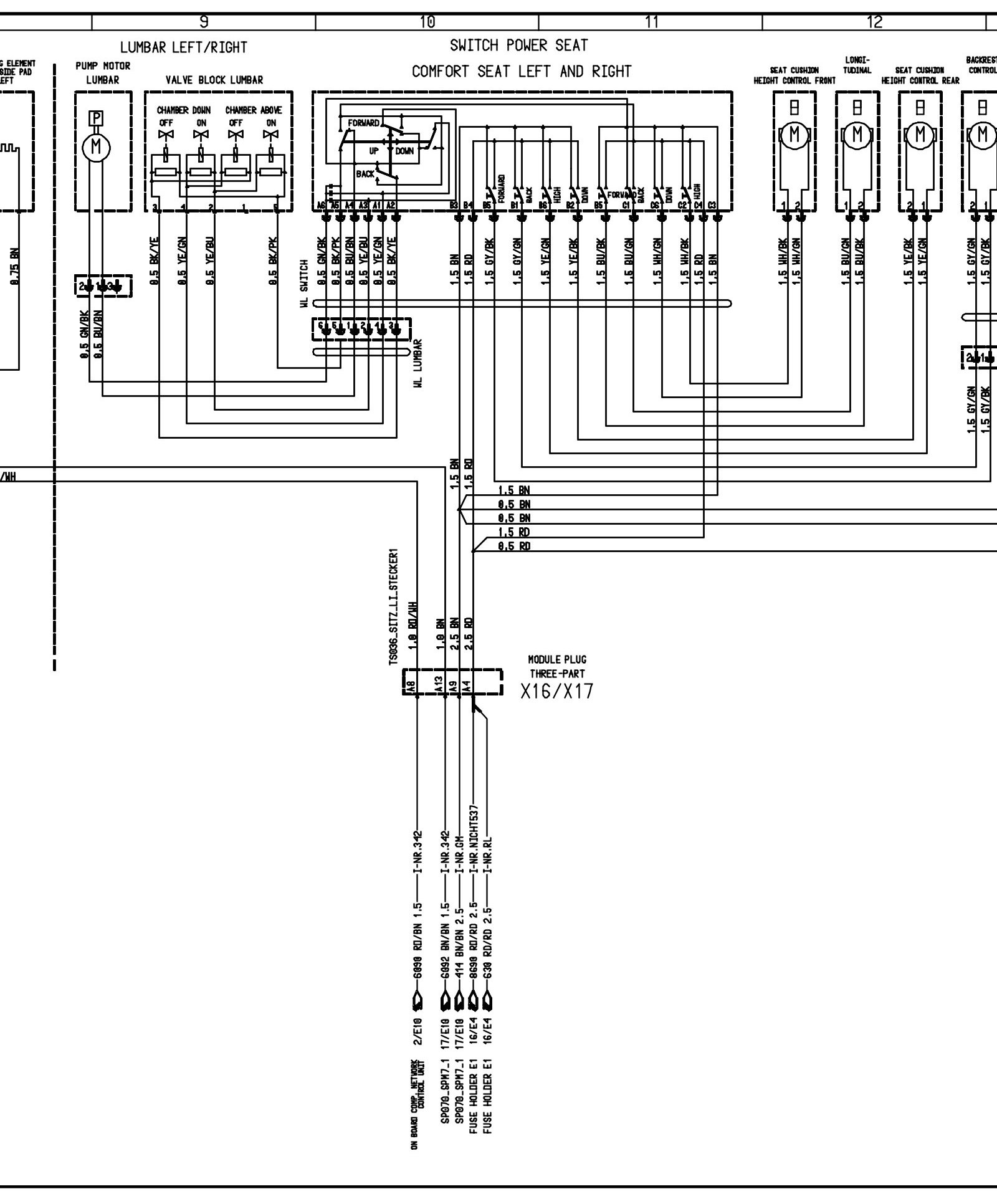

Seat Basic Comfort - Sheet 10 (Part 3):

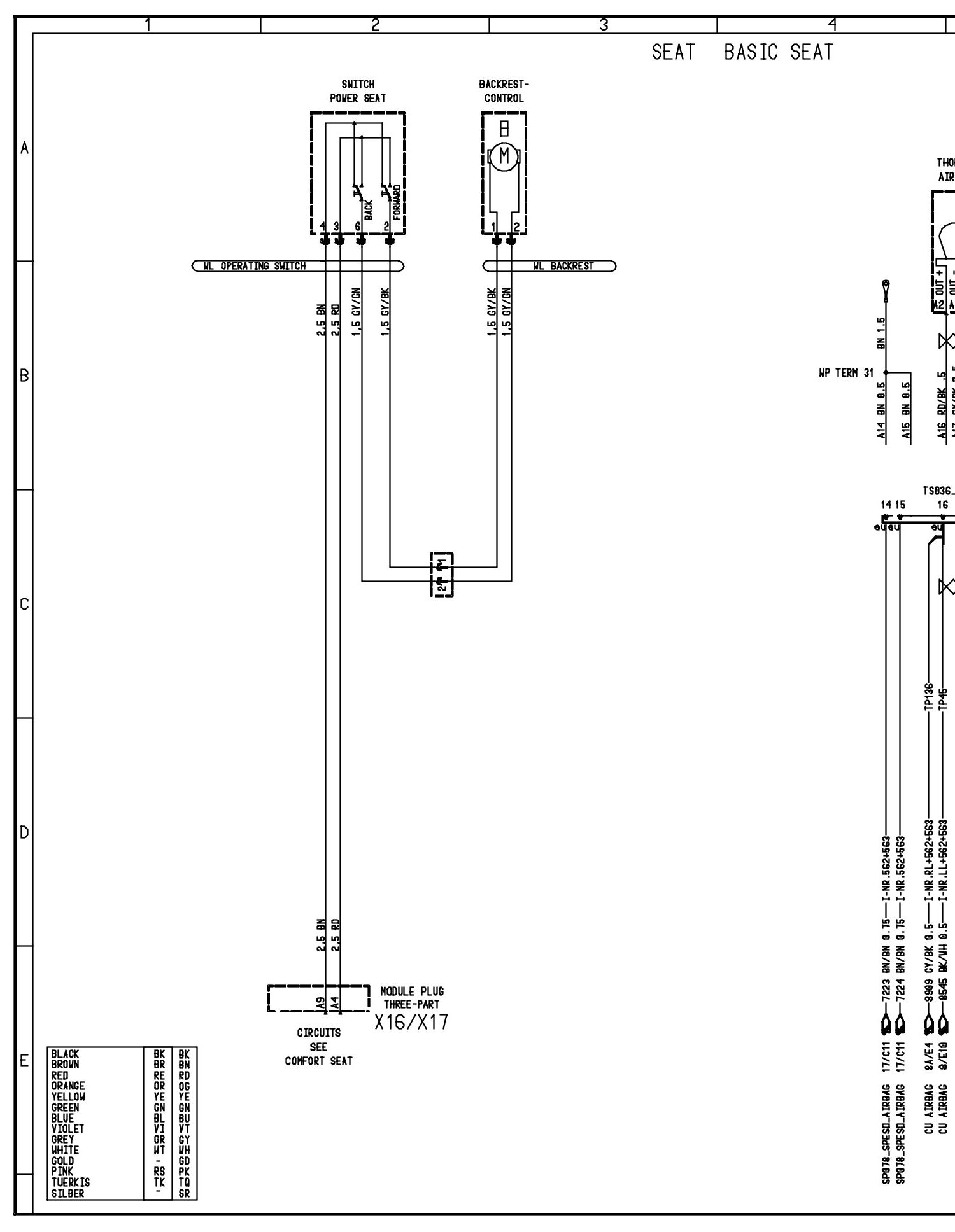

Seat Basic Comfort - Sheet 10 (Part 4):
