Roof System 987 - Sheet 15A

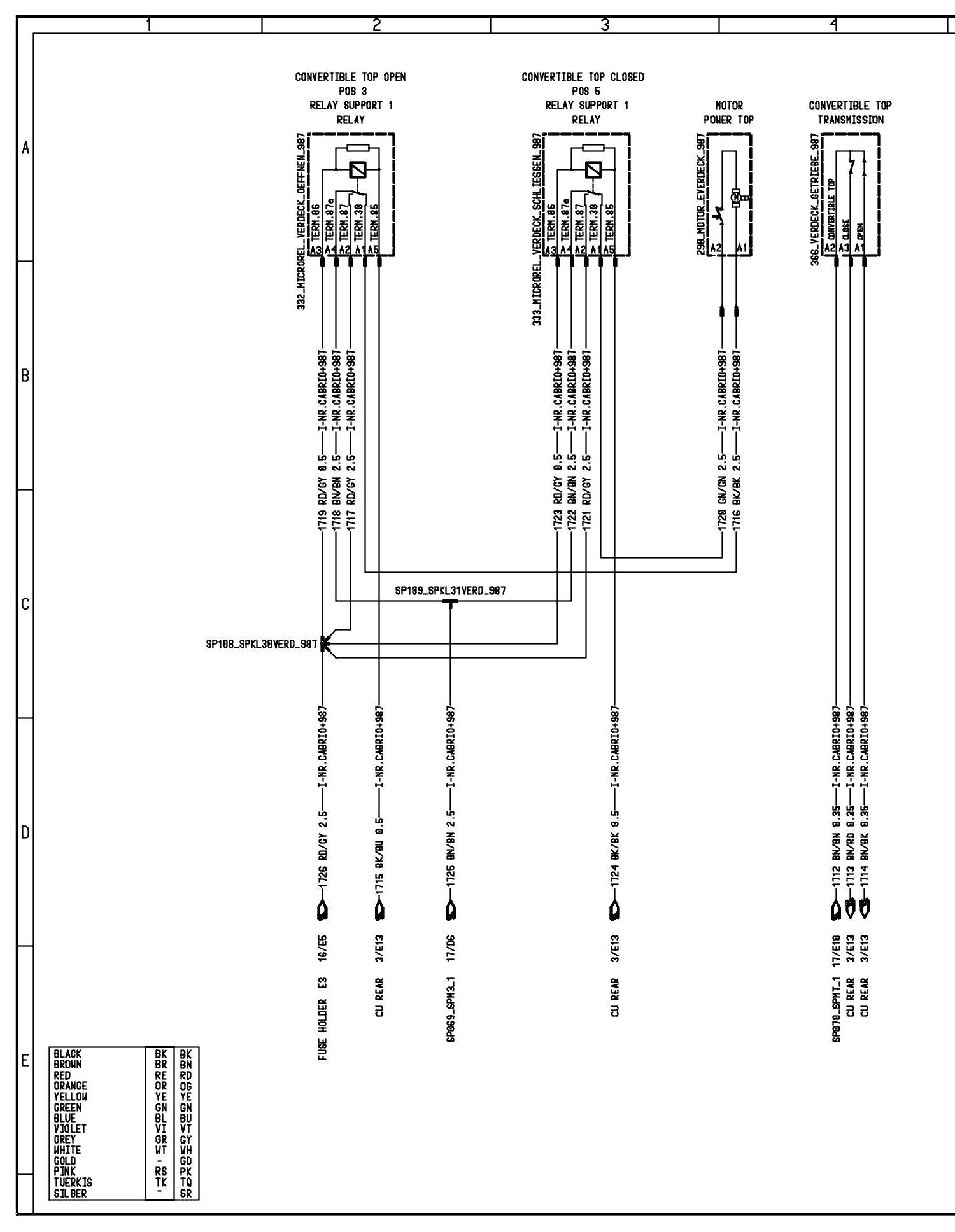

Roof System 987 - Sheet 15A (Part 1):

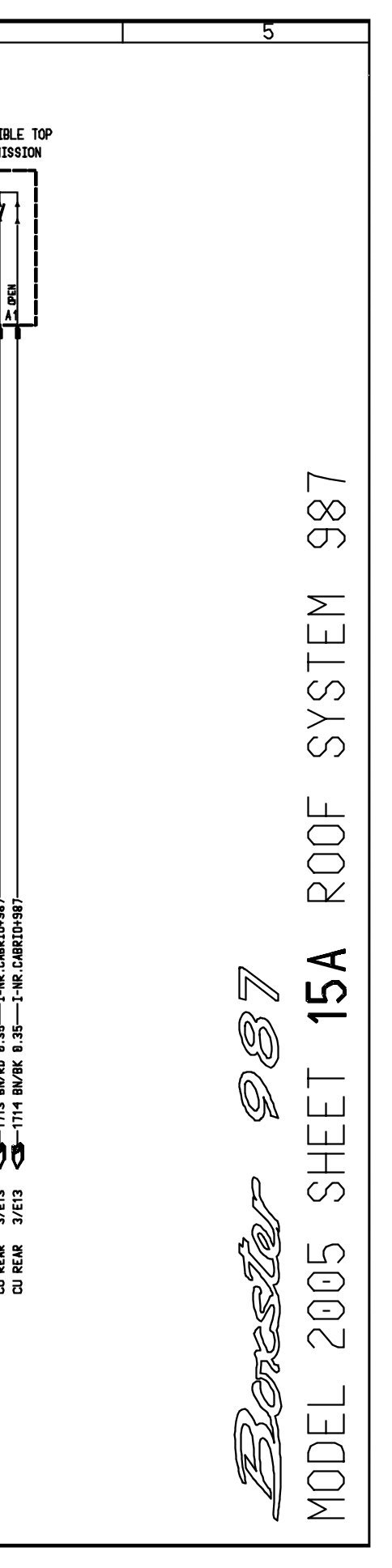

Roof System 987 - Sheet 15A (Part 2):
