Power Supply - Sheet 16
Power Supply - Sheet 16

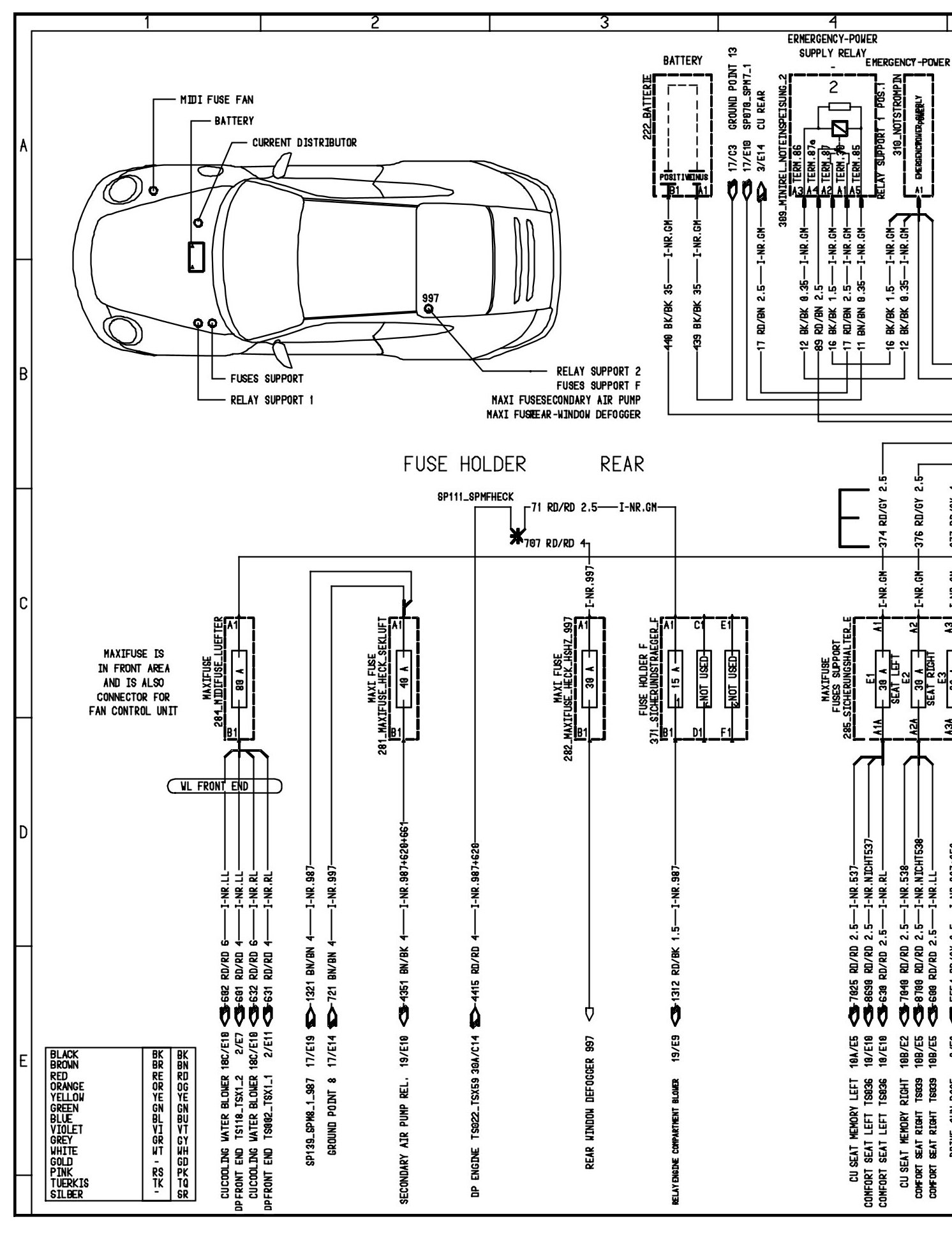

Power Supply - Sheet 16 (Part 1):

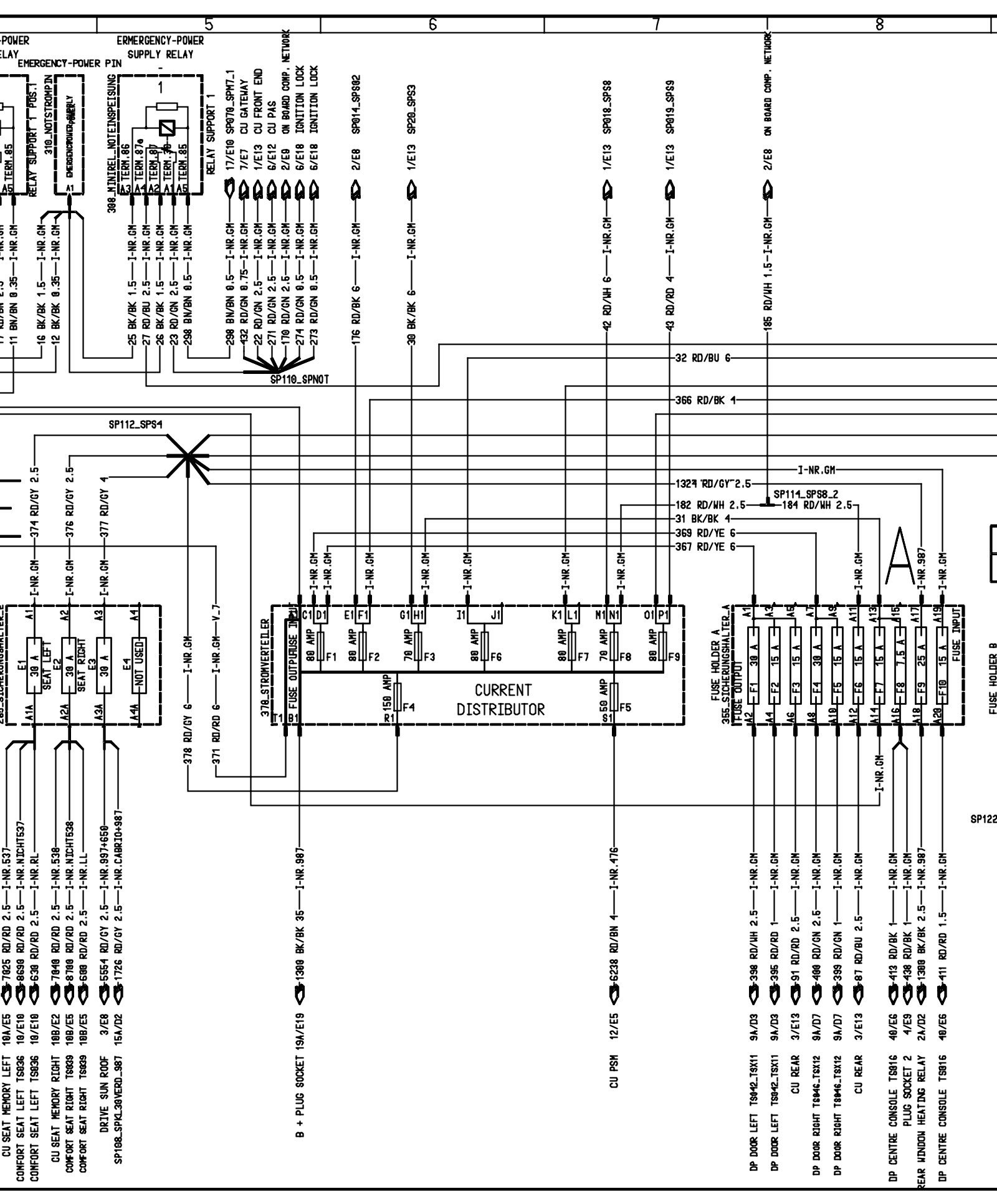

Power Supply - Sheet 16 (Part 2):

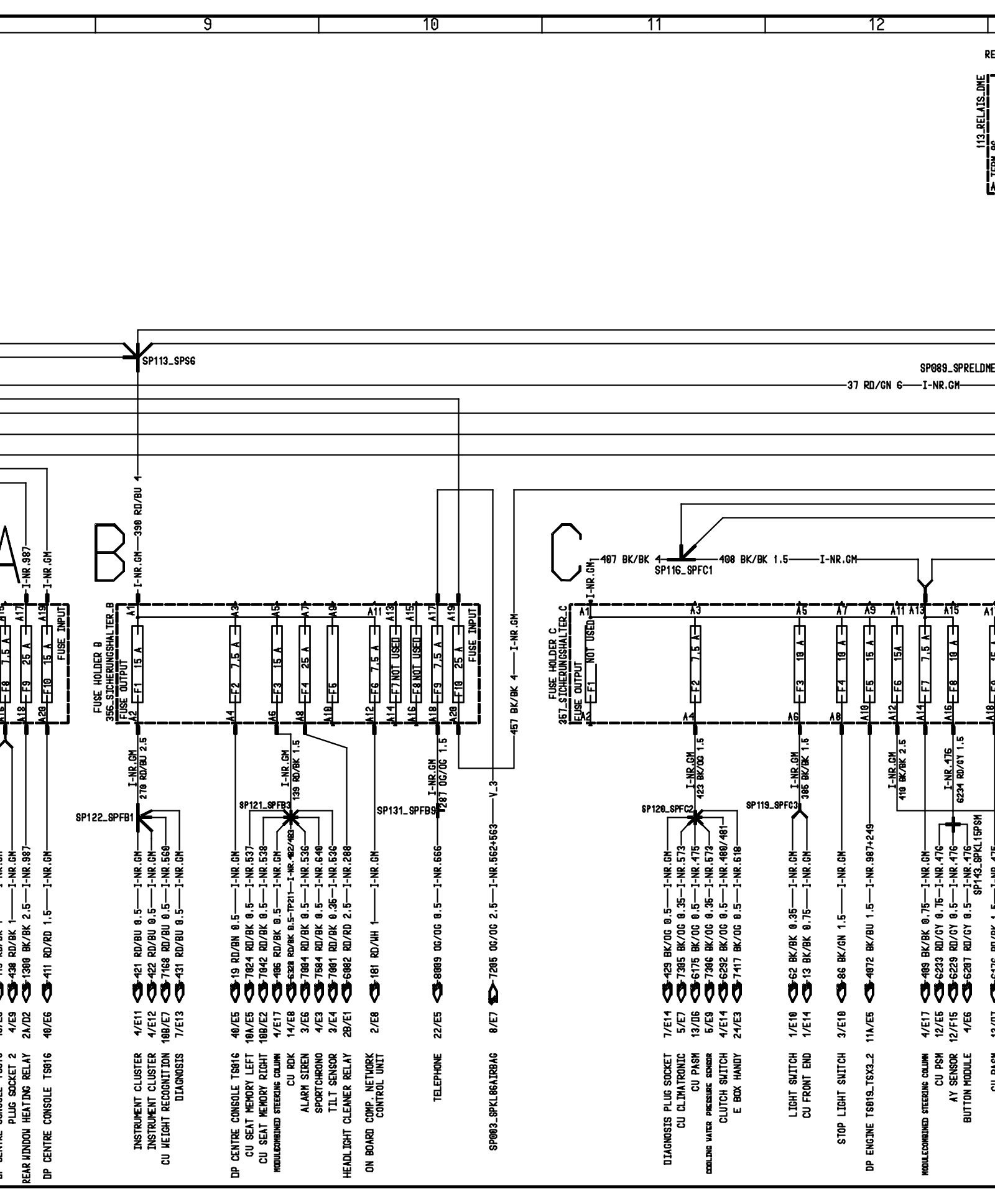

Power Supply - Sheet 16 (Part 3):

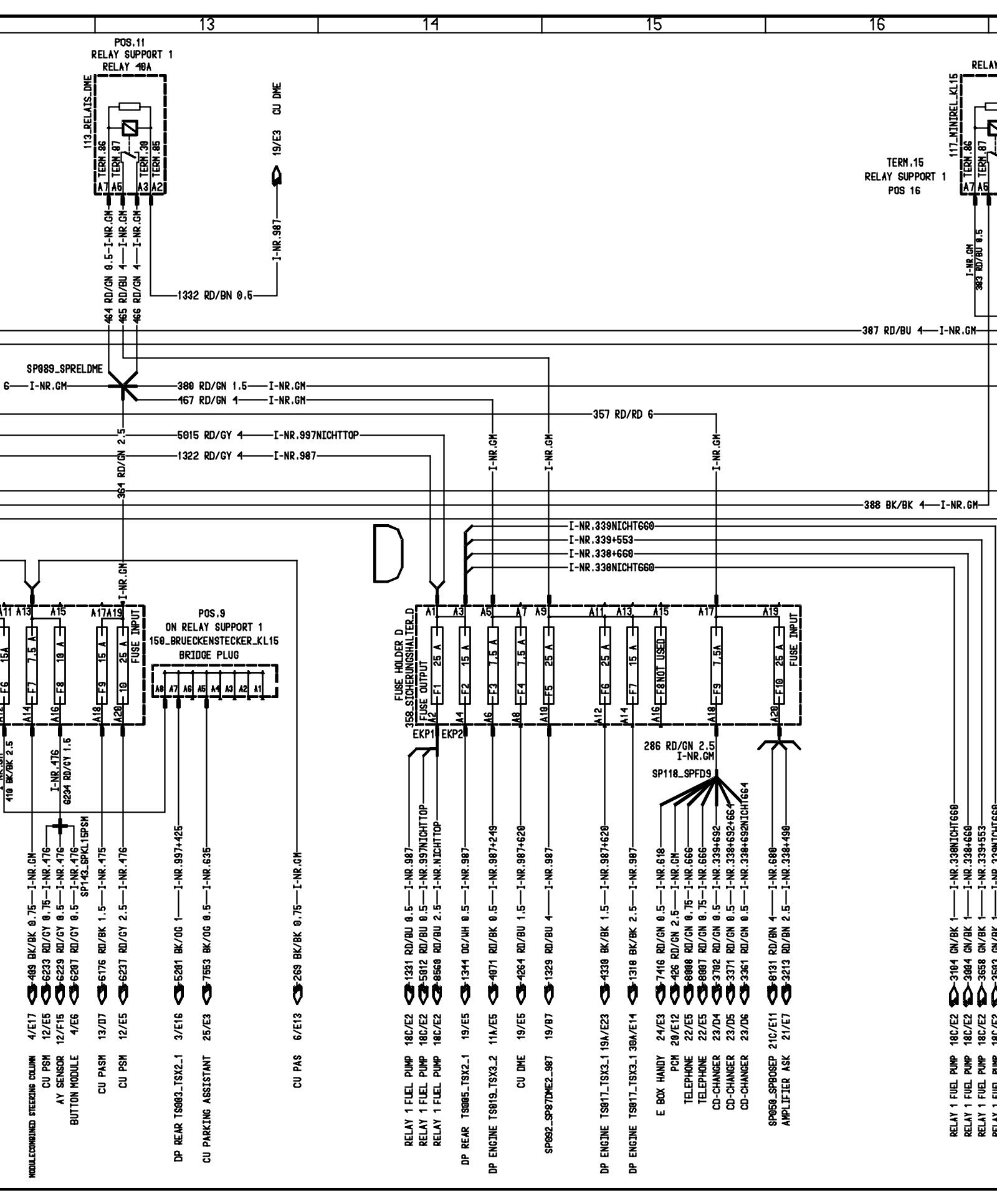

Power Supply - Sheet 16 (Part 4):

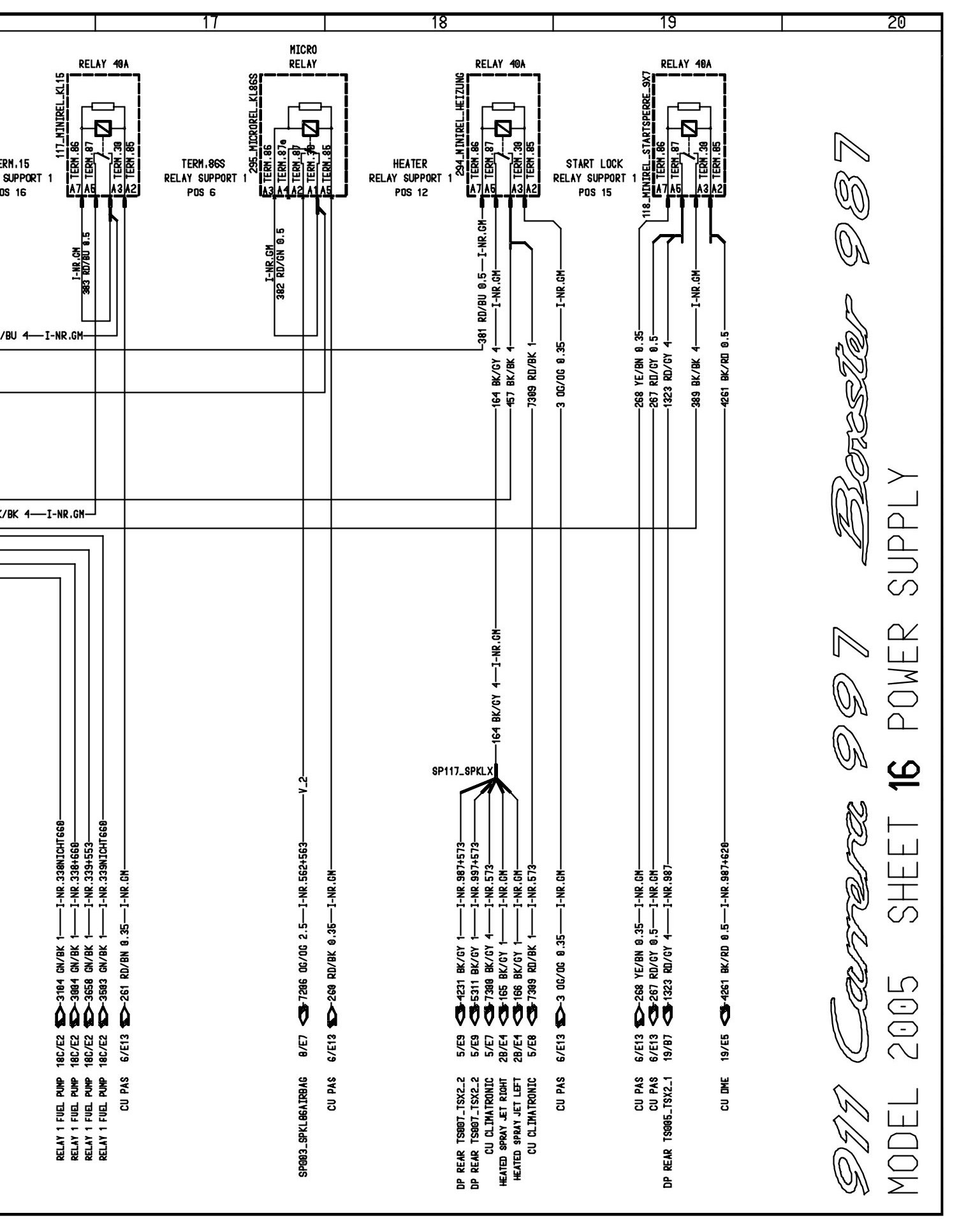

Power Supply - Sheet 16 (Part 5):
