Make-Up Mirror - Sheet 2D
Make-Up Mirror - Sheet 2D

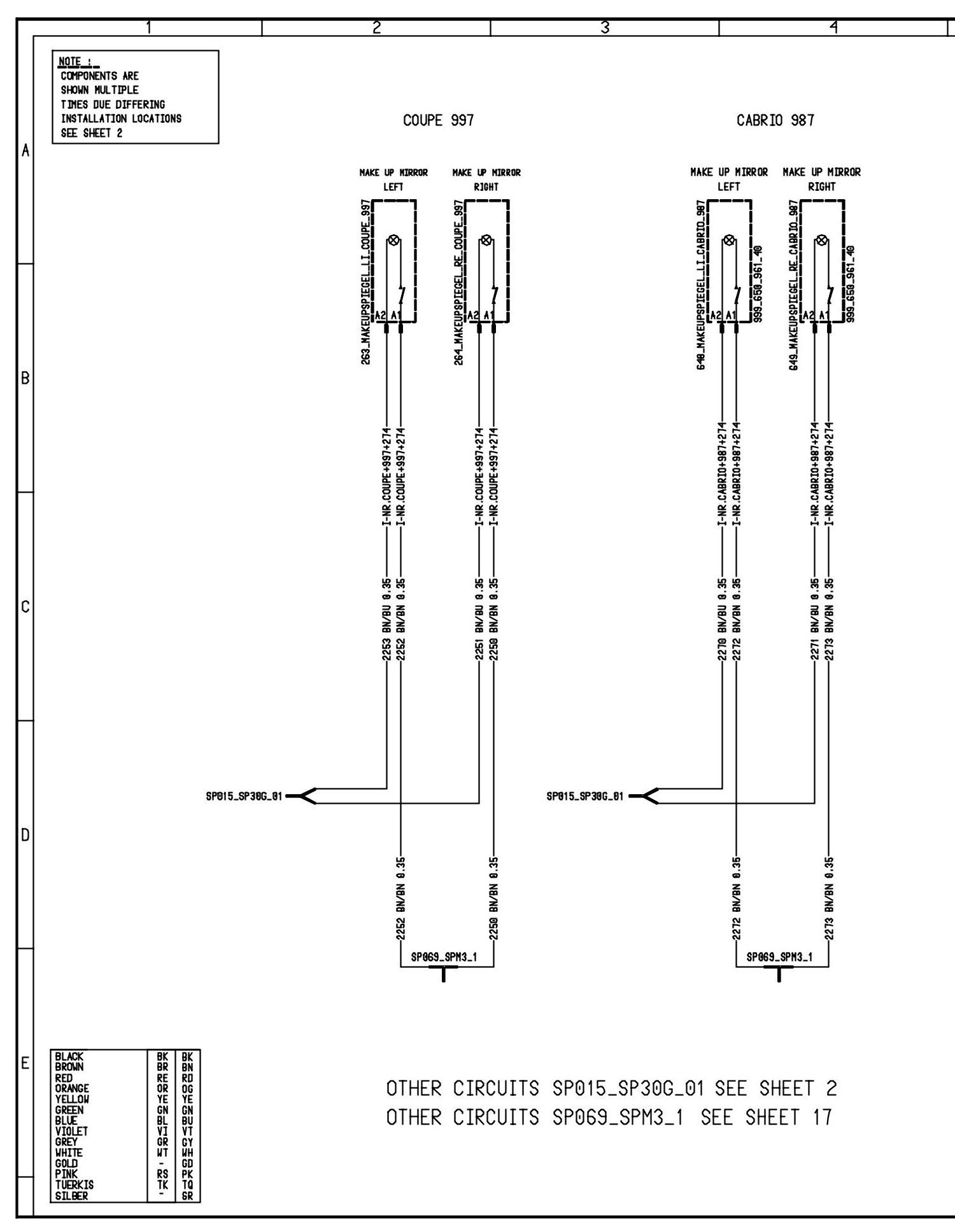

Make-Up Mirror - Sheet 2D (Part 1):
Make-Up Mirror - Sheet 2D (Part 2):
