MFI_Motor 987 - Sheet 19A

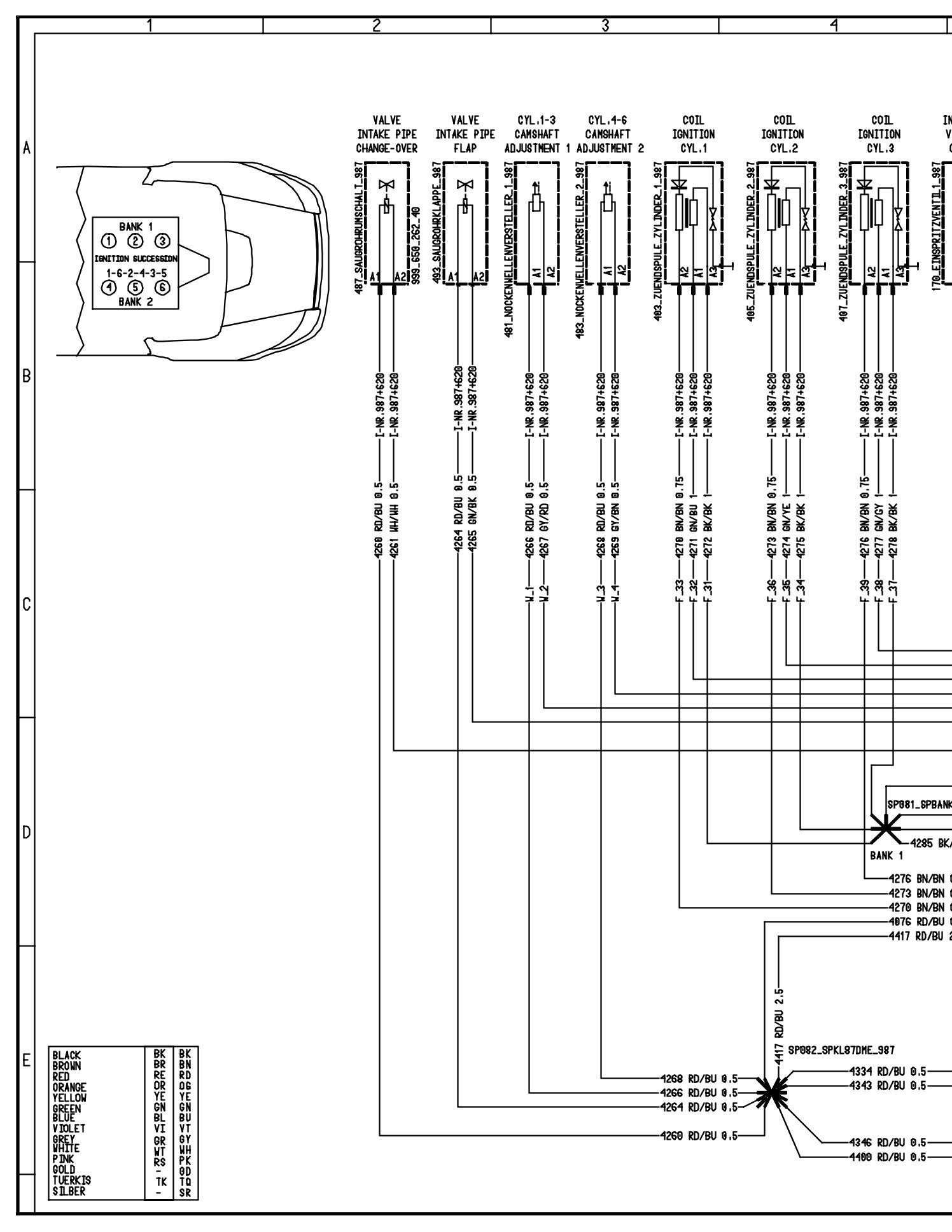

MFI_Motor 987 - Sheet 19A (Part 1):

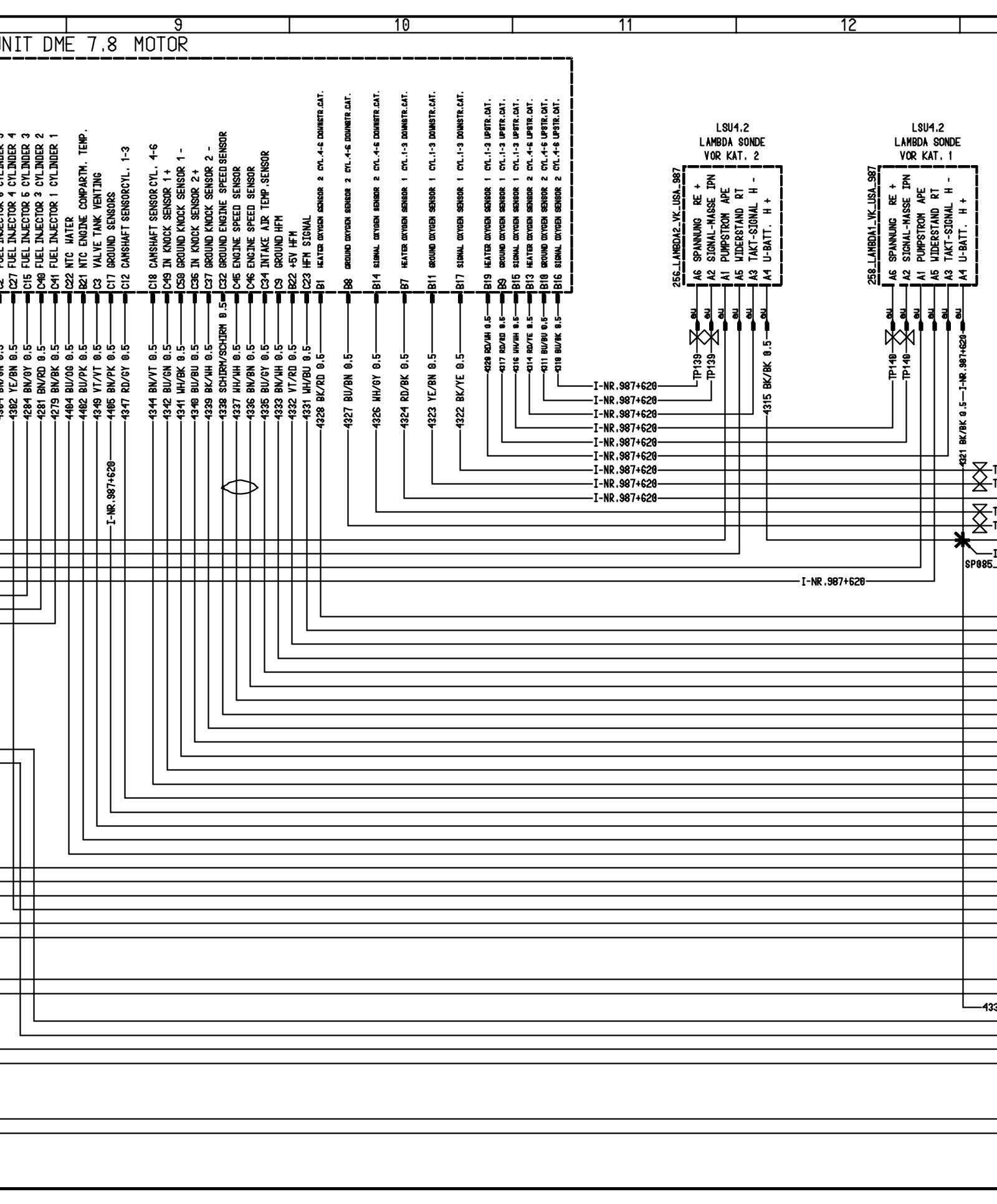

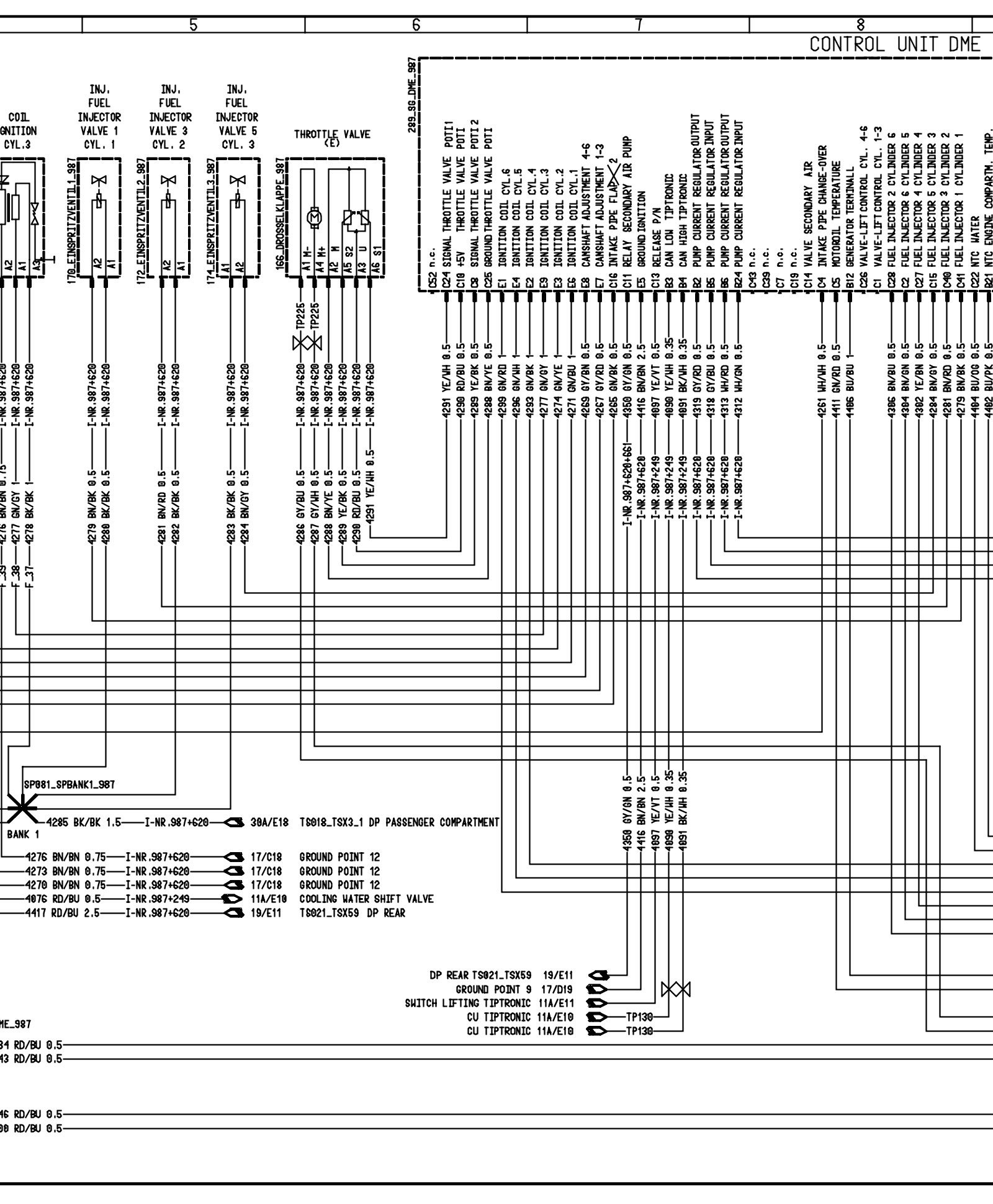

MFI_Motor 987 - Sheet 19A (Part 2):

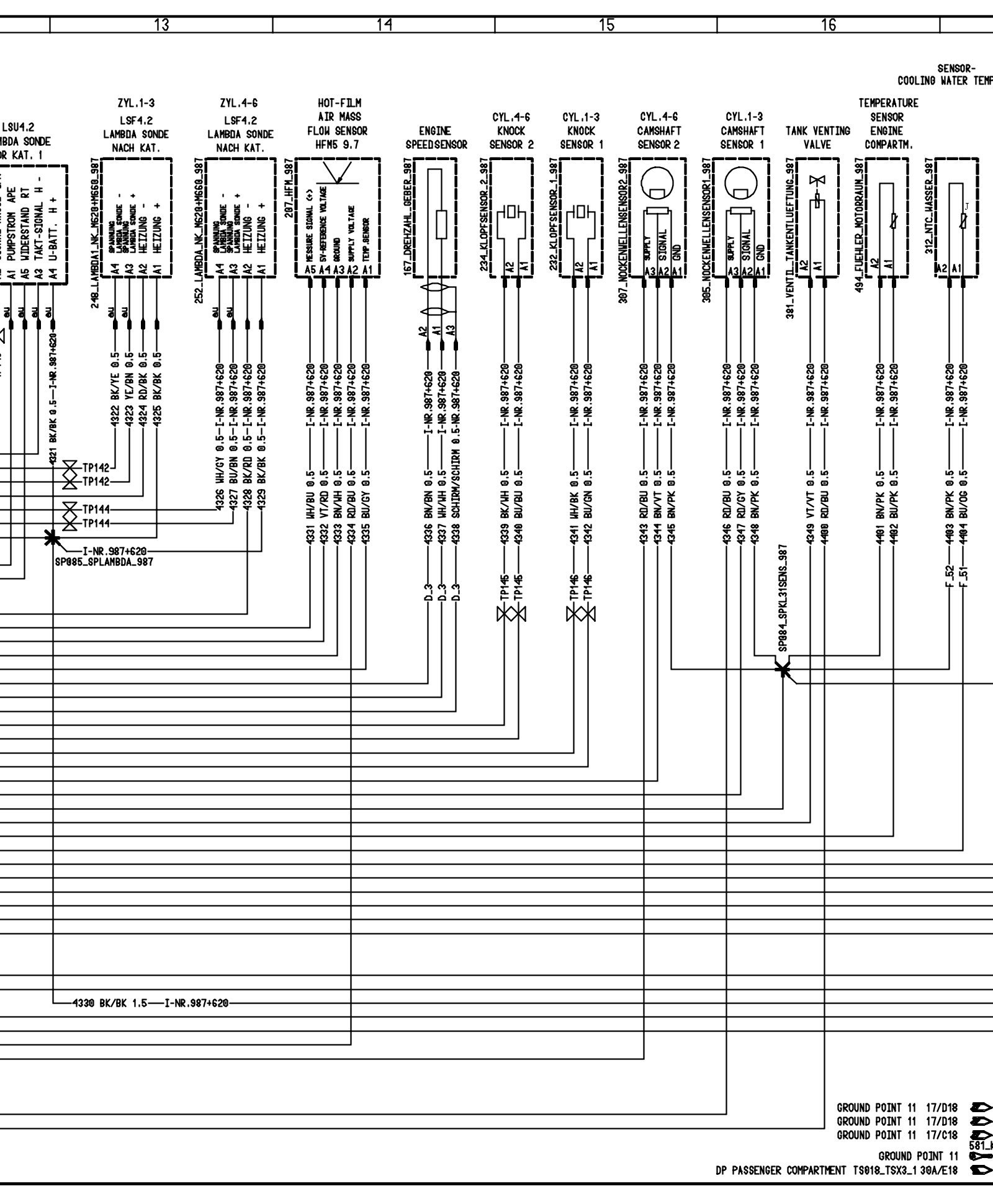

MFI_Motor 987 - Sheet 19A (Part 3):

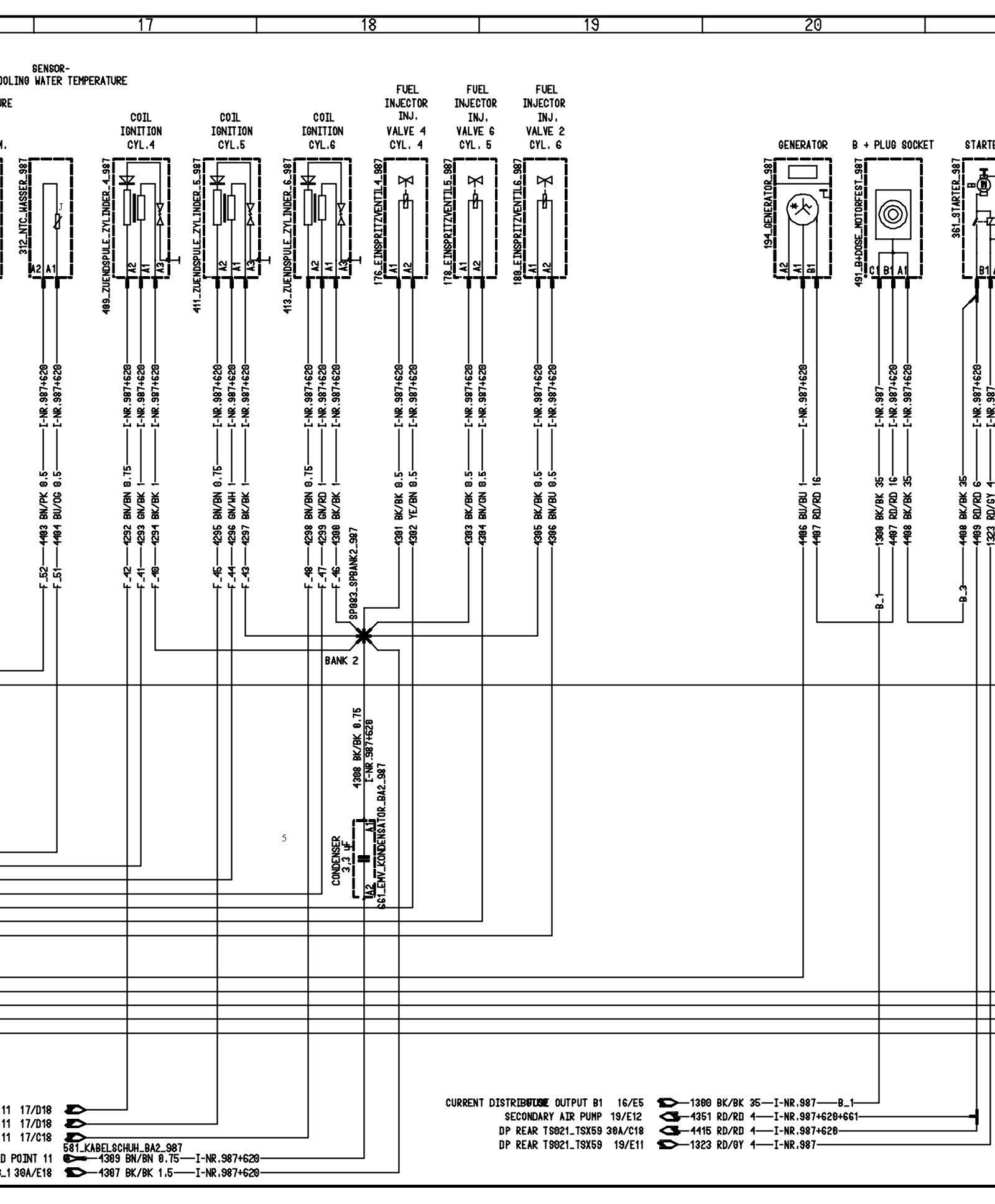

MFI_Motor 987 - Sheet 19A (Part 4):



MFI_Motor 987 - Sheet 19A (Part 5):

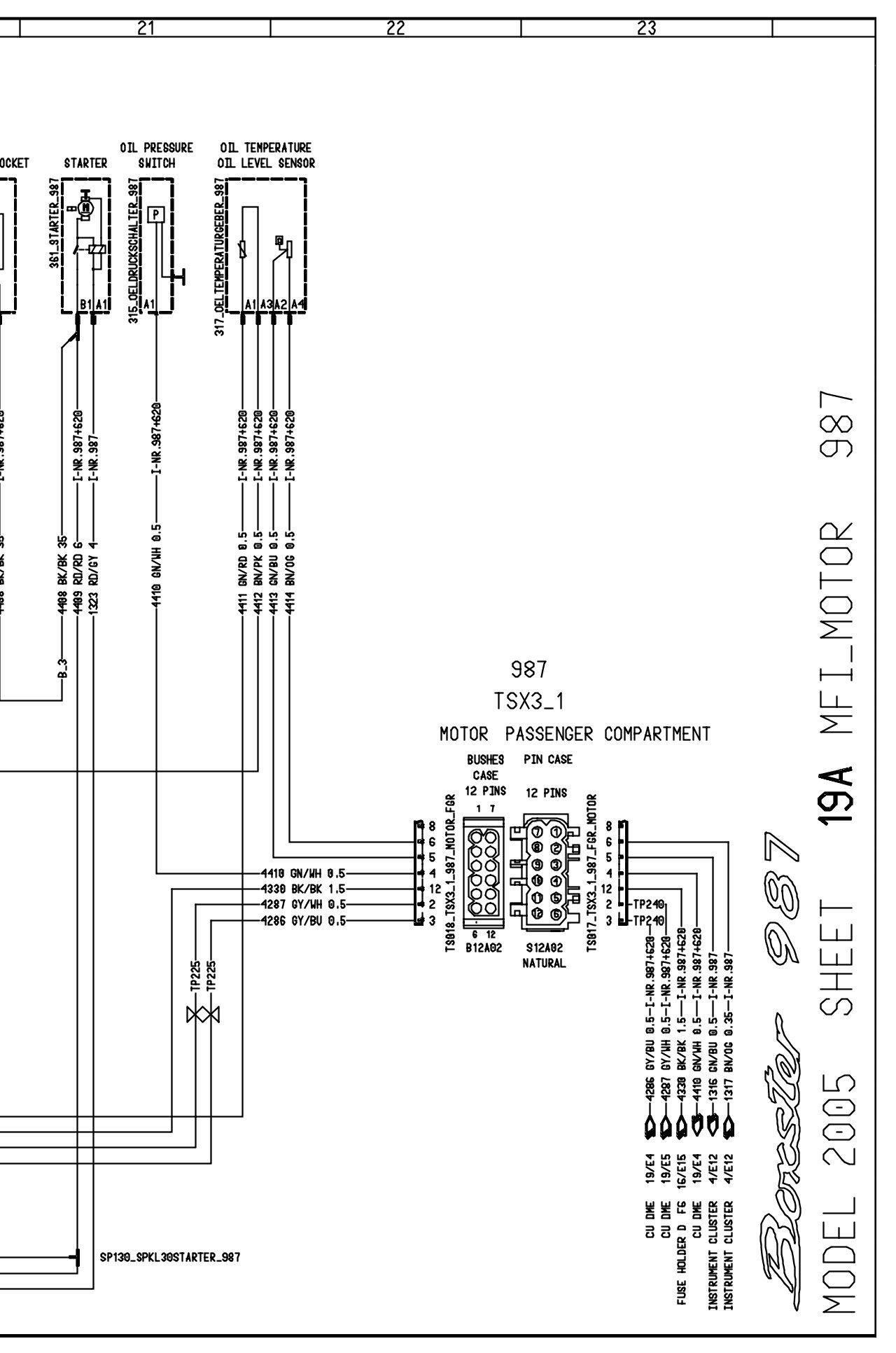

MFI_Motor 987 - Sheet 19A (Part 6):
