MFI Vehicle 987 - Sheet 19
MFI Vehicle 987 - Sheet 19

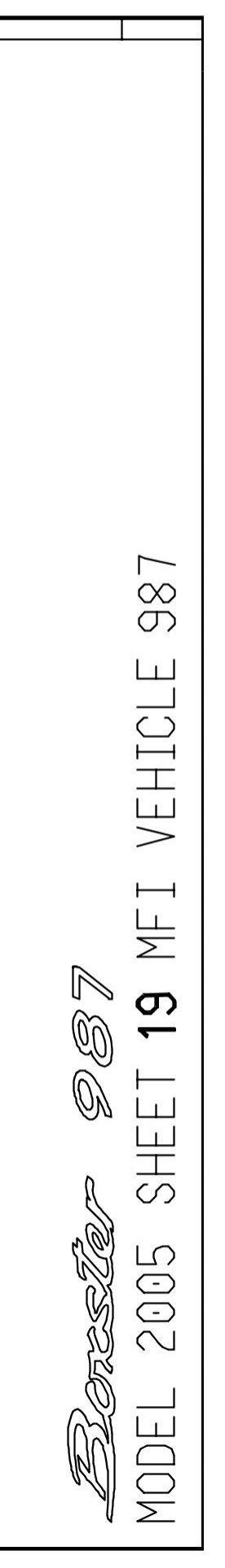

MFI Vehicle 987 - Sheet 19 (Part 1):

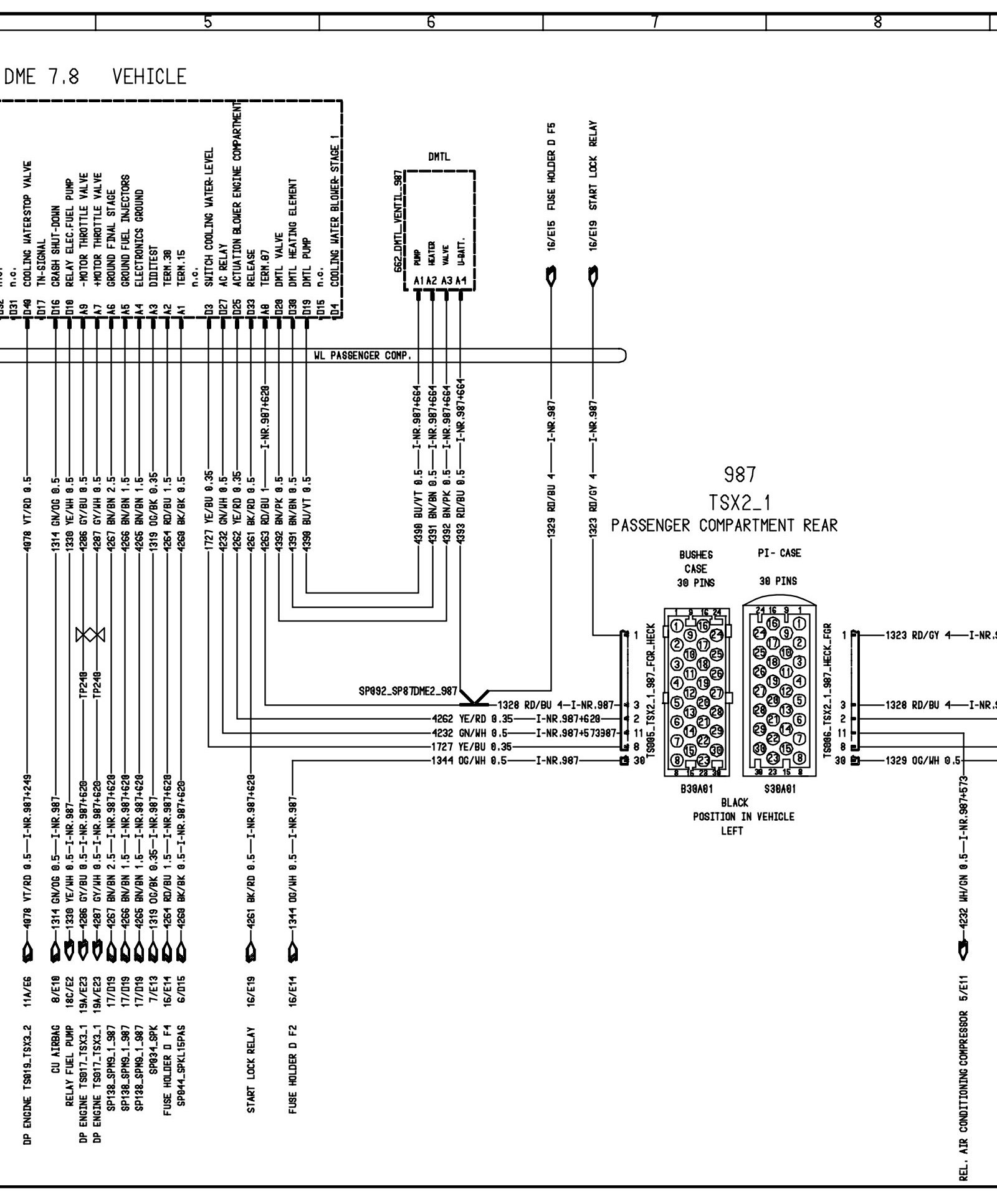

MFI Vehicle 987 - Sheet 19 (Part 2):

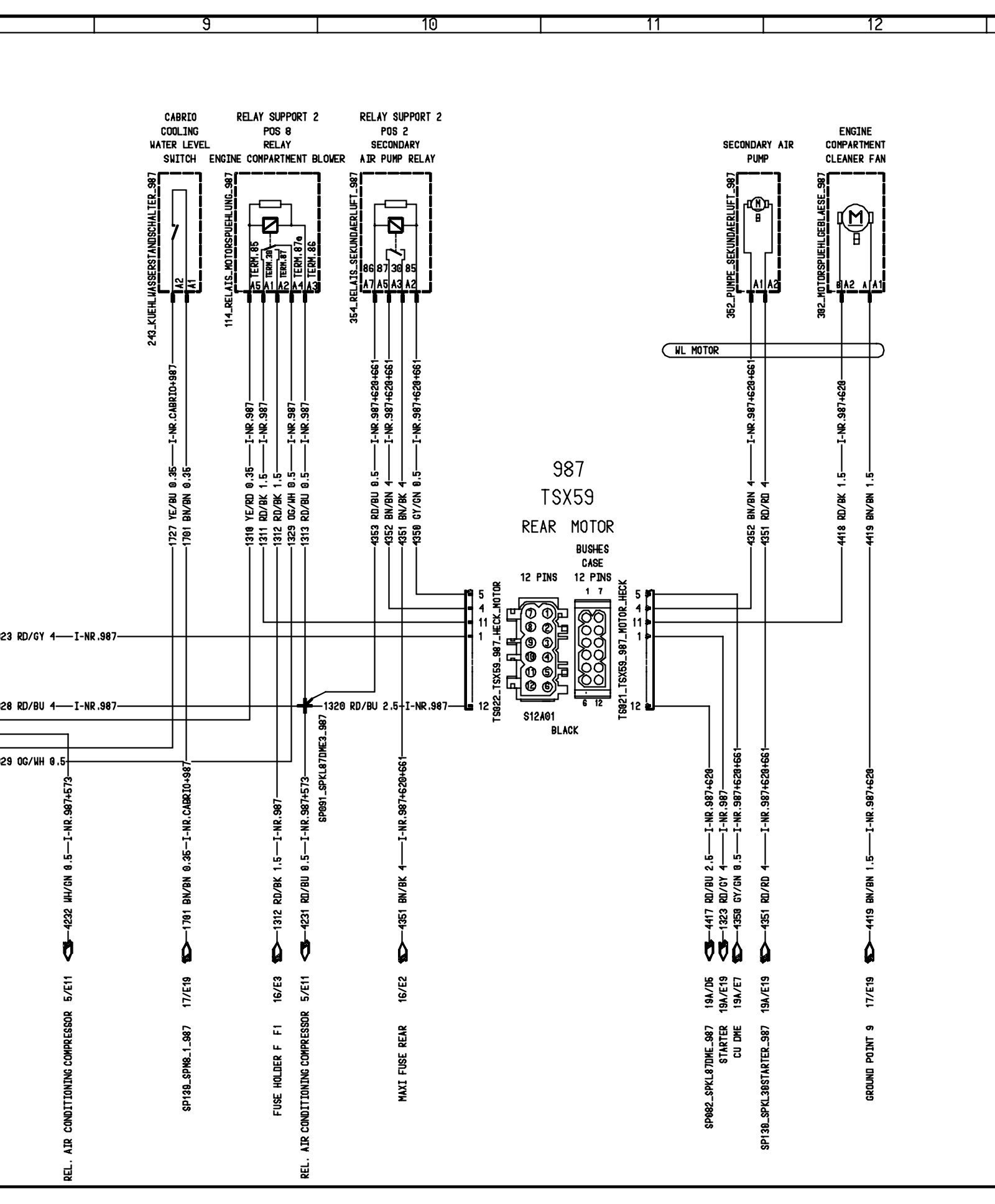

MFI Vehicle 987 - Sheet 19 (Part 3):

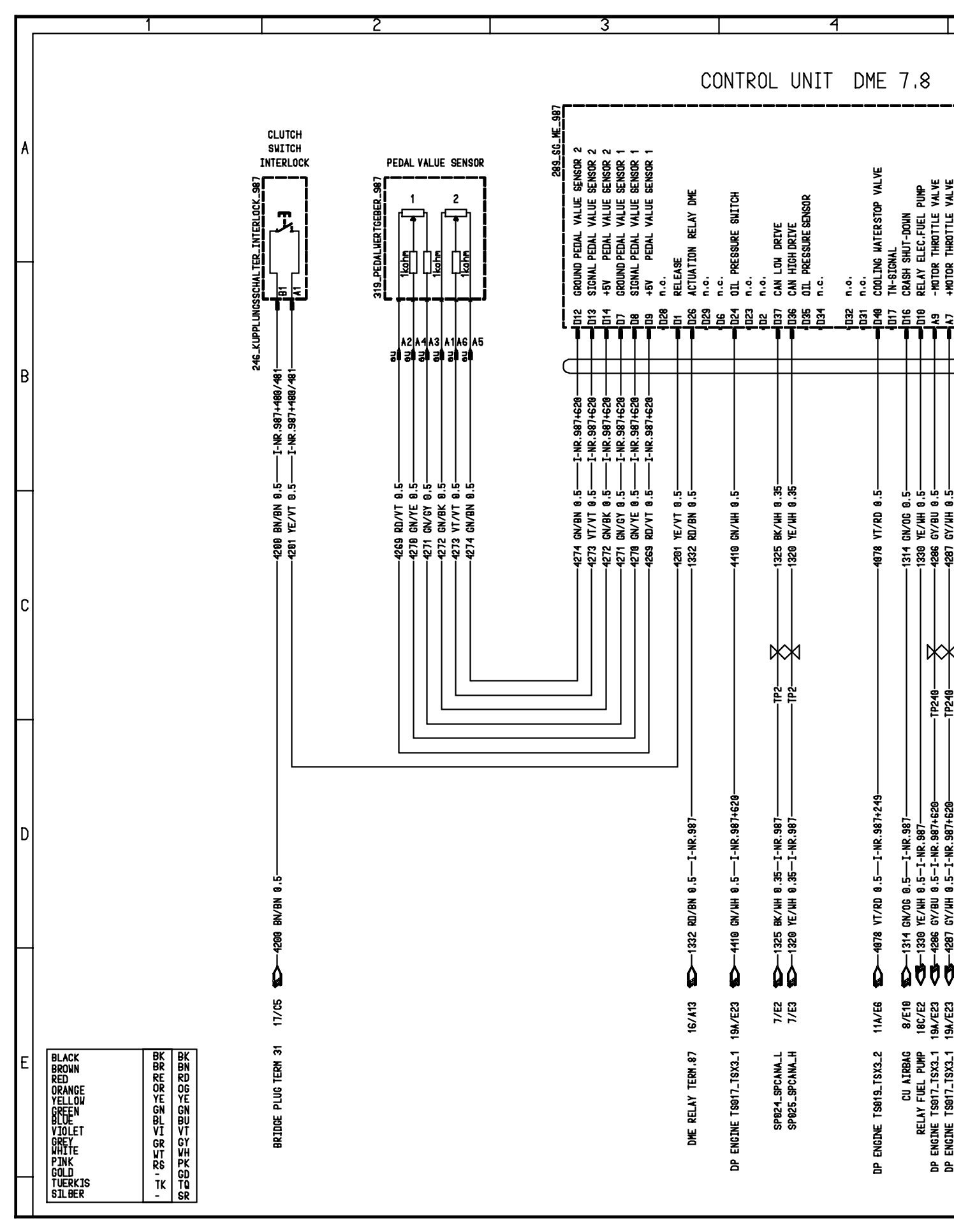

MFI Vehicle 987 - Sheet 19 (Part 4):
